BenQ Q7T3-FP737S User Manual

Q7T3(AUO panel) LCD Monitor Service Guide
Engineering Specification
9
1
5
6
10
11
15

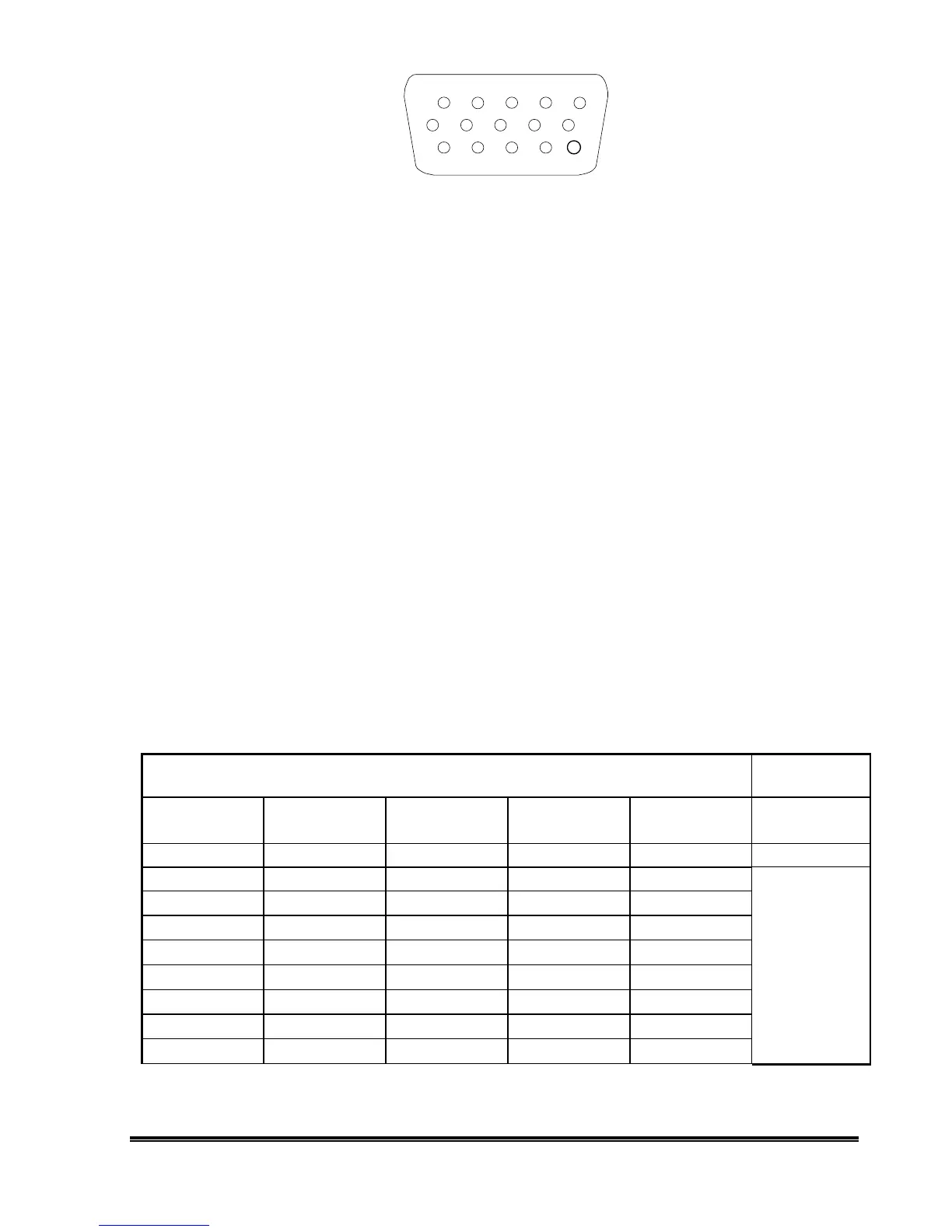

15pin D-sub female
1 RED VIDEO
2 GREEN VIDEO
3 BLUE VIDEO
4 GROUND
5 GROUND
6 RED GROUND
7 GREEN GROUND
8 BLUE GROUND
9 PC5V
10 SYNC GROUND
11 GROUND
12 SDA
13 H SYNC (H+V)
14 V SYNC
15 SCL
Cable length:
1600mm +/- 20mm
3.1.2 Video signals:
RGB separate, Analog 0.7Vp-p/75 Ohm
3.1.3 Sync signal:
- H/V separate, TTL level
- H/V composite, TTL level
3.2 Function
3.2.1 Support timing
This Interface board is designed to operate in any of the following video mode
.
Incoming display mode(Input timing)
Multi-scan
operation
Resolution
Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
Dot Clock
Frequency (MHz)
Remark
Actual display
resolution
640x350 31.47(P) 70.08(N) 25.17 DOS 1280x943
*720x400 31.47(N) 70.08(P) 28.32 DOS
640x480 31.47(N) 60.00(N) 25.18 DOS
640x480 35.00(N) 67.00(N) 30.24 Macintosh
640x480 37.86(N) 72.80(N) 31.5 VESA
640x480 37.50(N) 75.00(N) 31.5 VESA
800x600 37.88(P) 60.32(P) 40.00 VESA
800x600 48.08(P) 72.19(P) 50.00 VESA
*800x600 46.86(P) 75.00(P) 49.50 VESA
full screen
1280x1024
