2 Universal Cellular Communicator
N. Parts
1Cover
2Base
3 Indicator lights (LED)
7 Closing screw (parked position)
8 Base mounting holes (4)
9 Cover hinge
10 Antenna cable hole
11 2700 mAh rechargeable battery (optional): versions
with housing only
12 Wall tamper device
13 Hole for wall tamper device fixing
14 SIM holder
15 PC-LINK connector
16 Programming jumpers: see “Description of jumpers” on
page 8
17 USB port: versions with housing only
18 Tamper contact
19 Terminal boards
20 Electronic board locator pins
21 JP2 current draw limiter jumper (versions with housing
only): see “Description of jumpers” on page 8
22 Battery connector: versions with housing only
23 ANT5-02 adapter cable
24 Adapter cable nut
25 Integrated antenna: versions with housing only
26 Hole for antenna cable on metal bracket
27 Metal bracket
28 ANT5-02, GSM antenna with 2 m cable and SMA
connector (optional)
29 GSM antenna with 2 m cable and MMC connector
30 Electronic board mounting holes (4)
N. Parts

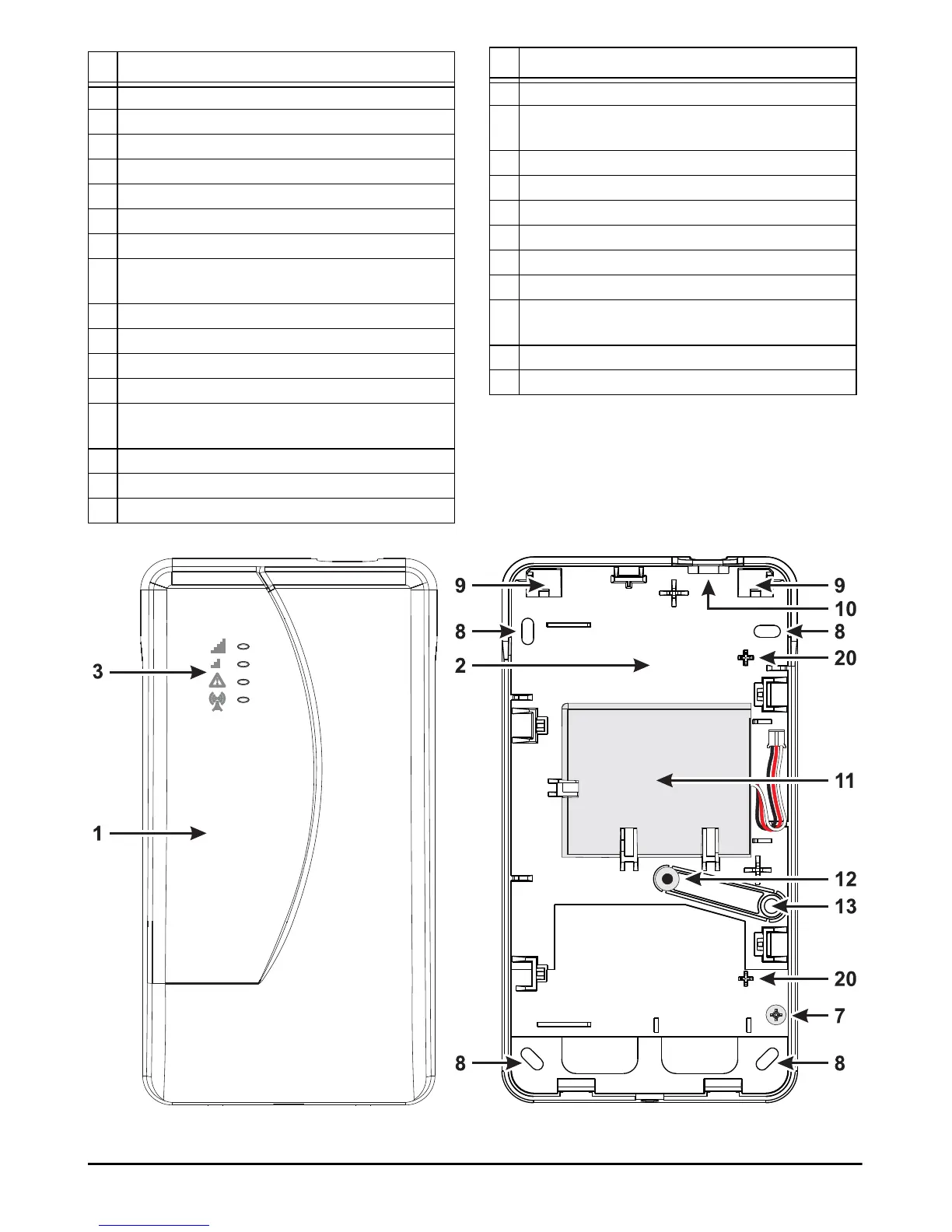

Figure 1 – Identification of parts: version with housing.
