BENTONE

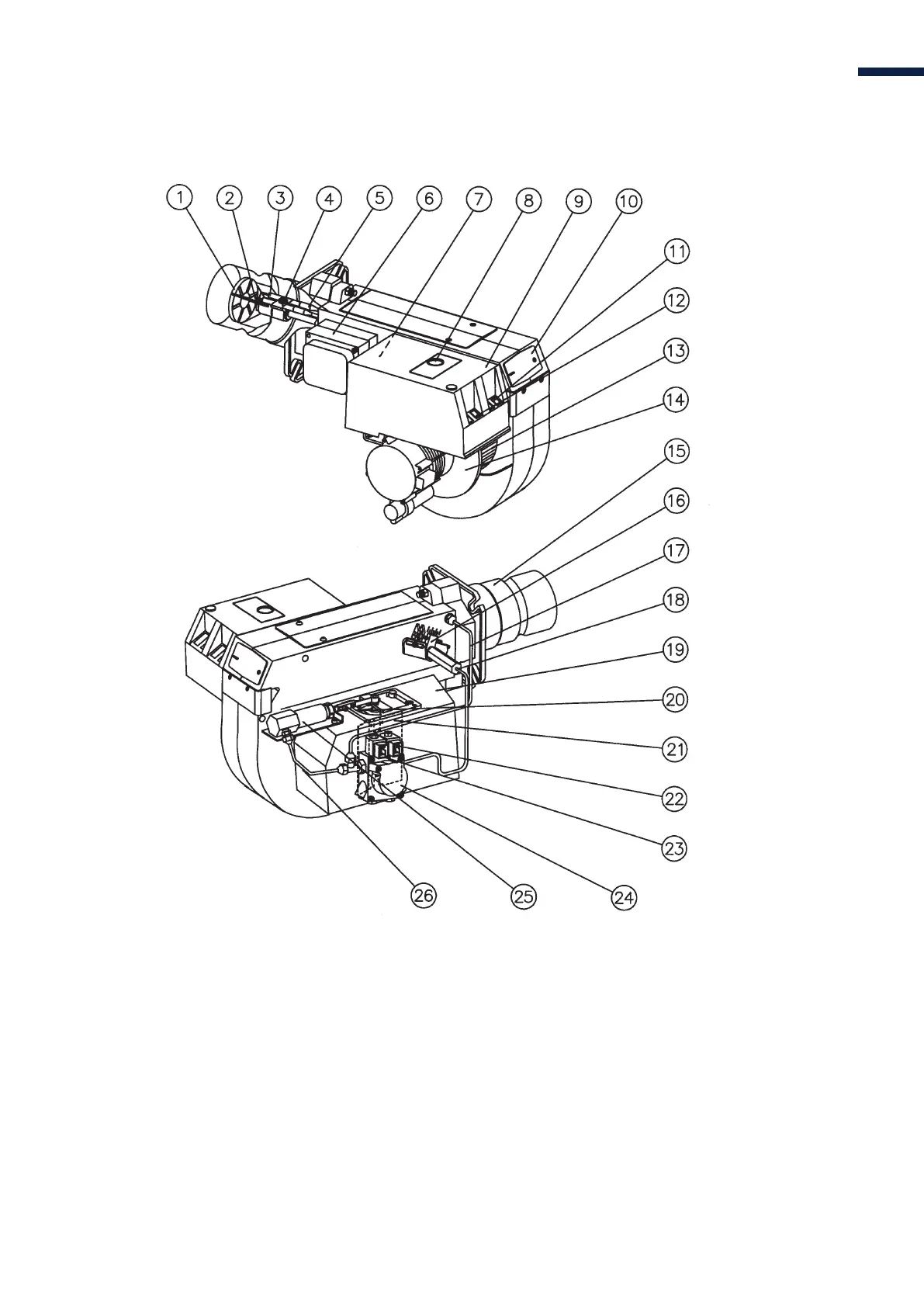

2.10 Components
1. Brake plate
2. Nozzle
3. Ignition electrodes
4. Nozzle assembly
5. Ignition cable
6. Ignition transformer
7. Photo cell
8. Reset button
9. Electric panel
10. Cover, inspection glass
11. Indicating lamp
12. Change-over switch
13. Fan wheel
14. Motor
15. Flame tube
16. Nozzle assembly adjustment
17. Connecting pipe, Stage 2
18. Connecting pipe, Stage 1
19. Air intake
20. Scale, air damper
21. Air damper
22. Solenoid valve
23. Solenoid valve
24. Pump
25. Adjustment device
26. Connecting pipe, pump-
adjustment device
