Measurements according to EN 15036-1:2006
Alt.1 The noise level of the burner can be reduced by equipping the burner with
silencer. Installation must be done so it does not prevent air supply to the
burner.
Alt.2 The burner’s noise level can be reduced by connecting the burner’s air
intake to the air duct that opens into an appropriate location. Installation
must be done so it does not prevent air supply to the burner.
2.5 Basic settings - HVO/XTL
B 40 A2.2H
Main supply
1)
230V, 1~, 3.0/3.1A, 50Hz, IP20
Max fuse rating 6.3A
El
min
preheater excluded 1.60A, 368W
El
max
preheater excluded 2.20A, 506W
P
SB
0
NO
X
-class 4
NO
X
(GCV) preheater excluded 119mg/kWh
Sound power (dBA) L
WA
85dBA
1)
Max operating current, see data plate.
Flame signal
When operating at high power or low air excess and HVO/XTL is used as fuel,
the ame signal may deteriorate (blue ame), the signal lamp in the reset
button ashes green.
By lowering the air velocity or changing the ame detector to QRC, the ame
signal can be improved.
0
20
40
60
80
100
0
2
4
6
8
10
100 140 180 220 260 300 340
160303-927-1
kW

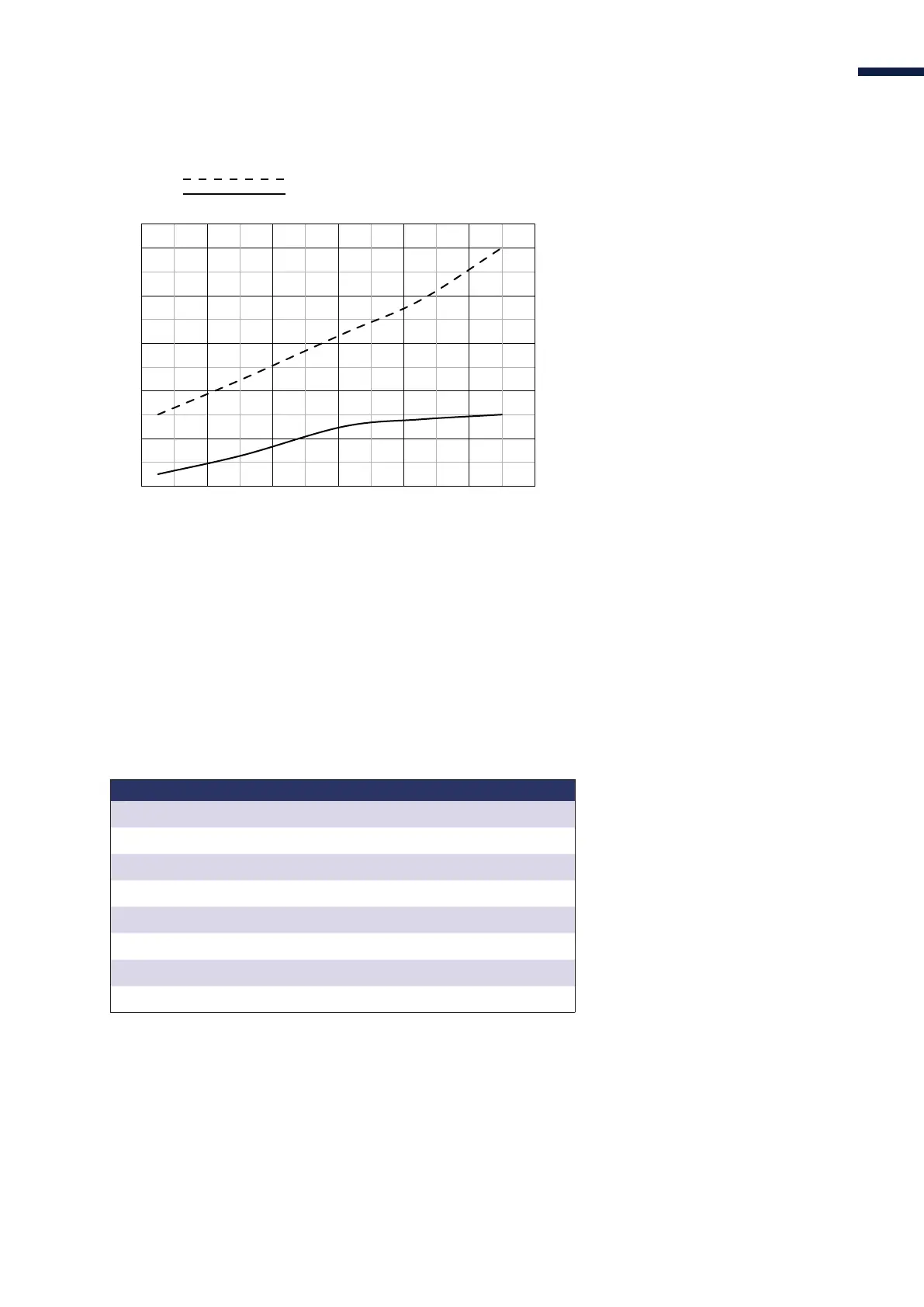

Air settings
Nozzle assembly
Scale
1
Burner output
Air
2
<˚
1
Scale nozzle assembly and air damper without damper motor.
2
Settings air damper with damper motor.
2.6 Technical specication
