5. Mounting

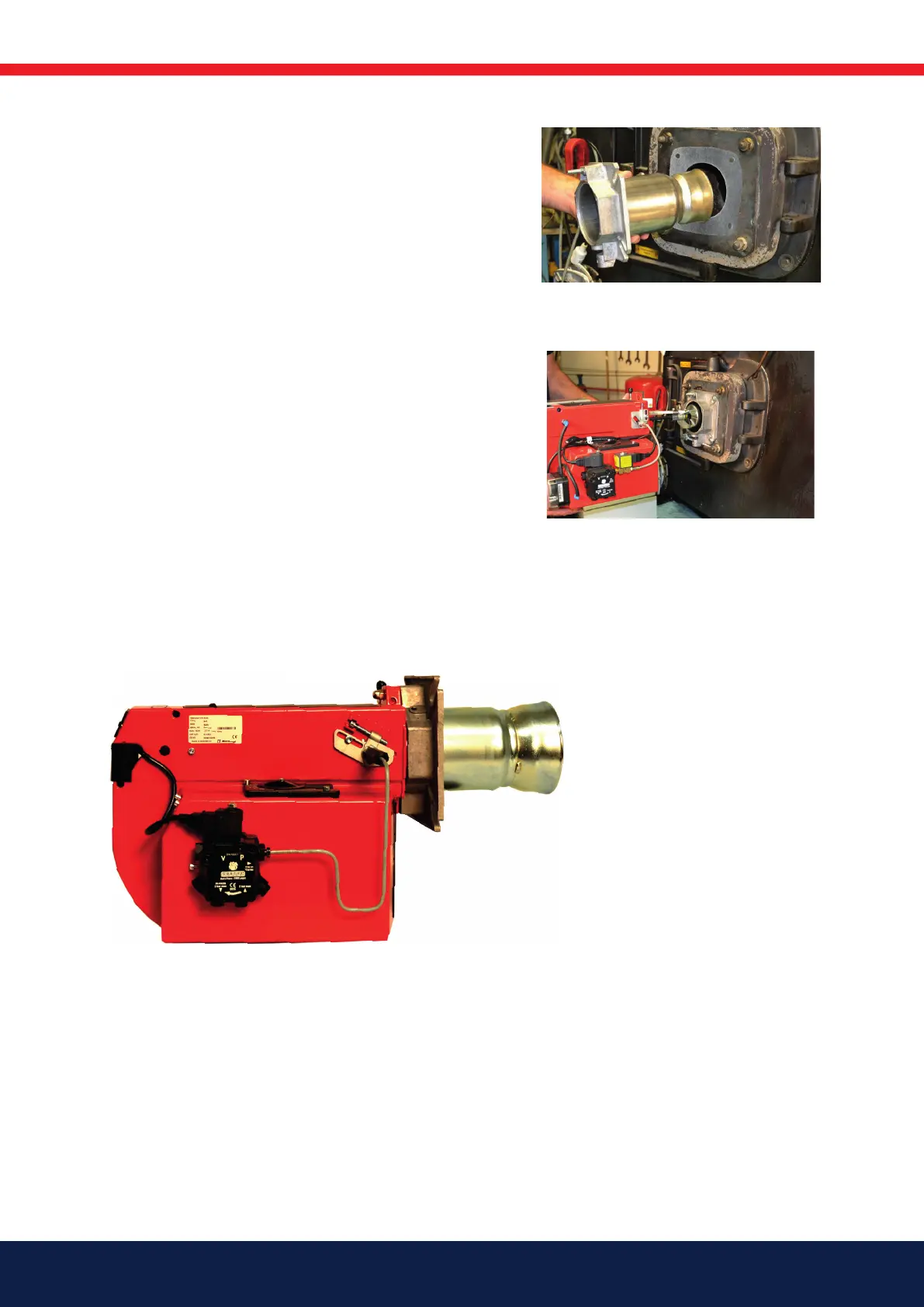

1. Remove fan housing from xing ange.
2. Remove the brake plate from the oil line.
3. Install the selected nozzles, (see Technical data).
4. Install the brake plate on the oil line.
5. Remove the ame tube from the ange.
6. Install the ange with gasket on the boiler.
7. Install ame tube, be sure to install the drainage hole
downwards (not available on all ame tubes) so that any
oil spills can drain out.
8. Insulate between ame tube and boiler door for reduced
heat radiation.
9. Install the fan housing on the ange and lock with nuts.
10. Connect oil lines to the pump.
11. Connect the burner electrically.
5.1 Check oil line seals
When the burner has been installed and put into operation, the
tightness of the various coupling elements should be checked, in
case of leakage - retighten the coupling elements.
