DESCRIPTION
171 205 07 95-01

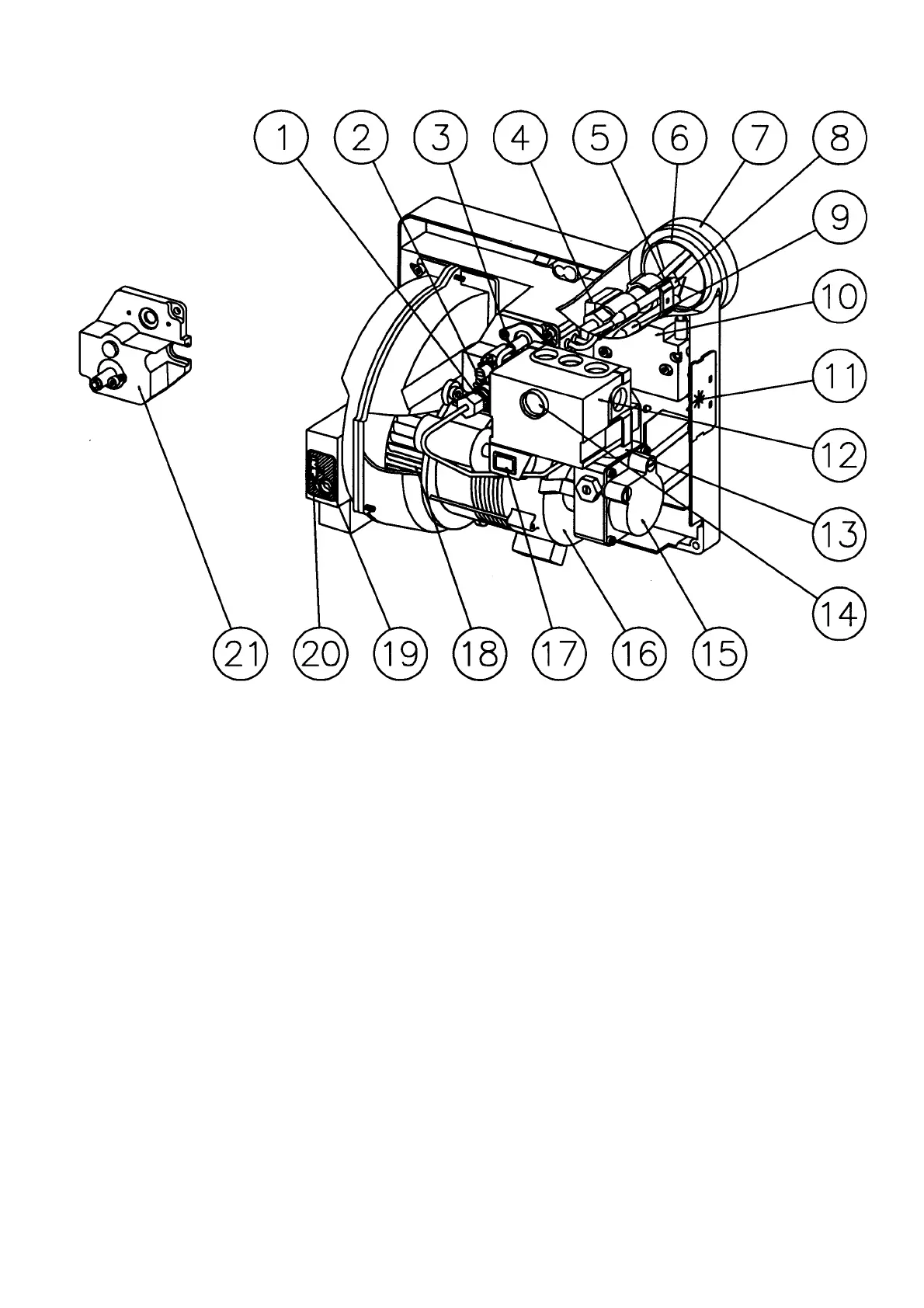

COMPONENTS
1. Scale, nozzle assembly
2. Nozzle assembly adjustment
3. Photocell
4. Preheater
5. Nozzle
6. Schrouded disc
7. Blast tube
8. Ignition electrodes
16. Motor
17. Indicating lamp, preheater
18. Fan wheel
19. Air regulation
20. Scale, air regulation
21. Cover, nozzle assembly
(fixed burner head)
9. Ignition cables
10. Ignition transformer
11. Electrical connection
12. Control box
13. Solenoid valve
14. Reset button
15. Pump
