MAINTENANCE OF OIL BURNER
Warning: Before doing any service switch off power at the main switch and cut off the oil supply.

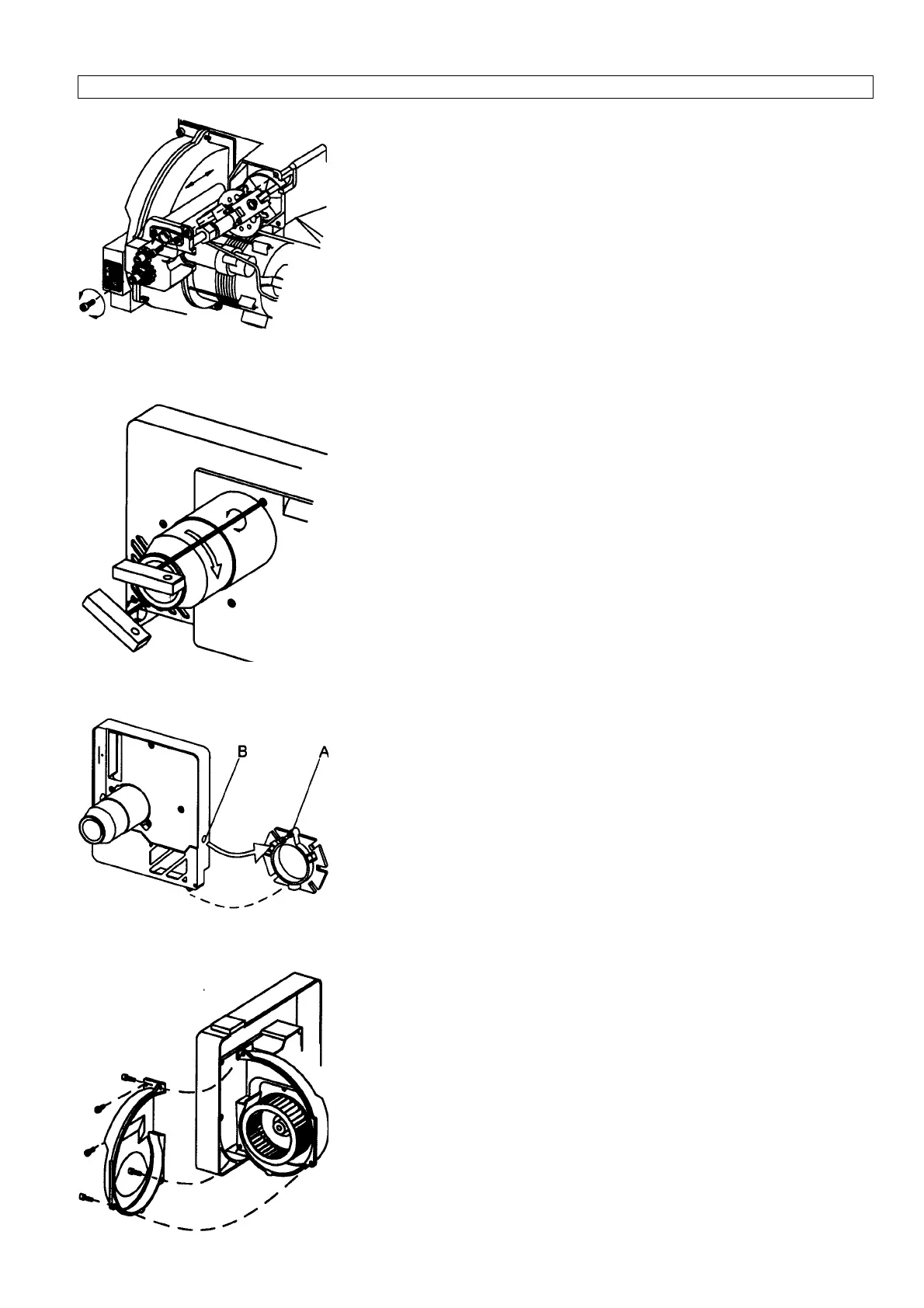

SERVICE OF BURNER HEAD
(alt. A)
1. Remove the cover.
2. Withdraw the photo resistor.
3. Loosen the connecting pipe.
4. Loosen two fixing screws of the
nozzle assembly cover.
5. Retract the nozzle assembly so
far that the ignition cables can be
removed from the ignition
electrodes.
6. Remove the nozzle assembly.
SERVICE OF BURNER HEAD
(alt. B)
1. Slacken retaining screws.
2. Remove the burner.
3. Loosen the two blast tube retaining
screws.
4. Turn the tube to the right and remove.
A
CLEANING OF FAN WHEEL
Loosen five fixing screws.
Remove the fan housing half.
SUSPENSION OF BURNER
A. Pin for suspension of burner.
B. Hole for suspension (also avail-
able on the right side).
171 305 14 95-01
