39
172 505 23 09-01
OPERATION AND ASSEMBLY INSTRUCTIONS
DMV 525/11

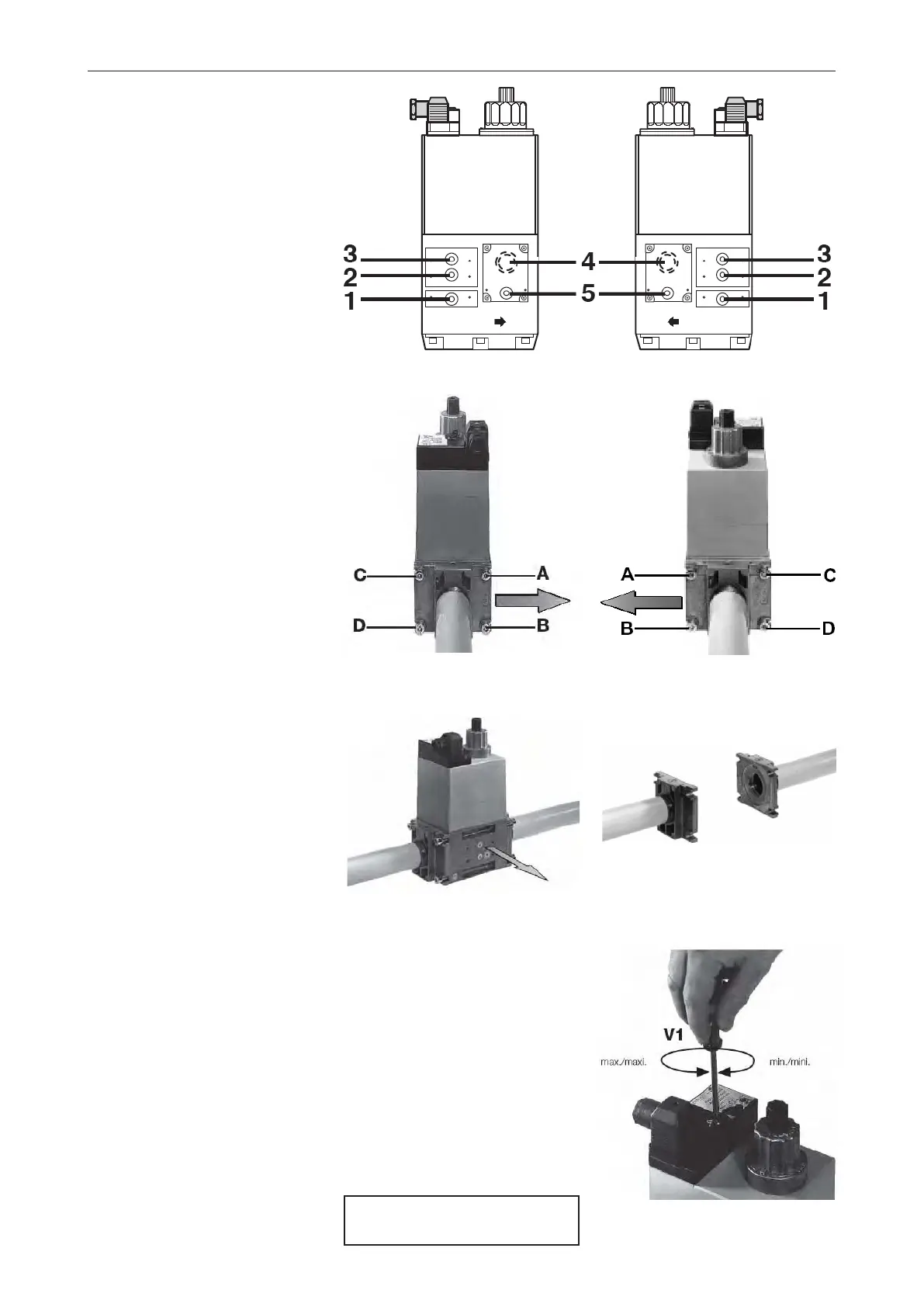

Pressure taps 1, 2, 3, 5 Sealing plug
Screw plugs 1,2,3 and 5 may also be
replaced by a measuring socket
G 1/8 DIN ISO 228.
2(3)
1. Loosen screws A and B do not
remove. Figs 1 and 2
2. Remove screws C and D. Figs 1
and 2
3. Remove double solenoid valve
between the threaded flanges.
Figs 3 and 4
4. After mounting, perform leakage
and functional tests.
6. DMV - D 507/11 - 525/11 DMV-
DLE 507/11 - 525/11 Main flow
setting only possible at V1!
Set main volume on open valve.
Set valve V1 during operation.
Check setting values continuously.
Smallest setting volume flow:
1.
2.
4.
5. 6.
3.
Vmin. / mini.> 0.1 x Vmax. / maxi.
°°
