Bentone BG600 - TECHNICAL DATA

9
172 215 60 05-01
Length of Flange Burner tube Burner tube
burner tube Measure B Measure C Measure D
BG650 BG650 BG650 BG650
Standard 1 316 286 185 162
Standard 2 416 386 185 162
Standard 3 516 486 185 162

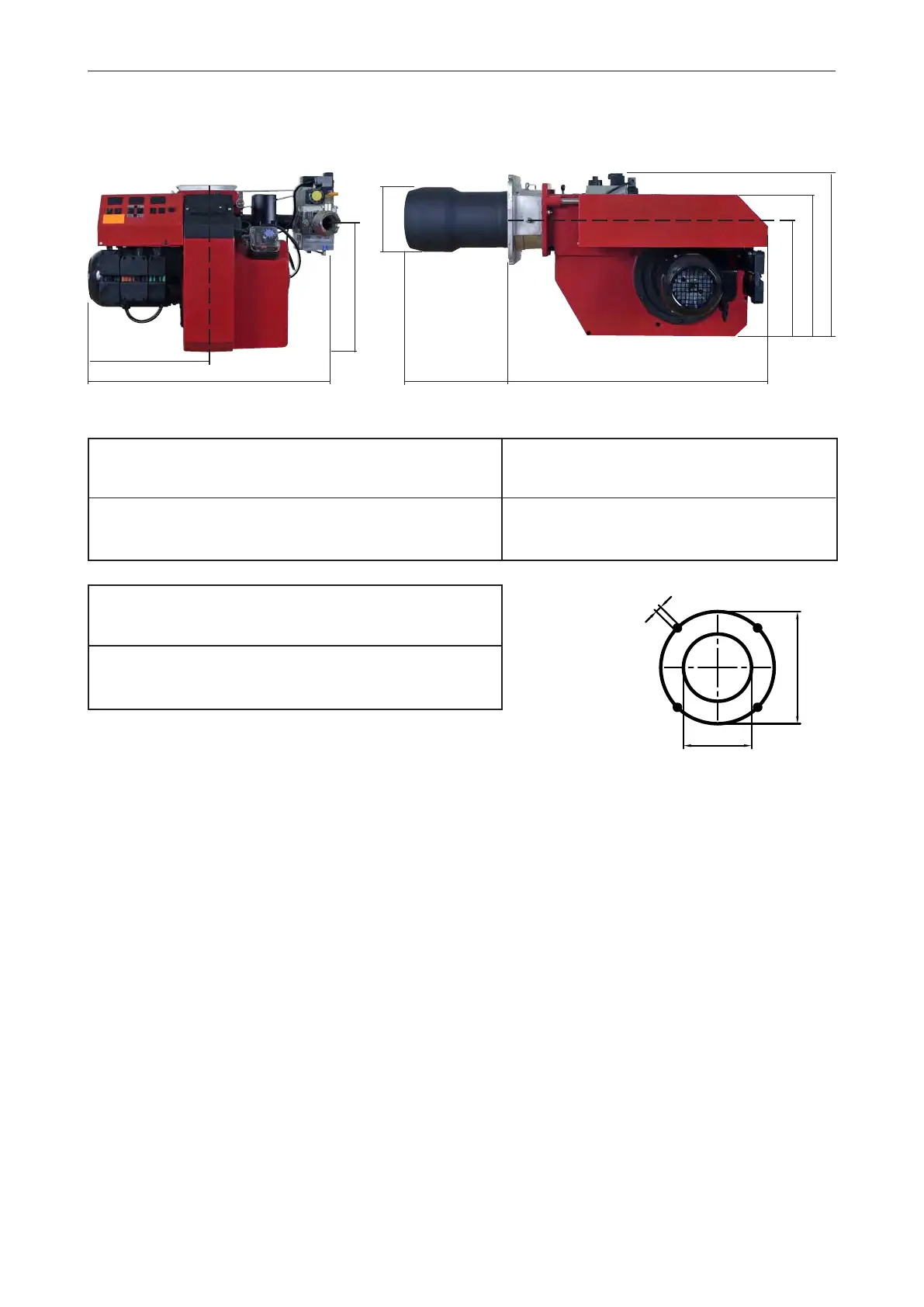

TECHNICAL DATA
Type designation BG550/BG550LN/BG650
Dimensions
* The above dimensions are max. measurements. Depending on the
components used, the measurements may vary.
1(3)
Length of Flange Burner tube Burner tube Length of Flange Burner tube Burner tube
burner tube Measure B Measure C Measure D burner tube Measure B Measure C Measure D
BG550 BG550 BG550 BG550 BG550LN BG550LN BG550LN BG550LN
Standard 1 256 226 162 162 252 222 162 162
Standard 2 356 326 162 162 352 322 162 162
Standard 3 456 426 162 162 452 422 162 162
D
(ø210)ø254-280
ø190
M12
660*
400
658
B
C

290*
690*
321



 




321








