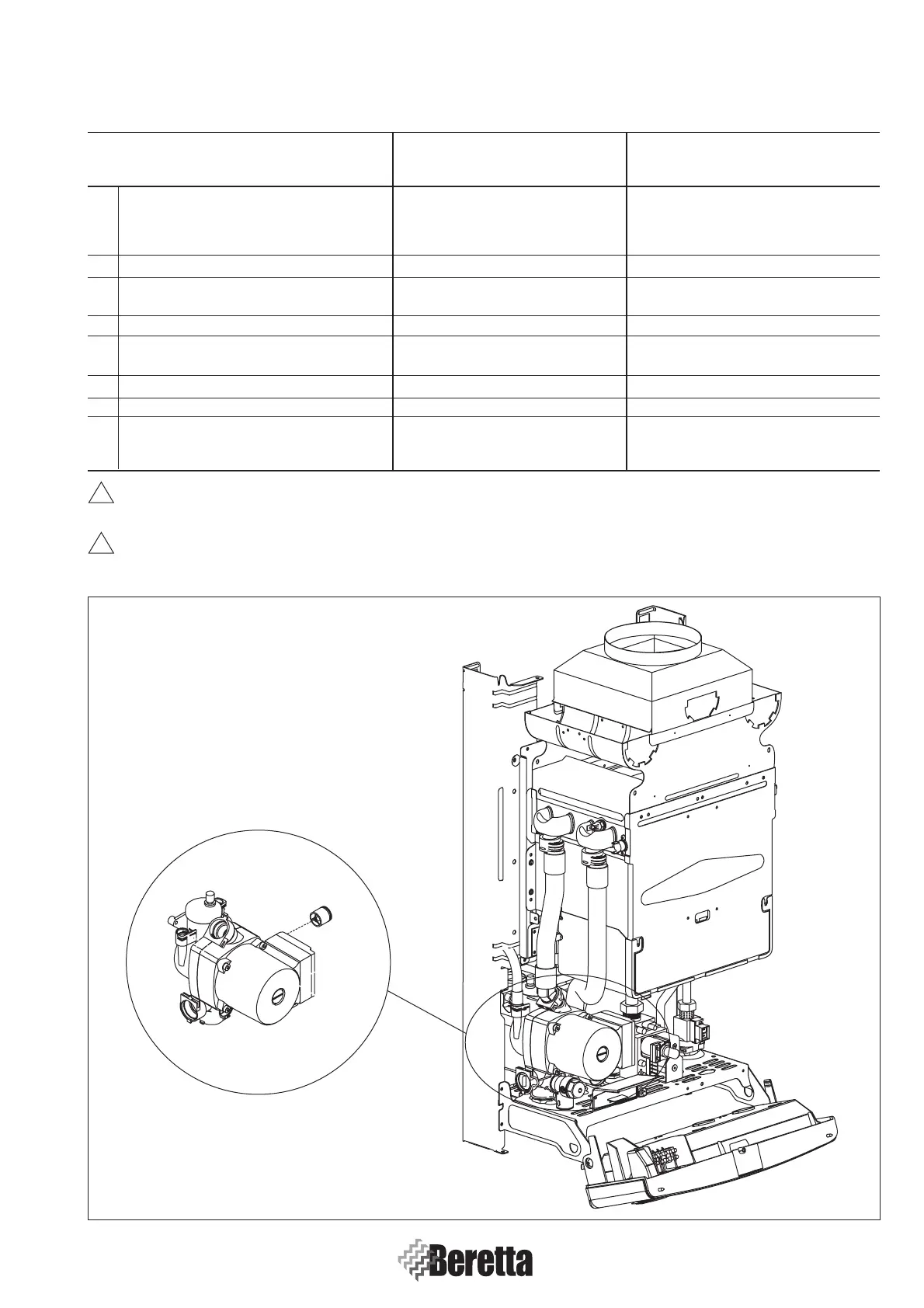

4.4.15 BY-PASS VALVE DISASSEMBLY (C.A.I.-C.S.I. Version)
OPERATION SEQUENCE ITEM INVOLVED TOOLS NEEDED FOR
WITH OPERATION THE OPERATION
15 • Disconnect the boiler from the electricity
supply
• Turn off the gas tap
15.1 Turn off heating system taps Heating system taps No tools – by hand
15.2 Remove the case.
See procedure pag. 25
15.3 Empty the heating system Safety valve lever No tools – by hand
15.4 Take out the circulator.
See procedure pag. 20
15.5 Expel by-pass valve from housing By-pass valve No tools – by hand (a finger)
15.6 Clean by-pass valve housing By-pass valve housing Cleaning rag
15.7 Lubricate and insert new by-pass
valve Lubricated by-pass valve Molikote 111 type lubrication
!!
Work the other way round from the above for reassembly operations.
!!
MAKE FUNCTIONAL TESTS PAGES 65, 66 and 67.
