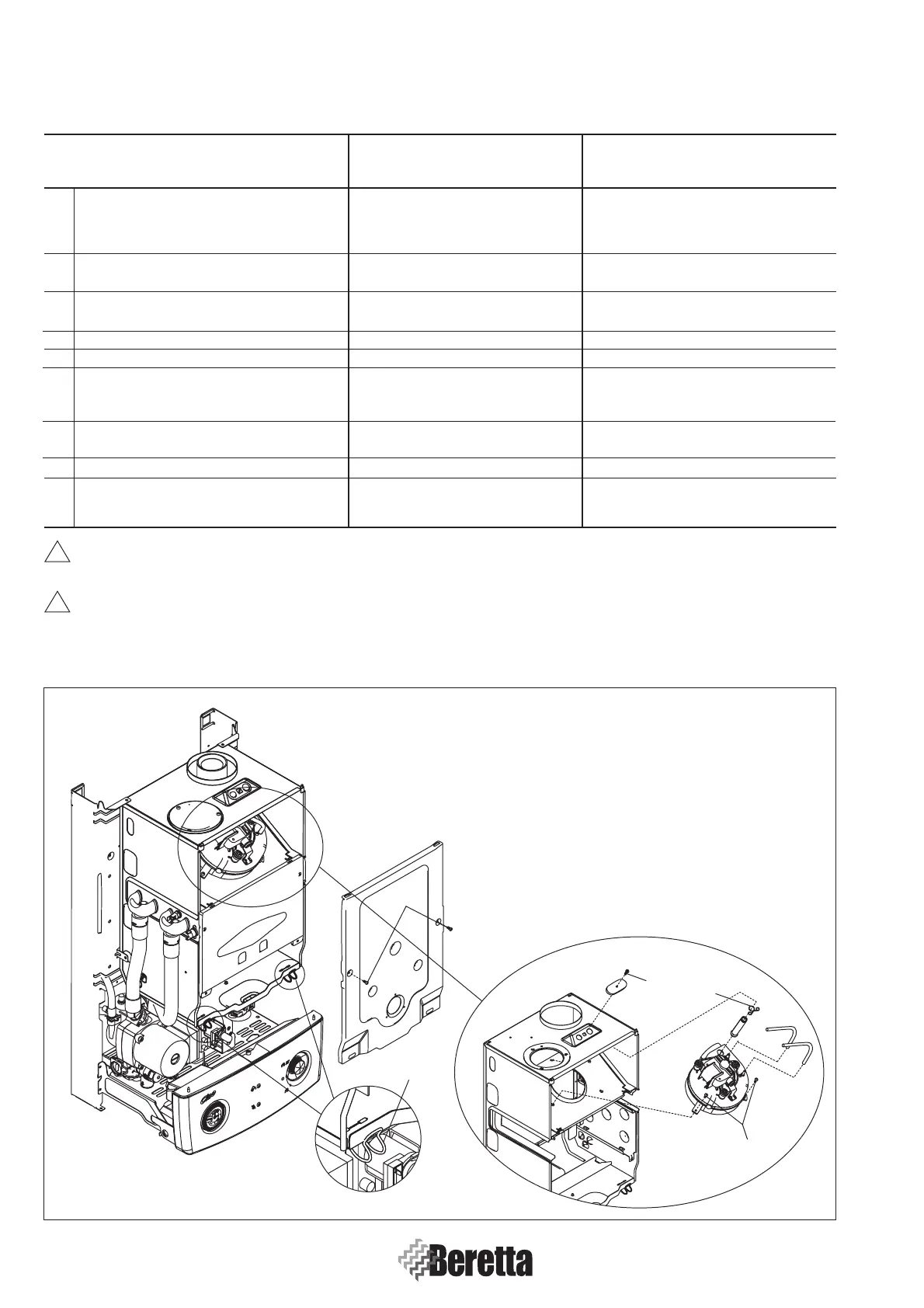

4.4.19 FAN DISASSEMBLY (C.S.I. only)
OPERATION SEQUENCE ITEM INVOLVED TOOLS NEEDED FOR
WITH OPERATION THE OPERATION
19 • Disconnect the boiler from the electricity
supply
• Turn off the gas tap
19.1 Remove the case.
See procedure pag. 25
19.2 Remove air box cover N. 2 screwscand N. 2 clips Magnetic PH2 screwdriver+broad
removing the screws (1) and the clip (2) and broas tipped screwdriver
19.3 Slide off silicone tube (3) from fan plug N. 2 silicone tubes No tools – by hand
19.4 Disconnect electricity supply from fan N. 2 supply cond. and earth lead Normal pliers
19.5 Unscrew the screw (4) of cap on fumes
analysis attachment and removing the clip
(5) of cap on fumes analysis attachment N. 1 screw and N. 1 clip Magnetic PH2 screwdriver and by hand
19.6 Unscrew the screws fastening (6) fan - Magnetic PH2 screwdriver +cacc. nano
combustion chamber N. 3 screws PH2 dwarf screwdriver
19.7 Remove fan from boiler Fan No tools – by hand
19.8 Disassemble Venturi and Pitot tube from
fan and clean them Venturi and Pitot tube PH2 screwdriver
!!
Work the other way round from the above for reassembly operations.
!!
MAKE FUNCTIONAL TESTS PAGES 65, 66 and 67.
4
6
✓
✕
✑
2
