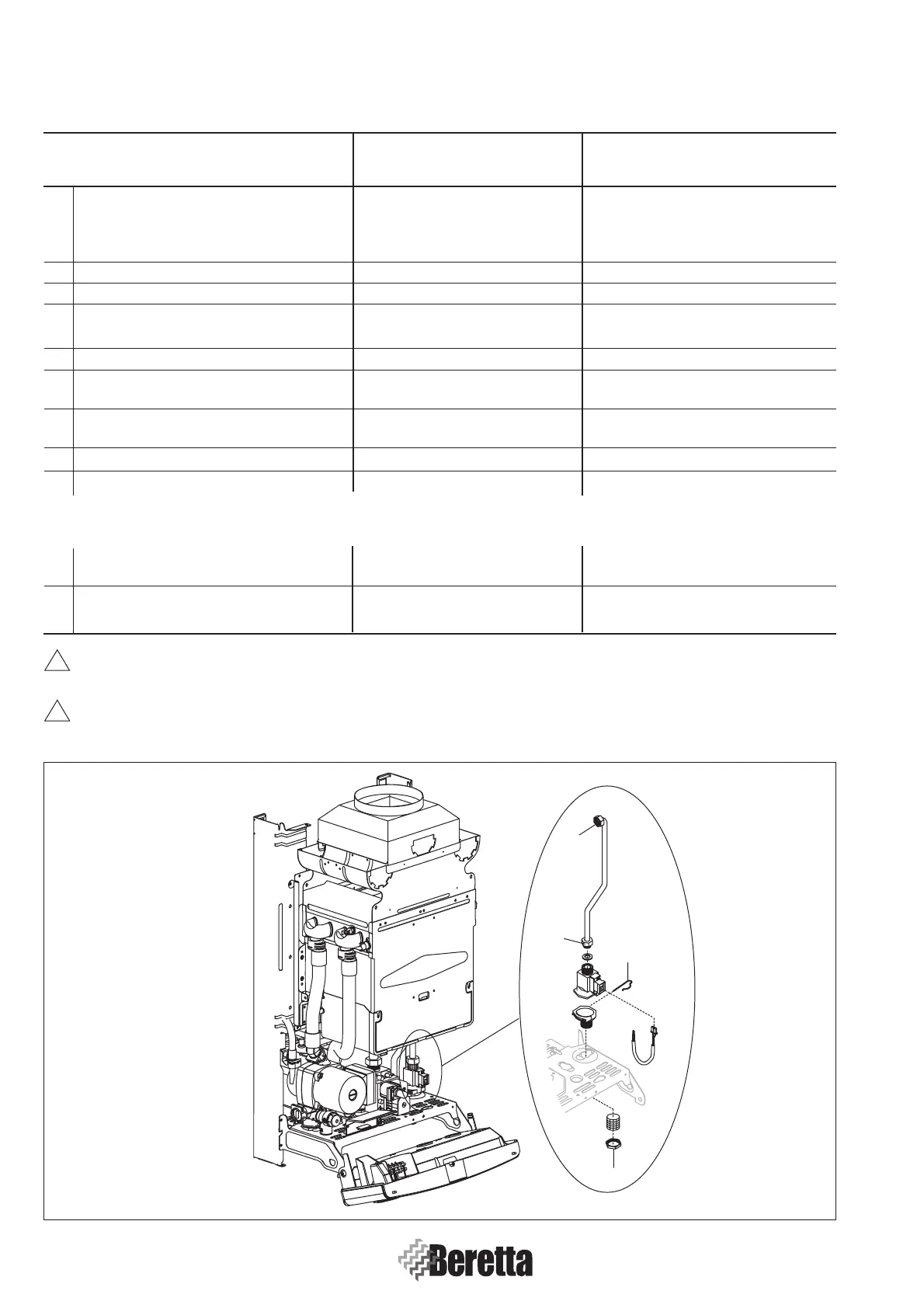

4.4.4 FLOWMETER DISASSEMBLY (C.A.I.-C.S.I. Version)
OPERATION SEQUENCE ITEM INVOLVED TOOLS NEEDED FOR
WITH OPERATION THE OPERATION
4 • Disconnect the boiler from the electricity
supply
• Turn off the gas tap
4.1 Turn off sanitary inlet tap Sanitary H2o tap No tools – by hand
4.2 Empty sanitary system Sanitary H2o tap No tools – by hand
4.3 Remove the case.
See procedure pag. 25
4.4 Disconnect flowmeter supply connector Connector No tools – by hand
4.5 Unscrew nut (1) fastening water-flowmeter
inlet ramp N. 1 nut 24mm wrench
4.6 Loosen nut (2) fastening water-exchanger
inlet ramp N. 1 nut 24mm wrench
4.7 Extract flowmeter-frame fastening clip (3) Clip Long pliers
4.8 Remove flowmeter Flowmeter No tools – by hand
To check the filter at the flowmeter inlet, once the above operations have been done it is best to:
4.9 Unscrew nut fastening water inlet
connection ramp N. 1 nut 24mm wrench
4.10 Remove filter at flowmeter
inlet from its housing Filter Cutting screwdriver
!!
Work the other way round from the above for reassembly operations.
!!
MAKE FUNCTIONAL TESTS PAGES 65, 66 and 67.
