FAULT INDICATION
(1) When load current reaches1.02-1.05 times 1.05-1.25 times, 1.25-1.35 times and 1.35-1.5
times more than nominal value, controller will automatically turn off loads in 50s, 30s,10s
and 2s respectively.

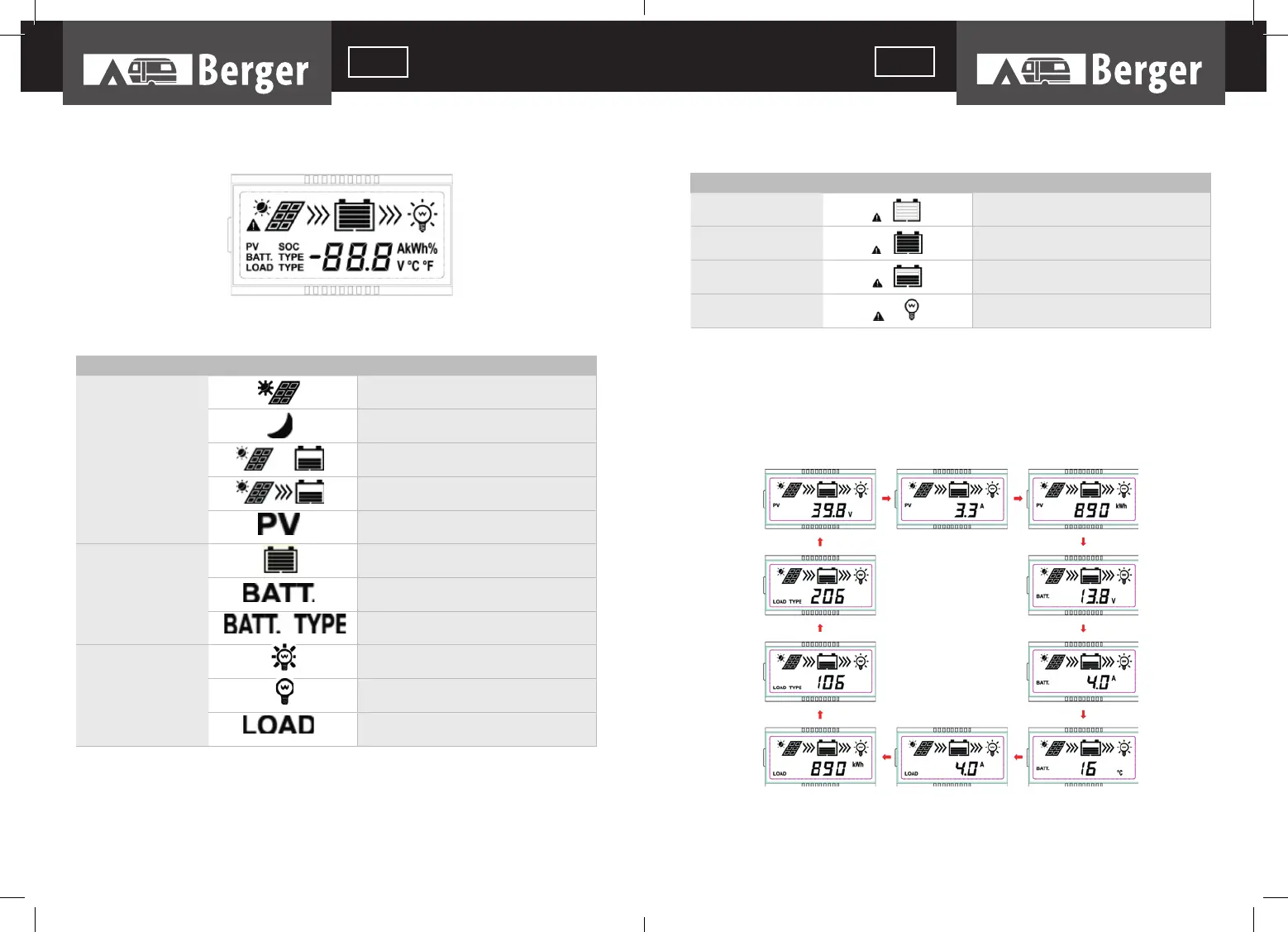

BROWSE INTERFACE
INTERFACE
STATUS DESCRIPTION
Item Icon Status
PV-array
Day
Night
No charging
Charging
PV Voltage, Current, Power
Battery
Battery capacity, In Charging
Battery Voltage, Current, Temperature
Battery Type
Load
Load ON
Load OFF
Current/Consumed energy/Load mode
Status Icon Description
Battery over dischar-
ged
Battery level shows empty, battery
frame blink, fault icon blink
Battery over voltage
Battery level shows full, battery frame
blink, fault icon blink
Battery over tempe-
rature
Battery level shows current value, bat-
tery frame blink, fault icon blink
Load failure Load overload (1) ,Load short circuit
