SETTING
1) Clear the generated energy
Operation:
Step 1: Press the “ENTER” button and hold 5s under the PV generated energy interface and
the value will be fl ashing.
Step 2: Press the “ENTER” button to clear the generated energy..
2) Switch the battery temperature unit
Press the “ENTER” button and hold 5s under the battery temperature interface.

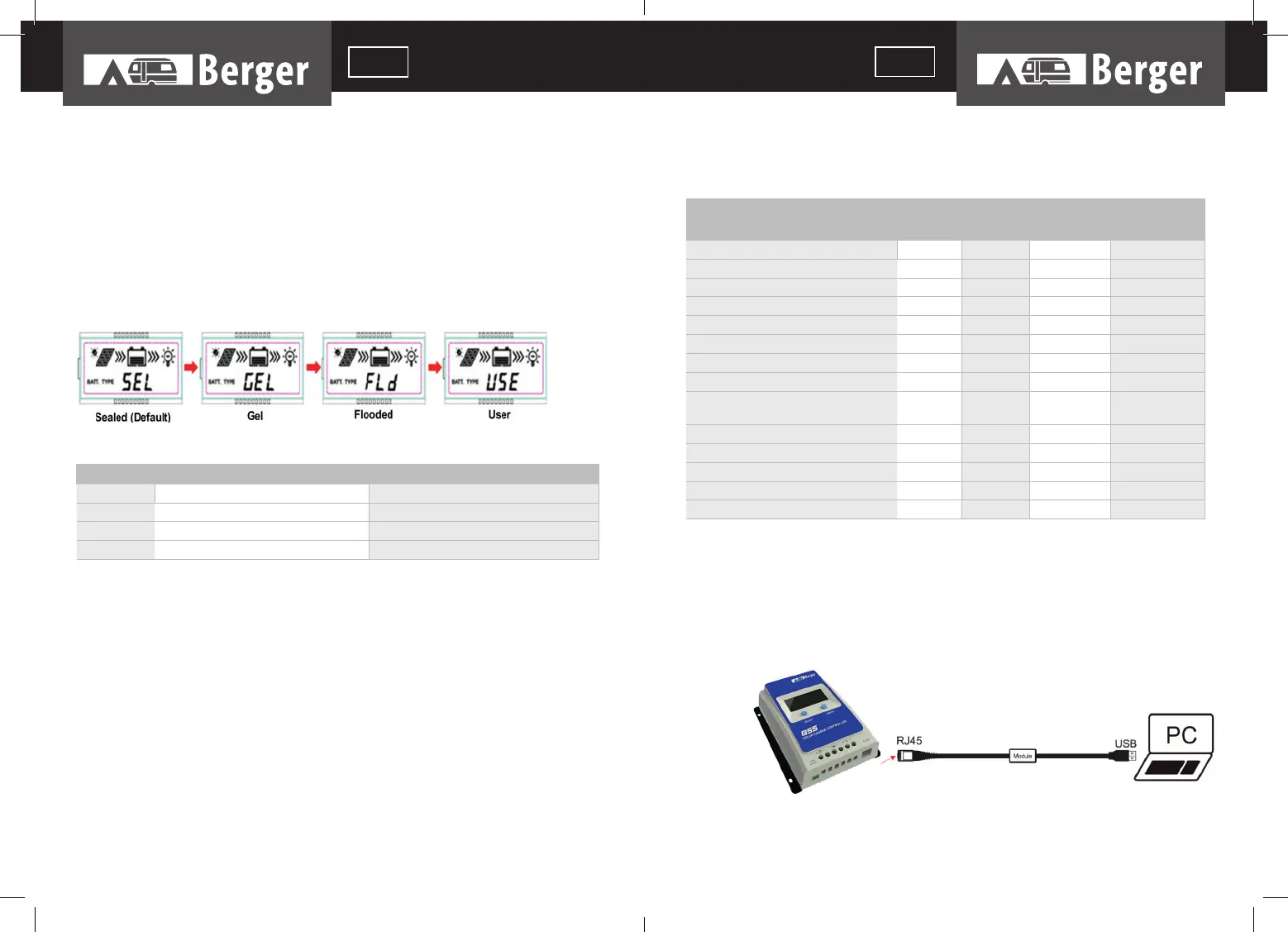

3) Battery type
CAUTION: When the default battery type is selected, the battery voltage control parame-
ters will be set by default and can’t be changed. To change these parameters, select „User“
battery type.
Operation:
Step1: Press the “ENTER” button and hold 5s under the battery voltage interface.
Step2: Press the “SELECT” button when the battery type interface is fl ashing.
Step3: Press the “ENTER” button to confi rm the battery type.
CAUTION: Please refer to chapter for the battery control voltage, when the battery type is
User.
(2)Battery Voltage Control Parameters
Below parameters are in 12V system at 25 ºC, please double the values in 24V
system
CAUTION: Due to diversifi cation of lithium battery types, its control voltage shall be confi r-
med with the engineer.
USER SETTINGS
PC setting
• Connection
• Download software
http://www.epever.com/en/index.php/Tecknical/download
(PC Software for the Solar Charge Controller)
Batterytyp
Voltage Sealed Gel Flooded User
Over Voltage Disconnect Voltage 16.0V 16.0V 16.0V 9～17V
Charging Limit Voltage 15.0V 15.0V 15.0V 9～17V
Over Voltage Reconnect Voltage 15.0V 15.0V 15.0V 9～17V
Equalize Charging Voltage 14.6V —— 14.8V 9～17V
Boost Charging Voltage 14.4V 14.2V 14.6V 9～17V
Float Charging Voltage 13.8V 13.8V 13.8V 9～17V
Boost Reconnect Charging Voltage 13.2V 13.2V 13.2V 9～17V
Low Voltage Reconnect Voltage 12.6V 12.6V 12.6V 9～17V
Under Voltage Warning Reconnect
Voltage
12.2V 12.2V 12.2V 9～17V
Under Voltage Warning Voltage 12.0V 12.0V 12.0V 9～17V
Low Voltage Disconnect Voltage 11.1V 11.1V 11.1V 9～17V
Discharging Limit Voltage 10.6V 10.6V 10.6V 9～17V
Equalize Duration 120 min —— 120 min 0～180 min
Boost Duration 120 min 120 min 120 min 10～180 min
Item Lead-acid battery Lithium battery
1 Sealed(default) LiFePO4(4s/12V; 8s/24V)
2 Gel Li(NiCoMn)O2 (3s/12V; 6s/24V)
3 Flooded User(9～34V)
4 User(9～17V/12V; 18～34V/24V)
