ADJUST - BITE
THR level sets the amount of bite or bend action on the mouthpiece
needed to start sending portamento control data. The portamento indicator
LED (red) will light up when bite input is over threshold in case the bite sensor
is set up to control portamento. If the LED is always lit, even when you are not
biting or bending the mouthpiece, you need to raise the THR setting until the
LED turns off. If PneuBite system is installed, remember to press the valve
button before calibration and put the THR level a bit higher than just right of the
idle sensor reading to have some margin for rising value due to temperature
change.
MAX sets the bite or bending level corresponding to full portamento signal
output.
When using bite for vibrato, the bite adjustment is not relevant, but the SNS
dot can still be a good indicator to check proper bite sensor response.

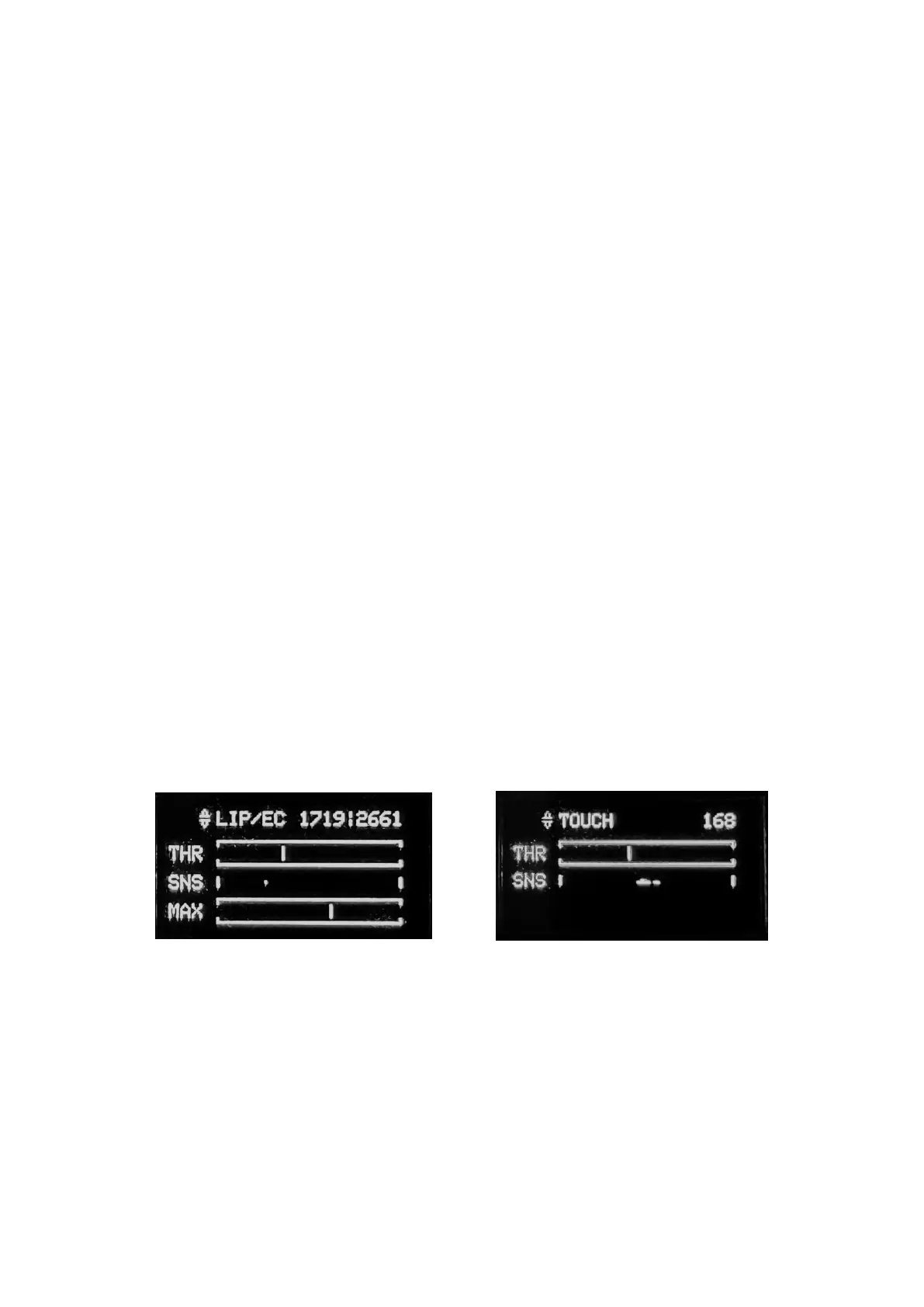

Typical settings. Note that for the touch sensor adjustment the THR bar is to the
left of the sensor dot cluster, as the values go lower when sensors are touched. For
the other sensors the dots move right on actuation, and the THR and MAX bars
should be on the right of idle reading sensor dots.
