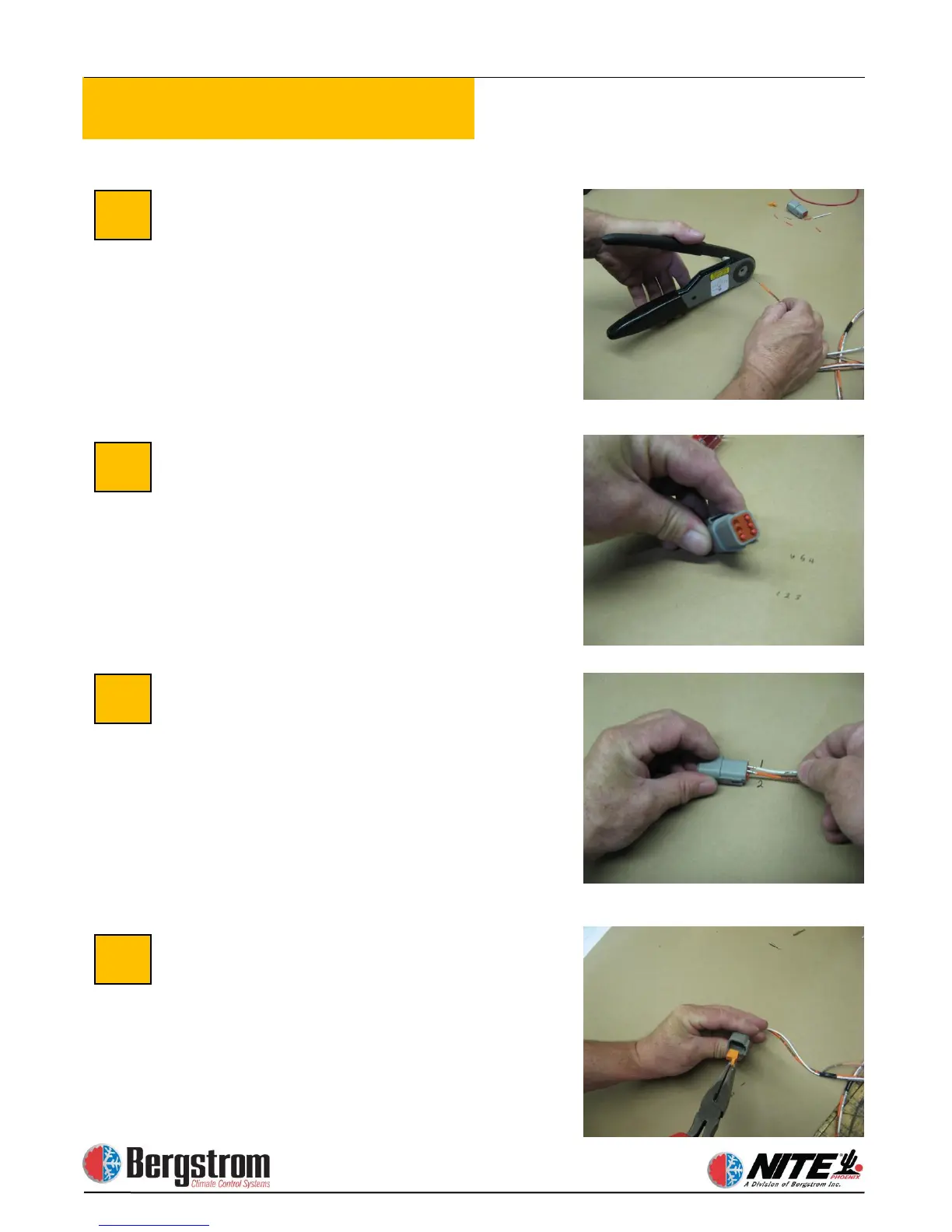

Cut wires to length, strip insulation as
instructed in the Deutsch tool section.
Crimp terminals on each wire.
Install 4 sealing plugs into the unused
terminal locations 3 through 6.
Install separator control wires into
Deutsch connector
Terminals are marked as:
1– Solenoid common (White wire)
2– Solenoid engage (Orange wire)
After wires are installed, slide the
terminal lock into place, inside the
connector
