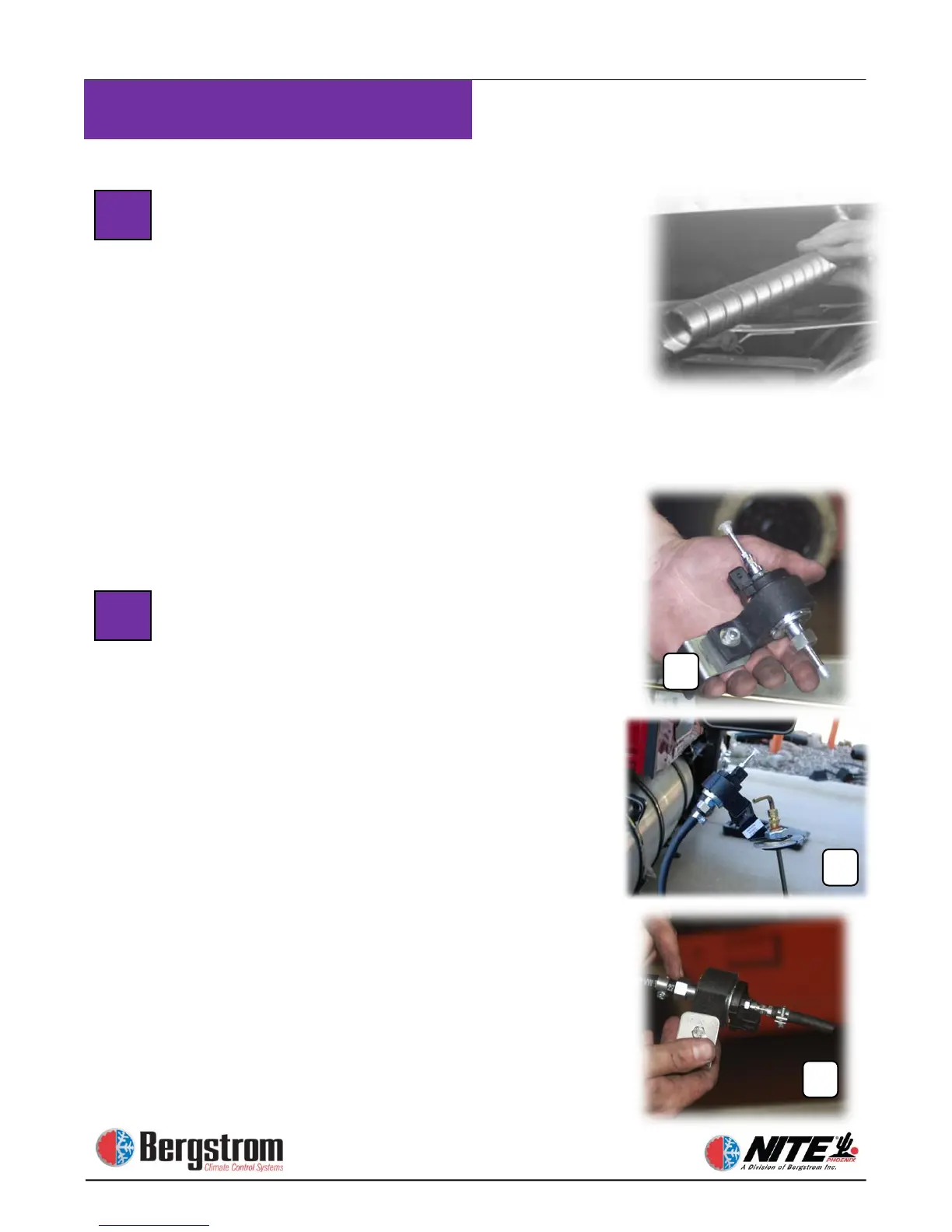

Finish Intake and Exhaust Hose
Installation. First, attach intake air
tube to truck structure with zip ties. Put
cap on bottom of intake tube. Next, run
exhaust hose to the back of cab, attach
with clamps to the structure of the
truck. Cut off excess
exhaust hose, and place End
Sleeve on the end of the hose.
NOTE: HOT – Keep exhaust
hose away from wiring or flammable
material. Make sure exhaust exits
behind the vehicle.
Assemble the Fuel Pump Mount and
Hoses. Take rubber mount bushing and
L bracket and put them together to
make mounting bracket for fuel pump.
Slide fuel pump into rubber bushing
(A). Take plastic caps off both ends of
fuel pump. Attach large fuel hose to
larger diameter end (B), figure out
length needed to connect to pick up tube
and cut off excess. Secure with clamp.
Attach small precut hose to smaller
diameter end of the fuel pump and
secure with clamp (C).
NOTE: Bracket show n in photo (B)
will always set the fuel pump at the
desired angle. Make sure the inlet of the
fuel pump is down.
