Berkel BSFTM - Page 16

UM - CODE N1 N2 N3 N9 - REV 0.3
BSFM series
13
11
15
14
1
2
4
5
22
6
8
7
9
10
23
19
8
14
15
12
18
16
17
13
5
20
3
5
1
2
21
4

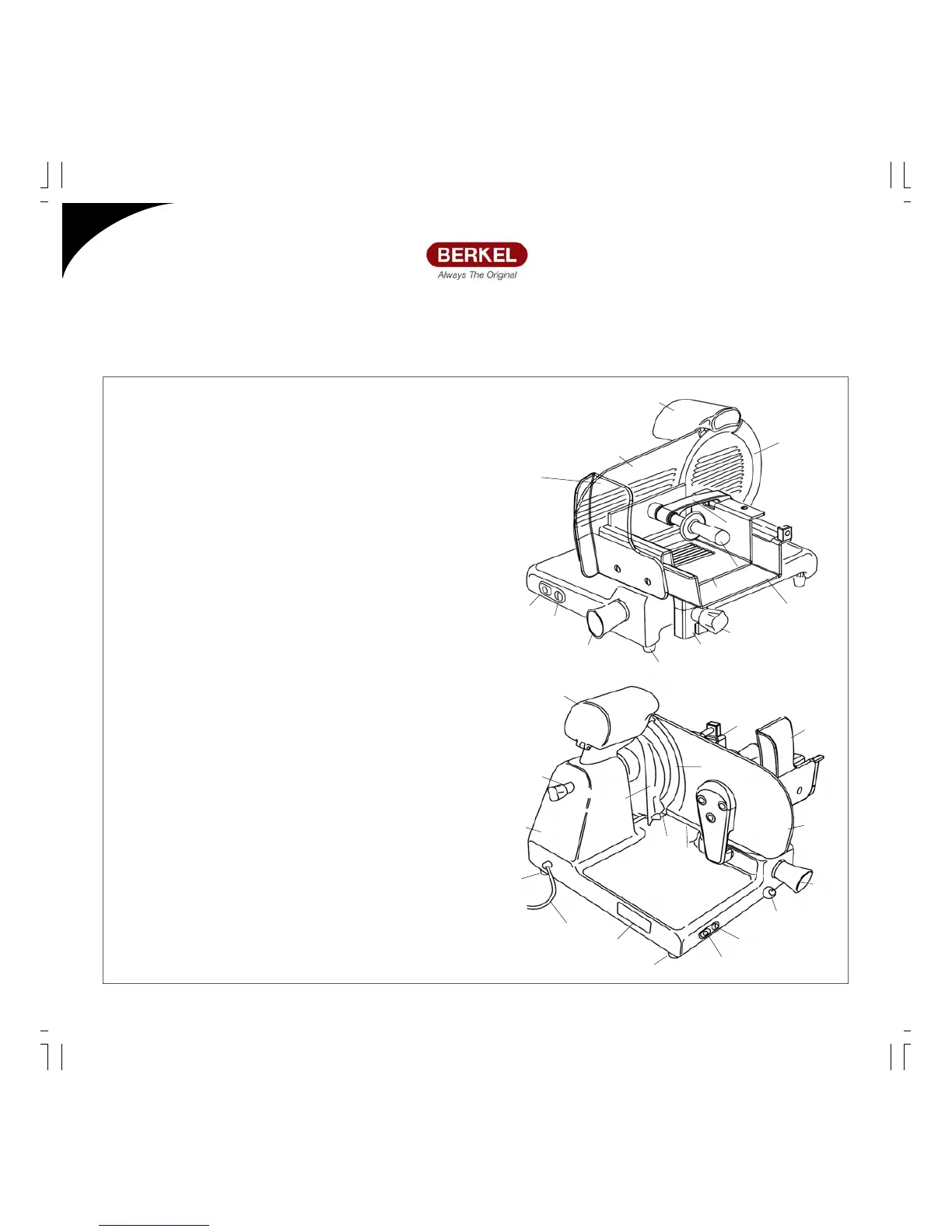

1. STOP BUTTON (RED)
2. START BUTTON (GREEN)
3. IDENTIFICATION PLATE, TECHNICAL DATA AND EC MARKING
4. SLICE THICKNESS REGULATING KNOB
5. FOOT
6. PLATE LOCKING KNOB
7. INNERTABLE
8. PLATE
9. FOOD PRESS HANDLE
10. FOOD PRESS
11. BLADE COVER
12. BLADE
13. SHARPENER
14. TRANSPARENT PROTECTION GUARD
15. THICKNESS PLATE (VELA)
16. BASE
17. BLADE COVER TENSION ROD
18. SLICE DEFLECTOR
19. BLOCK
20. FEED CABLE
21. LUBRICATING POINT FOR CARRIAGE GUIDES
22. PLATE SUPPORT
23. SAFETY RING (BLADE PROTECTION)
16
