Berkel BSFTM - Main Components

UM - CODE N1 N2 N3 N9 - REV 0.3
ENGLISH
15

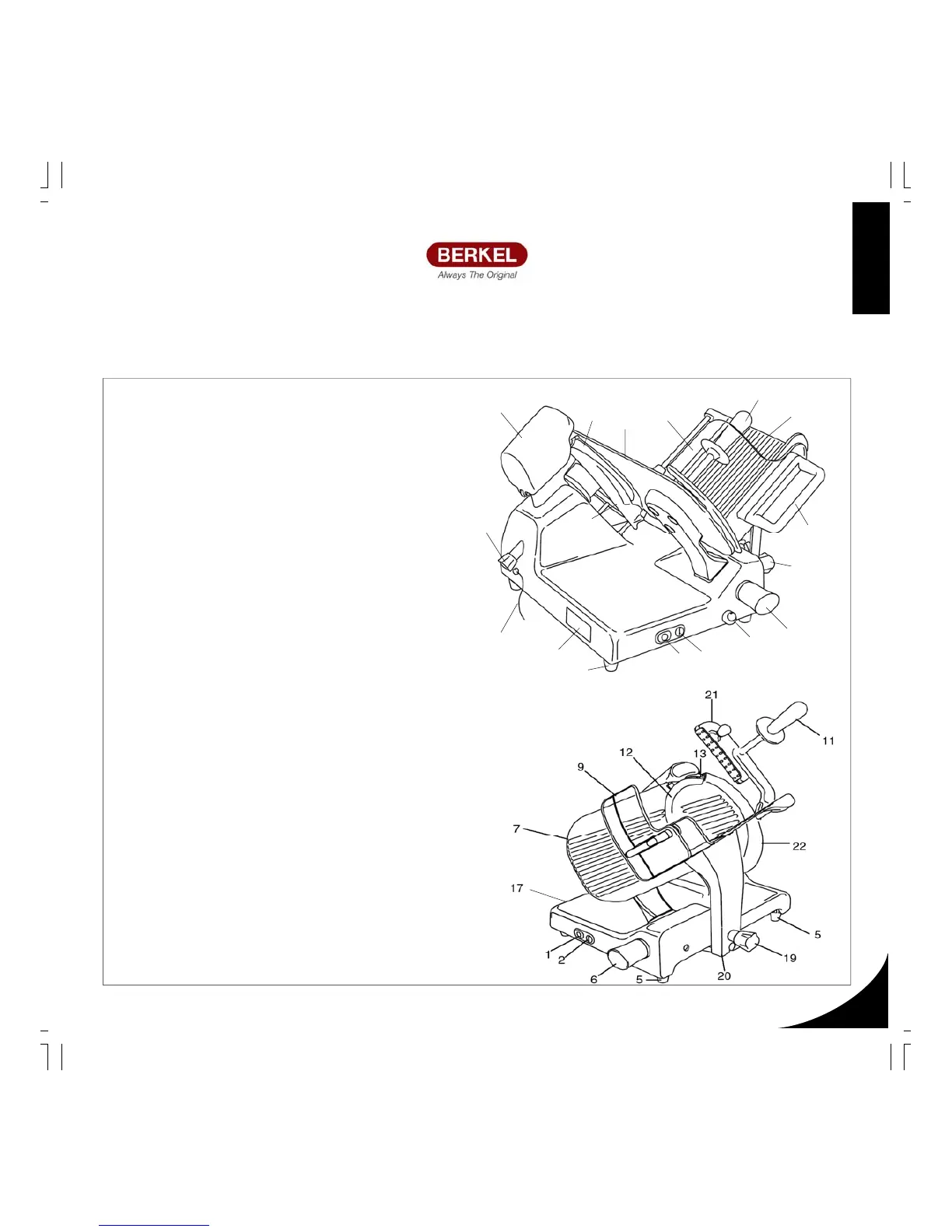

4.2. Main components
BSFG series
16
1. STOP BUTTON (RED)
2. START BUTTON (GREEN)
3. IDENTIFICATION PLATE, TECHNICAL DATA AND EC MARKING
4. LUBRICATING POINT FOR GUIDE BARS
5. FOOT
6. REGULATING KNOB FOR SLICE THICKNESS
7. THICKNESS PLATE (VELA)
8. HANDLE FOR PLATE PUSHING
9. SAFETY GUARD
10. FOOD PLATE
11. FOOD PRESS HANDLE
12. BLADE
13. SAFETY RING (BLADE PROTECTION)
14. SHARPENER
15. BLADE COVER TENSION ROD
16. SLICE DEFLECTOR
17. BASE
18. FEED CABLE
19. PLATE LOCKING KNOB
20. PLATE SUPPORT
21. FOOD PRESS
22. BLADE COVER
1
2
11
4
6
8
10
19
5
3
9 12
7
14
15
18
