UM - CODE N1 N2 N3 N9 - REV 0.3
32

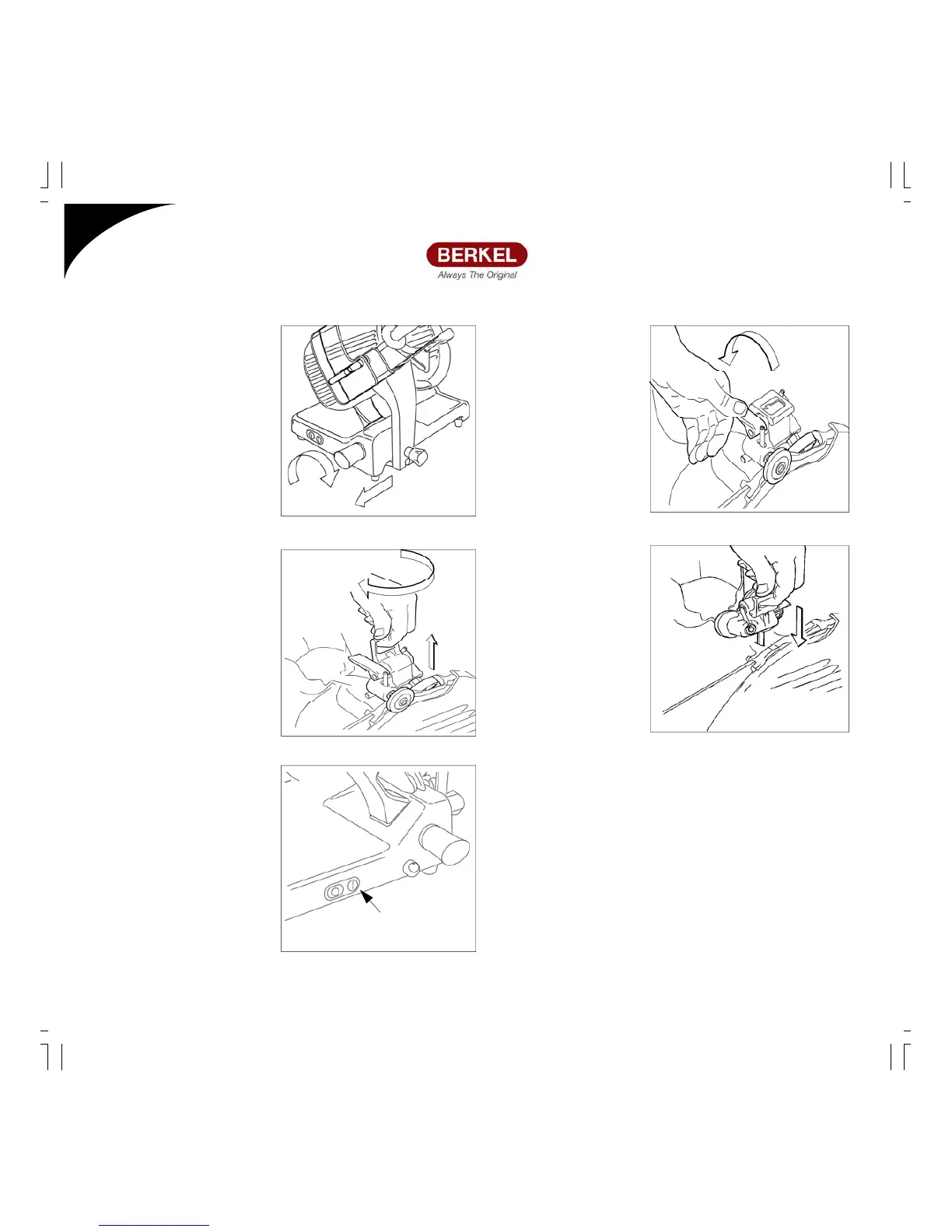

7.2.1. Carrying out the
sharpening
NOTE: Before starting this
operation, check that the
grindstones have been cleaned;
paragraph 6.2.3.
1. Ensure the thickness regulator
knob is turned back to its SAFE
position, thickness plate fully
closed;
2. Pull back the food plate all the
way;
3. Lift the sharpener as shown in
the picture and turn it 180°;
WARNING: This operation must
be performed carefully and
attentively.
RISK OF INJURY!
4. Start the blade by pressing the
GREEN button;
5. Carry out the sharpening of
the blade by pressing the
sharpening lever as in picture
and keeping it pressed for about
10-15 seconds;
6. Let go of the sharpening lever
and stop the blade by pressing
the RED button;
7. Lift it and turn it 180°; release
it until it stops and retighten the
locking knob;
8. Clean the slicing machine.
WARNING: Lower the
sharpener cover. Keep fingers
clear of top of blade.
