Berkeley S.A.E. - Discharge Connection - Not Recommended; Avoid Undersized Discharge Piping; Proper Pipe Support and Alignment; Minimize Friction Loss in Discharge

• Avoid excess friction loss caused by numerous fittings,
insufficient pipe diameter, and sharp turns in pipe run.
• Some swing type check valves may permit buildup of
reverse velocity before closing, causing hydraulic shock
(water hammer).
• Do not force pipe alignment that can cause flange stress.
F00636 Page 13

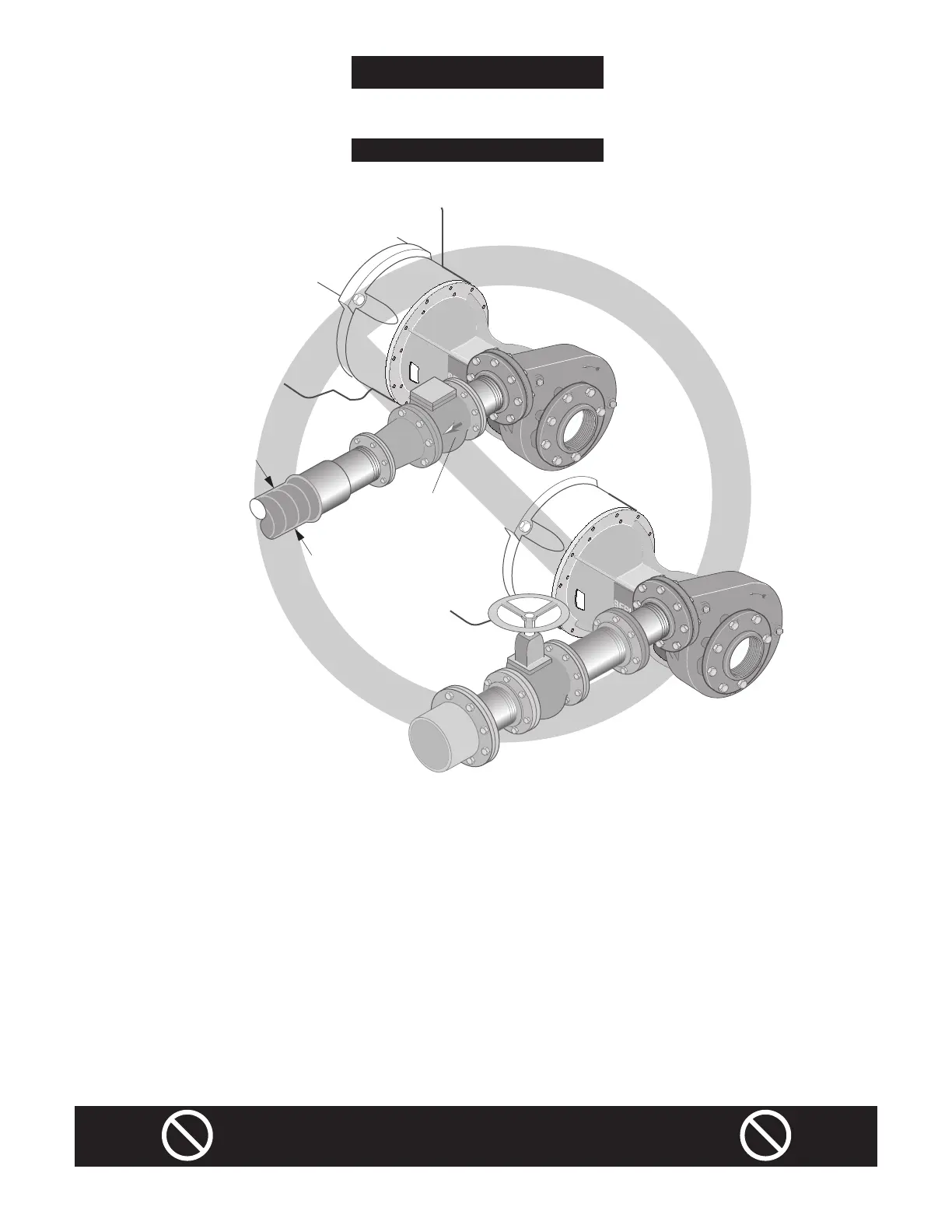

Discharge Connection
Installation
Not Recommended
Do not use Gate Valve
to throttle flow.
Avoid abrupt change
in pipe size.
Avoid undersized
pipe / hose diameter
Do not leave
pipe unsupported
6050 0609
Avoid check valves
that cause hydraulic
shock.
