4
ADJUSTMENTS
44
GB

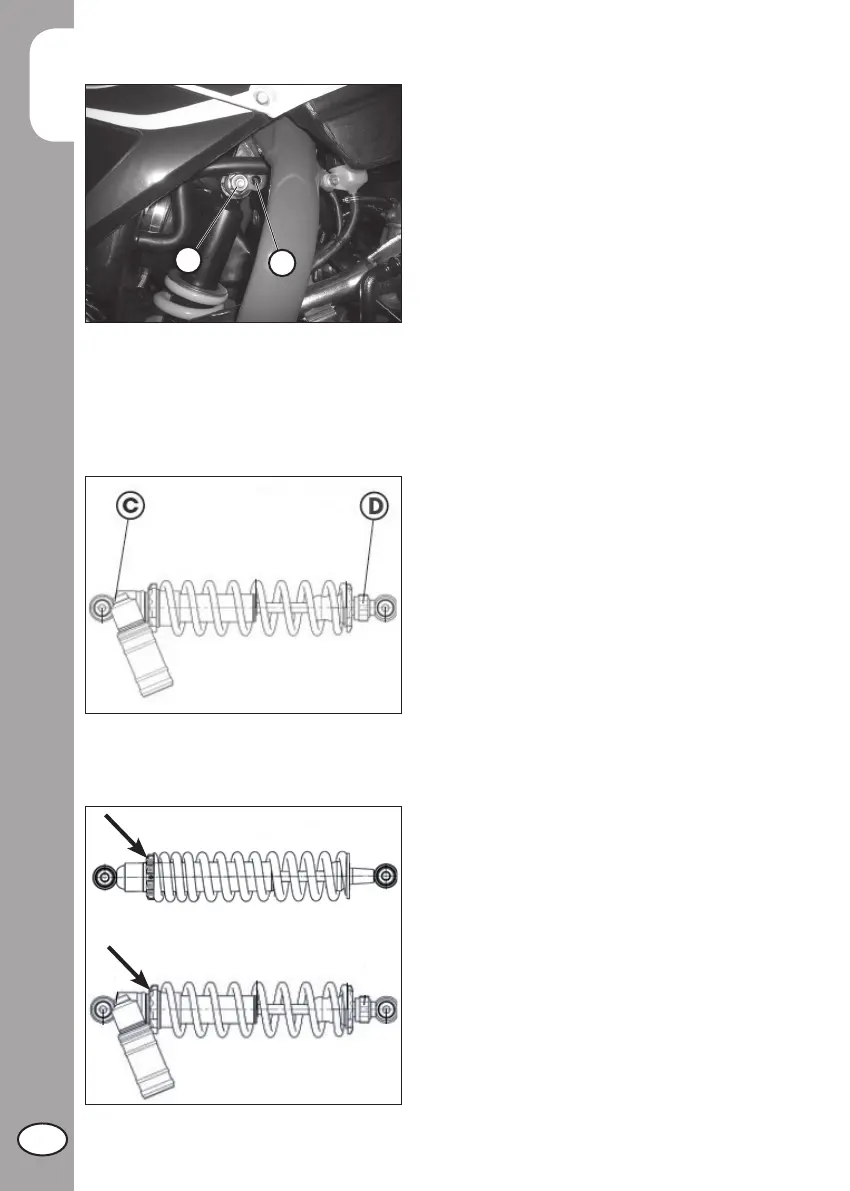

ADJUSTING THE SHOCK ABSORBER
(ENDURO STANDARD/MOTARD STAN-
DARD/MOTARD/TRACK)
The motorcycle has two different positions
for the upper attachment of the shock
absorber.
Position A: standard position.
Position B: lowered position. The height of
the motorcycle reduces by 30 mm.
WARNING: locknuts with plastic ring are
for single use only. Once removed it must
be replaced
ADJUSTING THE COMPRESSION AND
EXTENSION BRAKE (FACTORY)
Adjuster (D), located near the lower shock
absorber mount, is used to adjust the
hydraulic damping during the rebound
(return) phase.
Knob (C), located on the expansion tank
of the shock absorber, adjusts the hydraulic
damping during the compression phase.
Turning knobs (D) and (C) clockwise increa-
ses the damping action; conversely, turning
them anticlockwise decreases it.
For standard setting, refer to page 21.
ADJUSTING THE SPRING PRELOAD
(ENDURO/FACTORY)
To adjust the spring preload, use the pro-
cedure described below.
Rotate ring clockwise to increase the
spring preload (and consequently the
shock absorber preload) or anticlockwise
to decrease it.
B
A
ENDURO
FACTORY
In the event of any malfunction,
contact our authorized customer
service network.
