1.1 GENERAL SPECIFICATIONS
SPEED/DISTANCE SENSOR: Non-contact magnetic
DISPLAY MEASUREMENTS: 125mm x 41mm x 34mm
STORAGE TEMPERATURE: -20°C to 80°C (-4°F to 176°F)
BATTERY: 3V CR2032
BATTERY LIFE: Approximately one year
EXTERNAL CURRENT SUPPLY: 12V DC
1.2 GENERAL INFORMATIONS
Backlight:
The digital speedometer/odometer is backlit to enable reading where there is poor
or no lighting.
When using supplied power with the engine on:
• The back-lighting is on permanently when the engine is running.
1
2
3
6
5
4
7

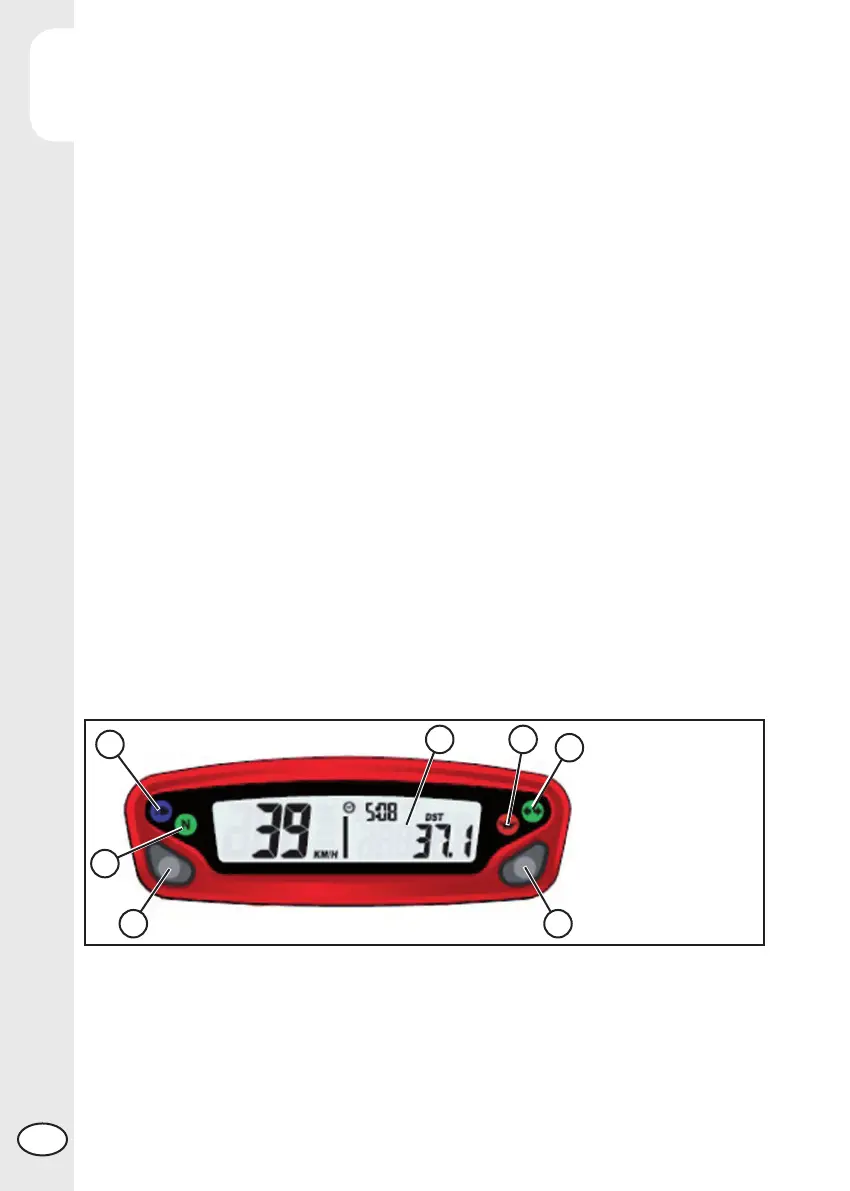

1 LCD
2 High beam light
3 Idle pilot light
4 Oil tank level light
5 Indicator light
6 Push-button 1
7 Push-button 2
DIGITAL RPM INDICATOR OPERATING INSTRUCTIONS
Series RR 50 Enduro - Enduro standard - Factory - Motard - Motard standard - Track
CONTENTS
1 GENERAL SPECIFICATIONS AND GENERAL INFORMATIONS
1.1 General specifi cations
1.2 General informations
2 SETTING THE PARAMETERS
2.1 Setup sequence
2.1.1 Selecting the unit of measure
2.1.2 Selecting the wheel size
2.1.3 Selecting the clock format
2.1.4 Setting the Time
2.1.5 Selecting the maintenance memo
3 SCREENS
4 FEATURES
5 SPEEDOMETER
6 ADJUSTING THE TRAVELLED DISTANCE METER
7 WARNING LIGHTS
