Replace Keypad Only
1. Unplug machine and remove water bottle.

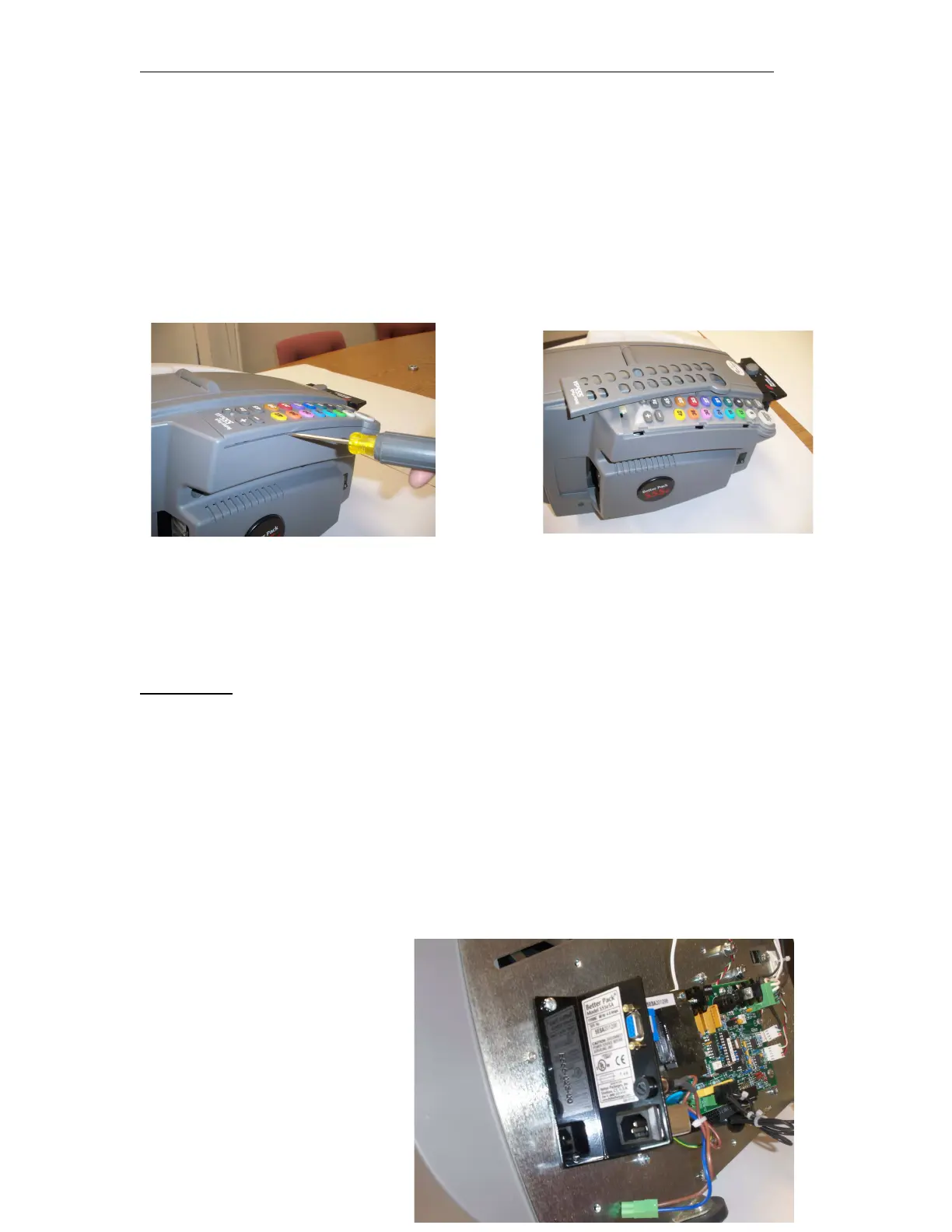

2. Insert a thin flathead screwdriver in-between the keypad
bezel and the cover . Lift the bezel up with your fingers and
remove the old keypad and replace it with the new keypad.
3. Place the bezel back onto the cover and lock it in
replace tank, water bottle and plug machine back in
Connector Plate Assembly
(Note: Always unplug machine when performing service to machine)
Procedure
1. Remove the 5 screws holding the left side cover on
2. Remove keypad membrane and remove the 2 screws holding
the connector to the frame
3. Remove the connectors from the board
4. Place new assembly back onto the frame and fasten with the 2
screws
5. Replace the wire connectors back onto the board
6. Replace the keypad membrane back onto the board
7. Replace the cover back onto machine with the 5 screws
8. Plug machine back in
