Heater
It is recommended that the Heater be replaced by a Better Packages supplied
Heater to maintain safety compliance.
(Note: Always unplug machine when performing service to machine)
Procedure
1. Remove the water bottle and tank and brushes.
2. Remove the right side cover from the machine by the (5) screws that
fasten cover to the side frame.
3. Remove left side cover from machine by removing (5) screws that fasten
cover to frame. When removing this cover lift gently and remove the
membrane switch from the pc board.
4. On the right side frame loosen the screw that locks the bracket onto the
shaft that goes through the heater assembly.
5. Cut the tie-rap that fastens heater to frame. Remove heater plug from pc
board.
6. From the right side remove the shaft holding the heater in place. Remove
your old heater and take off the lower heater plate.
7. Place the lower plate on your new heater and reinstall your heater back
onto machine. Be sure to lock the bracket back into the groove in the shaft
and tighten screw on bracket.
8. Plug your heater back into the pc board and tie-rap the heater back onto
frame.
9. Replace membrane switch back onto pc board and fasten left cover back
onto frame with (5) screws.
10. Replace right side cover back onto frame with (5) screws.
11. Replace tank, water bottle and plug machine back in.

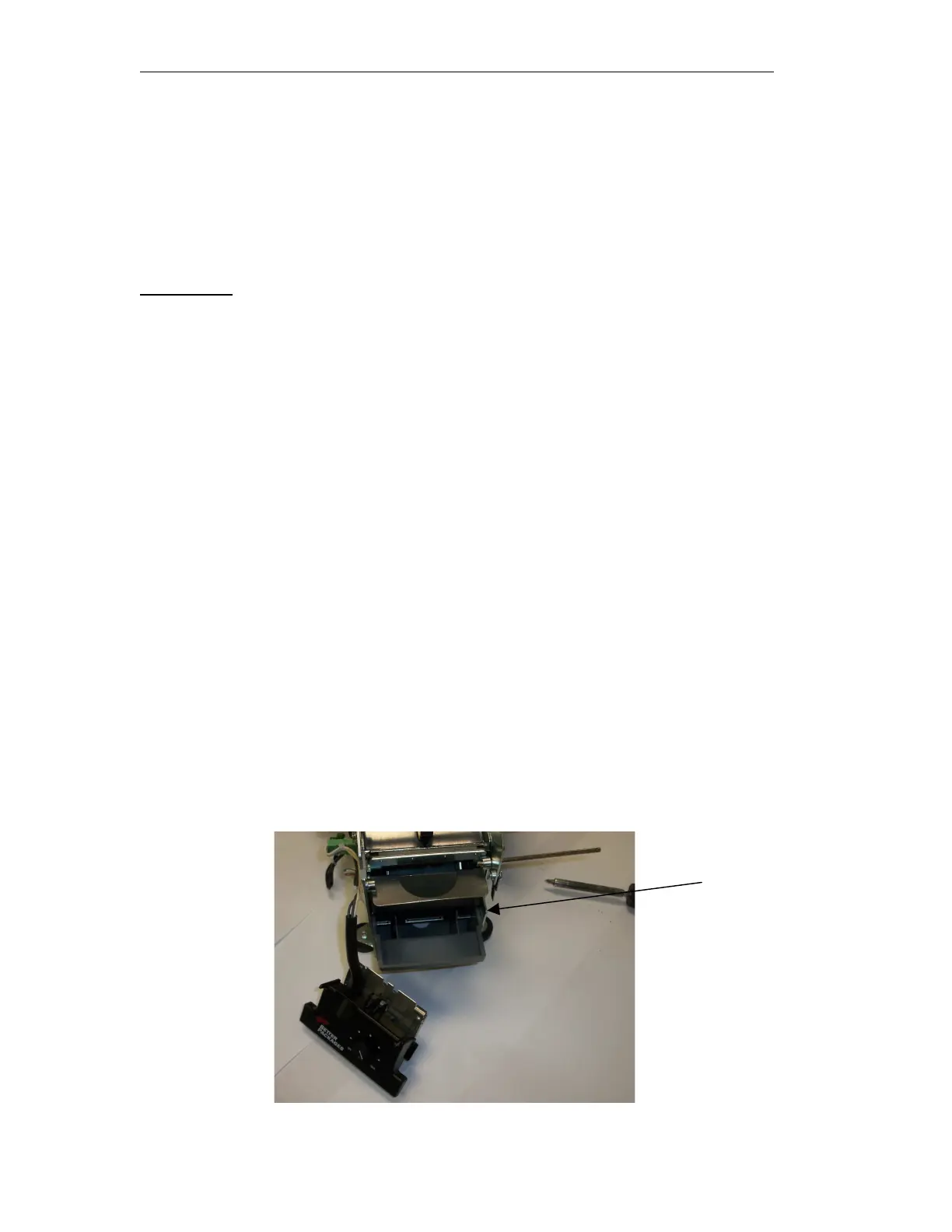

Loosen retainer
