Doc. No. 002 Issue 2 April 1998
Installation
This chapter contains illustrations and step-by-step instructions
on how to install Telecode 5000.

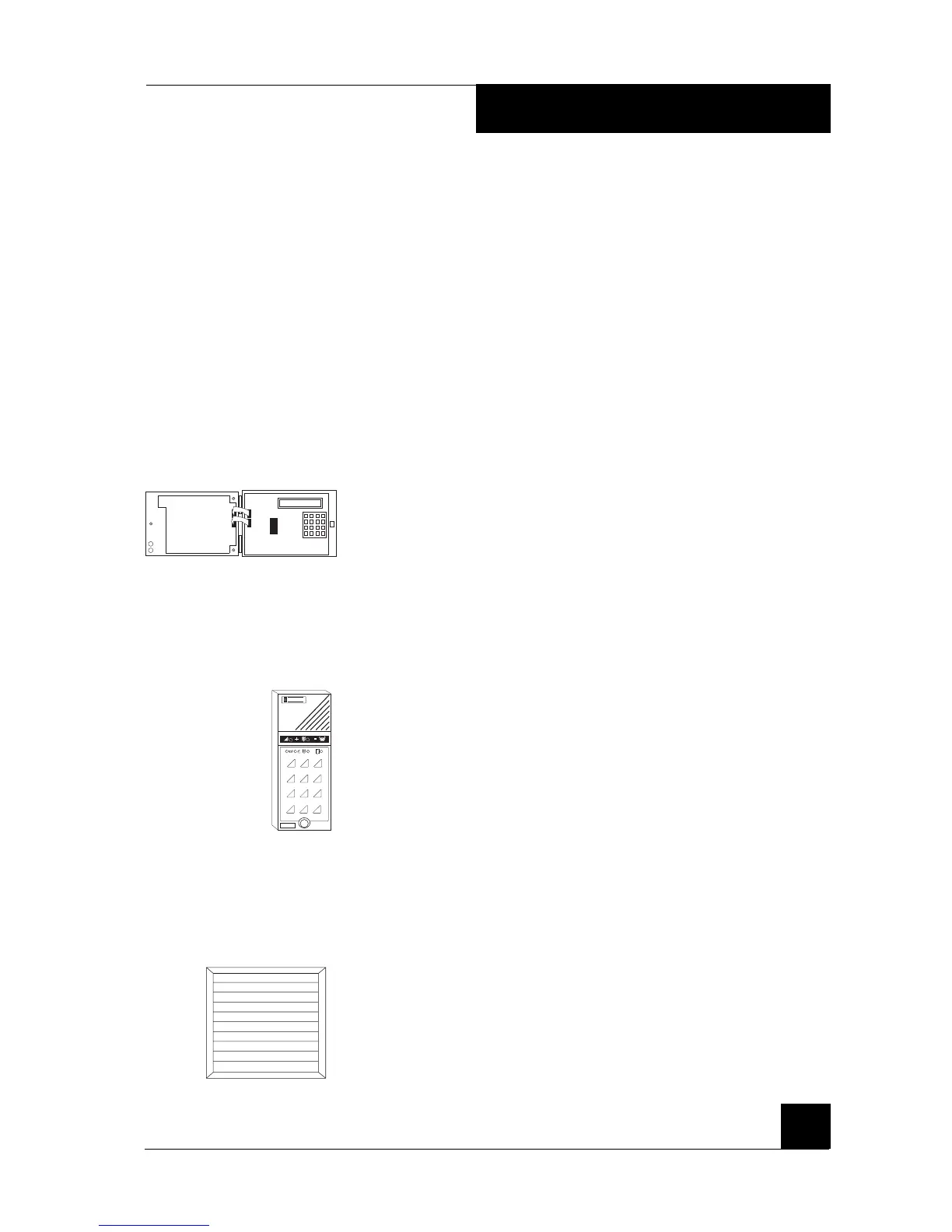

Placing and mounting
Central unit
The central unit is designed for wall mounting (there are three
screw holes in the back plate), in a secure room with normal
temperature, e.g. the buildings power room.
Place the transformer near the central unit.
The entrance phones(TP5) and keypads (M65)
Mount the entrance phones in the desired entrances at a height
of 120 to 140 cm, from the ground to the bottom edge of the
phone. Where provision for the disabled is required, a suitable
height is about 95 cm.
The entrance phone is rated for temperatures between 35°
and +55° C, and can be mounted indoors as well as outdoors.
If the entrance phone is mounted outdoors, you should seal
screw- and cable holes with a sealing compound (e.g. silicone),
to prevent water leakage.
The name boards
If Nameboards are to be used, and place each board next to
the appropriate entrance phone. The name board can either be
screwed to the wall or fastened behind a glass window (if any)
in the door leaf. The name board should contain the name of
the tenant, short code and floor. Note! Do not
forget to put a B in front of the short code.
3. INSTALLATION
123
456
89
0B
7
BEWATOR
A
BB
Våning Kortnr Namn
1
1
2
2
3
3
4
4
B0001
B0001
B0001
B0001
B0001
B0001
B0001
B0001
Olsson
Jonsson
Persson
Karlsson
Nilsson
Bengtsson
Johansson
Eriksson
