TG 500 – Beltpack transmitter
23
4. TG 500B beltpack transmitter

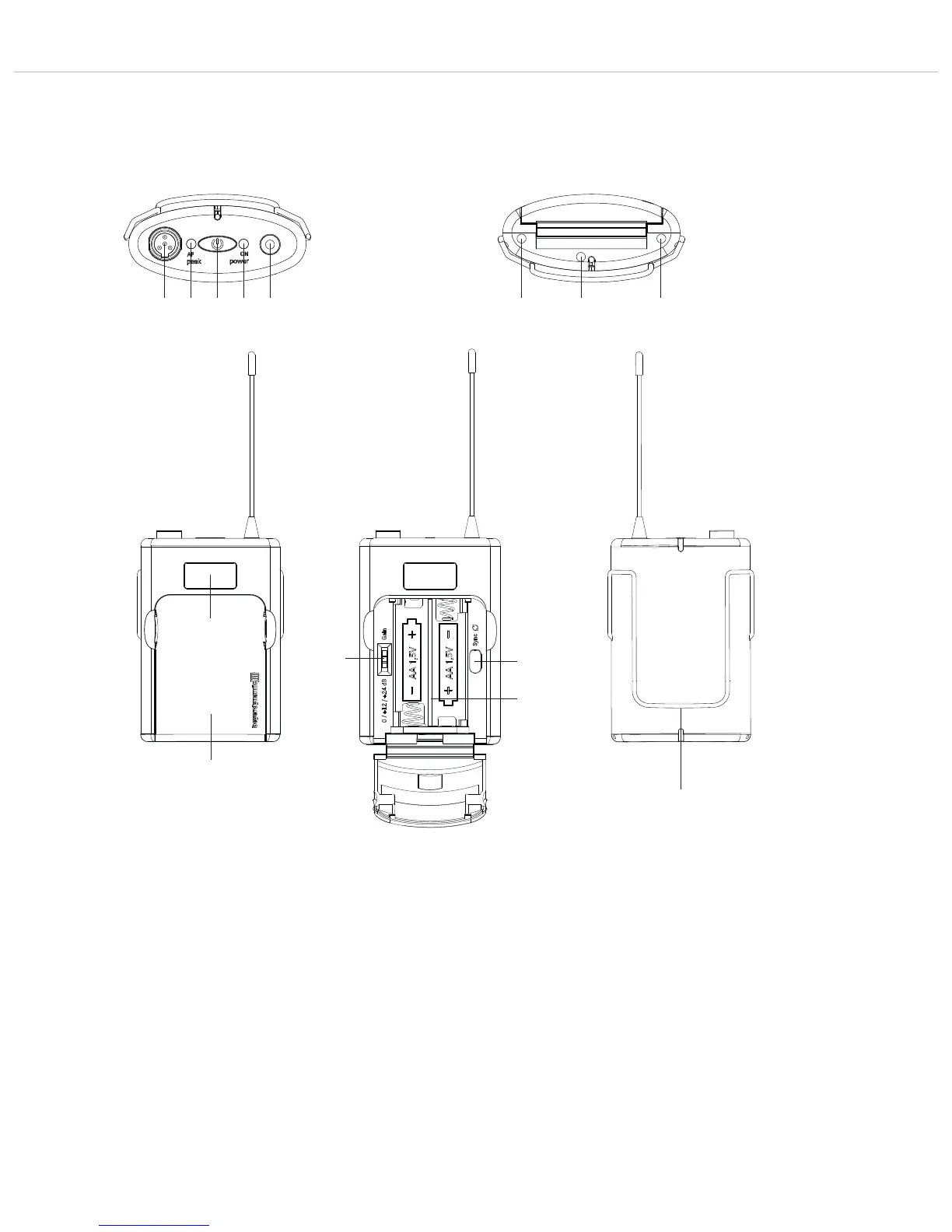

4.1 Operation and controls
 4-pin mini XLR connector (male) for
connecting microphones or instruments
 LED to indicate overloading
 On/off button
 LED for operating display
 Fixed antenna
 Charging contacts
 LCD
 Three-stage sensitivity switch (gain)
0dB / +12dB / +24dB
 Battery compartment cover
 Battery compartment
 Infrared interface for synchronisation
Belt clip






  
 

Figure 4-1: Upper side
Figure 4-3:
Front view
Figure 4-4:
Battery compartment
Figure 4-5:
Rear view
Figure 4-2: Underside
