TG 500 – Handheld transmitter
19
3. TG 500H handheld transmitter
3.1 Operation and controls
On/off button, lit
Charging contacts
Antenna
Colour ring, interchangeable
Battery compartment cover
Programmable mute button
LCD
Microphone head (fixed)
Battery compartment
Two-stage sensitivity switch (gain) 0 dB and 12 dB
Infrared interface for synchronisation
Battery indicator
! Mute function activated
" Lock function activated
# Text display
3.2 Inserting the batteries
• Unscrew the battery compartment cover in the direction
indicated by the arrow..
• Remove the battery compartment cover .
• Insert two alkaline AA 1.5V batteries or NiMH rechargeable
batteries in the battery compartment according to the
symbols.
• Push the battery compartment cover back up and tighten it.

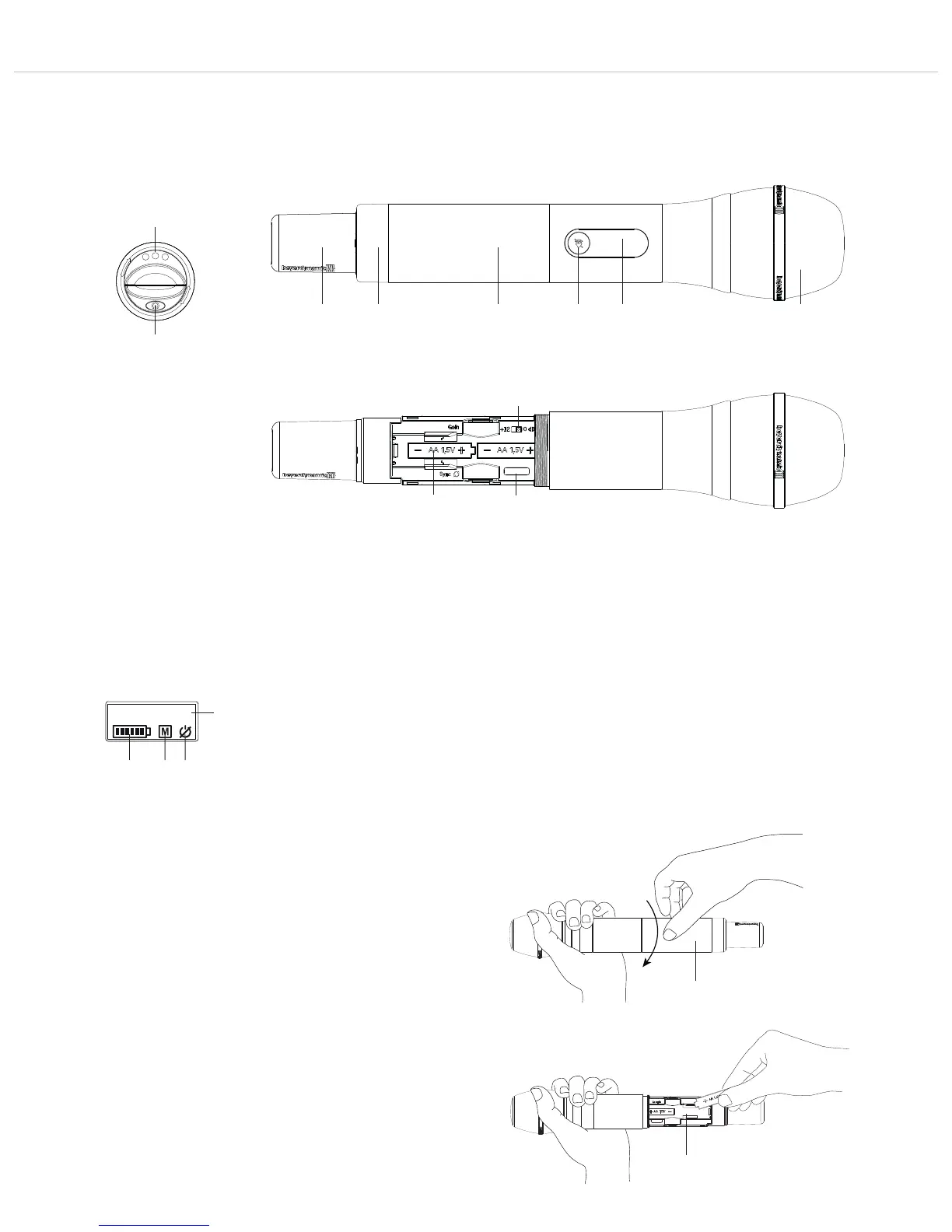

Figure 3-1: Transmitter base Figure 3-2: Front view
Figure 3-3: Battery compartment
Figure 3-4: TG 500H transmitter display
Figure 3-5: Unscrewing the
battery compartment
Figure 3-6: Inserting the batteries
!
"
#
