TG 500 – Diversity receiver
5
2. TG 500SR and TG 500DR diversity receiver
2.1 Positioning the receiver
• Position the receiver in the room in which the transmission is taking place.
• Position the receiver as close as possible to the transmitter. For optimum reception, there should be a line of sight between the trans-
mitter and the receiver. The minimum distance between the transmitter and receiver is 1m.
• Do not position the receiver directly next to digitally controlled devices.
2.2 Operation and controls

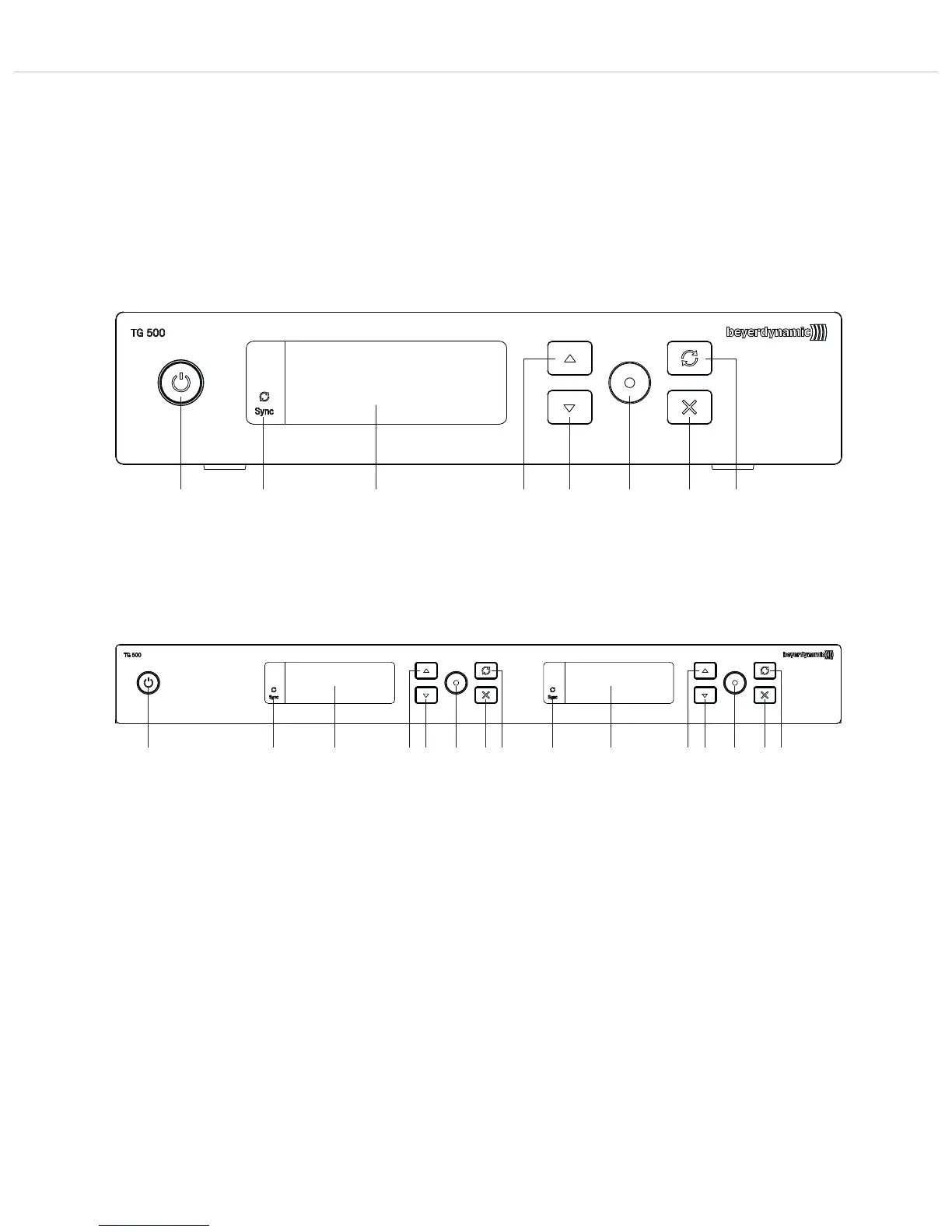

Figure 2-1: TG 500SR single-channel receiver – front
On/off button
Infrared interface for synchronisation of receiver and
transmitter
Backlit LCD
Up button
Down button
Enter button
Exit button
Button for synchronisation of receiver and transmitter
Figure 2-2: TG 500DR two-channel receiver – front
