TG 500 – Diversity receiver
6
  



 

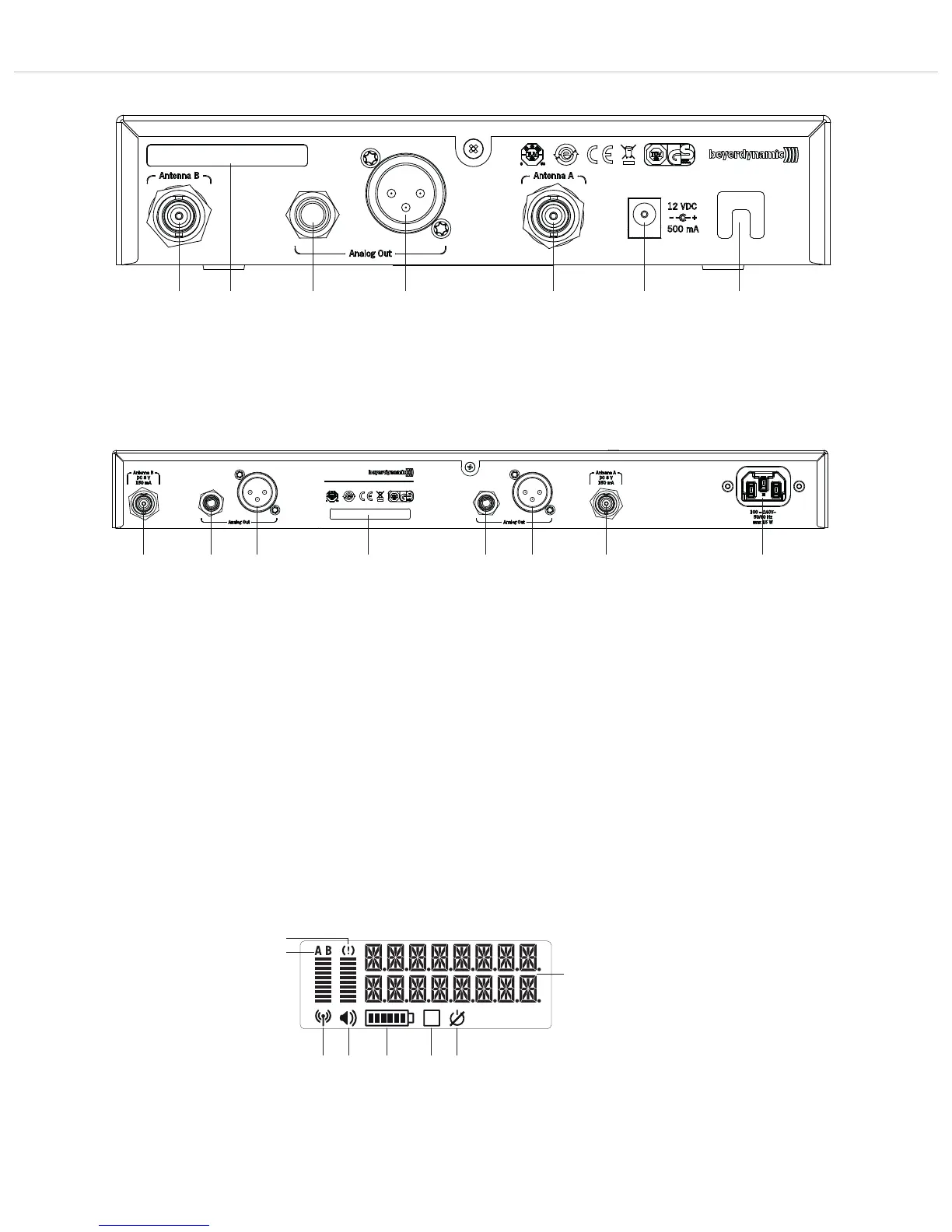

Figure 2-3: TG 500SR receiver – back
Figure 2-5: TG 500SR/DR receiver display
 Overload display
 Active diversity channel A or B
 HF level display
 Audio level display
 Transmitter battery display
 Transmitter mute function activated
 Transmitter lock function activated
 Text display
       
Figure 2-4: TG 500DR receiver – back
 Antenna input A or B
 Information about frequency band
 Audio output, 3-pin jack
 Audio output, 3-pin XLR
 TG 500SR: DC connector for power adaptor, 12V DC, 500mATG
500DR: Mains connection 100–240V, 50/60Hz, max. 15W
 Strain relief for the power adaptor cable
M

   
