Bigab 7-10 - Page 44

      G  G
44
© 2021 FORS MW Ltd
9 Manometer 27 Bolt
10 Manometer tting 28 Cover plate
11 T-nipple 29 Bayonet coupling
12 Adapter 30 Rubber seal
13 H-hose 31 Dust cover
14 H-hose 32 Angle nipple
15 H-hose 33 Straight nipple
16 H-hose 34 Rubber seal
17 H-hose 35 Straight nipple (choke)
18 H-hose

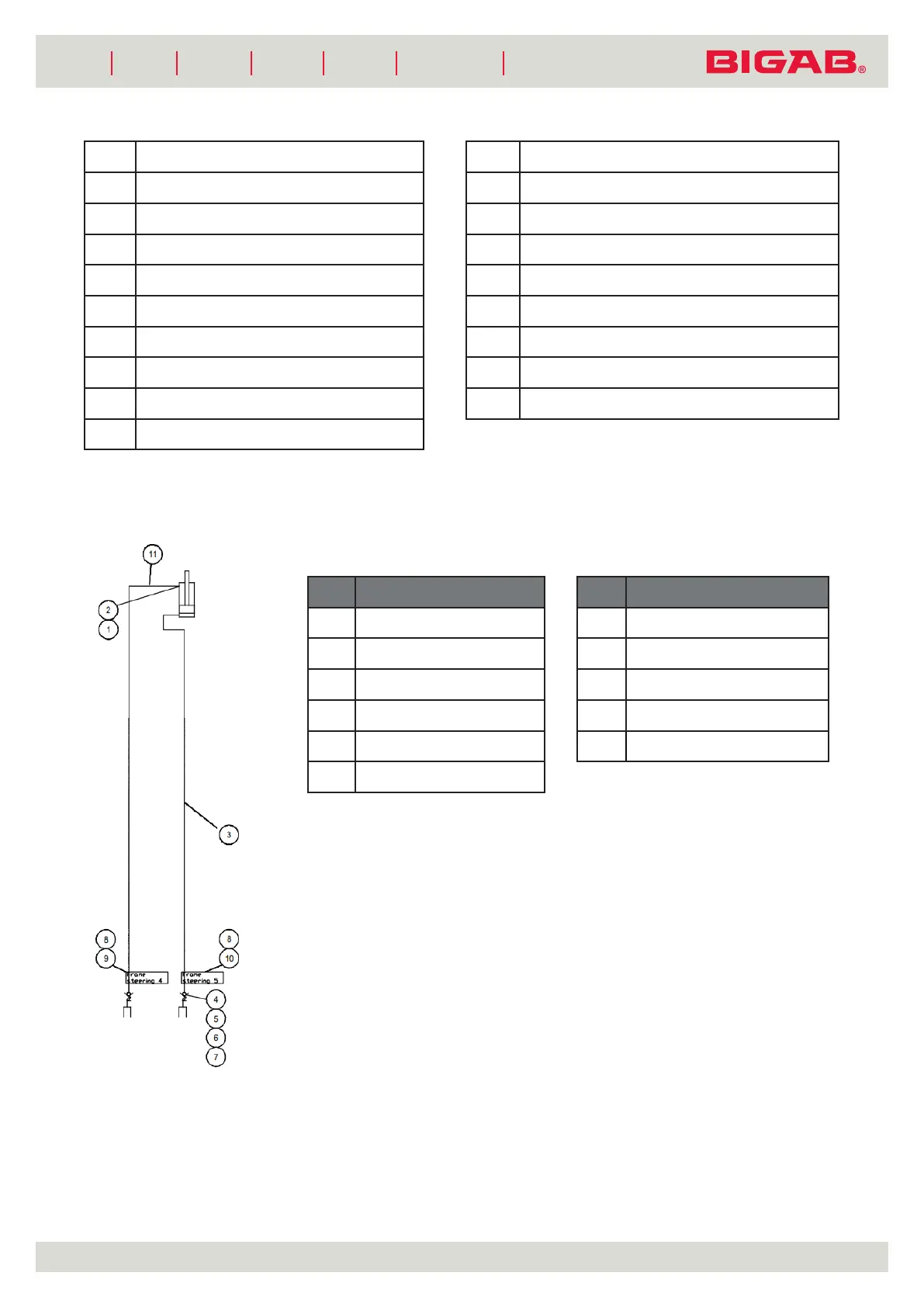

Steerable drawbar 7-10
Table 14. Steerable drawbar 7-10
Pos Description Pos Description
1
Straight nipple 7 Dust cover
2 Rubber seal 8 Heat shrink tube
3 H-hose 9 Sticker
4 Straight nipple 10 Sticker
5 Rubber seal 11 H-hose
6 Bayonet coupling
Hydraulic scheme.Steerable drawbar 7-10
