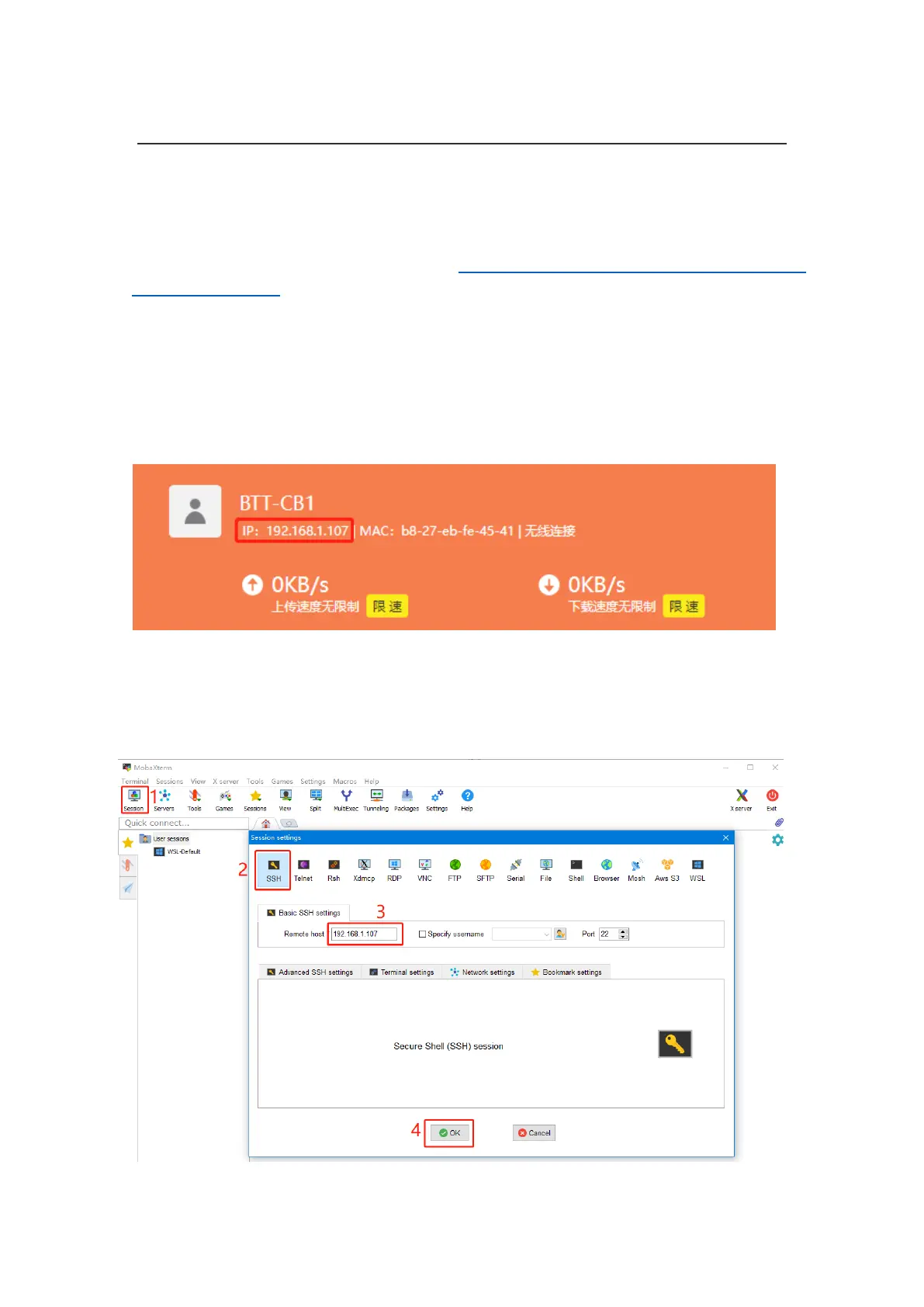

6. Configure Motherboard
6.1 SSH Connect to Device with CB1 Installed
1. Install the SSH application Mobaxterm: https://mobaxterm.mobatek.net/download-
home-edition.html
2. Insert the MicroSD card to the motherboard, and wait for the system to load after
power on, approx. 1-2 minutes.
3. The device with CB1 installed will automatically be assigned an IP after being
successfully connected to the network.
4. Find the IP address on your router page.
5. Open Mobaxterm and click "Session", and click "SSH", enter the IP you got in step
3 into Remote host, and click "OK". (Note: your computer and the printer needs to
be in the same network.)
