BIGTREETECH CB1 User Manual

Shenzhen Big Tree Technology Co., Ltd.
BIGTREETECH
5 / 22

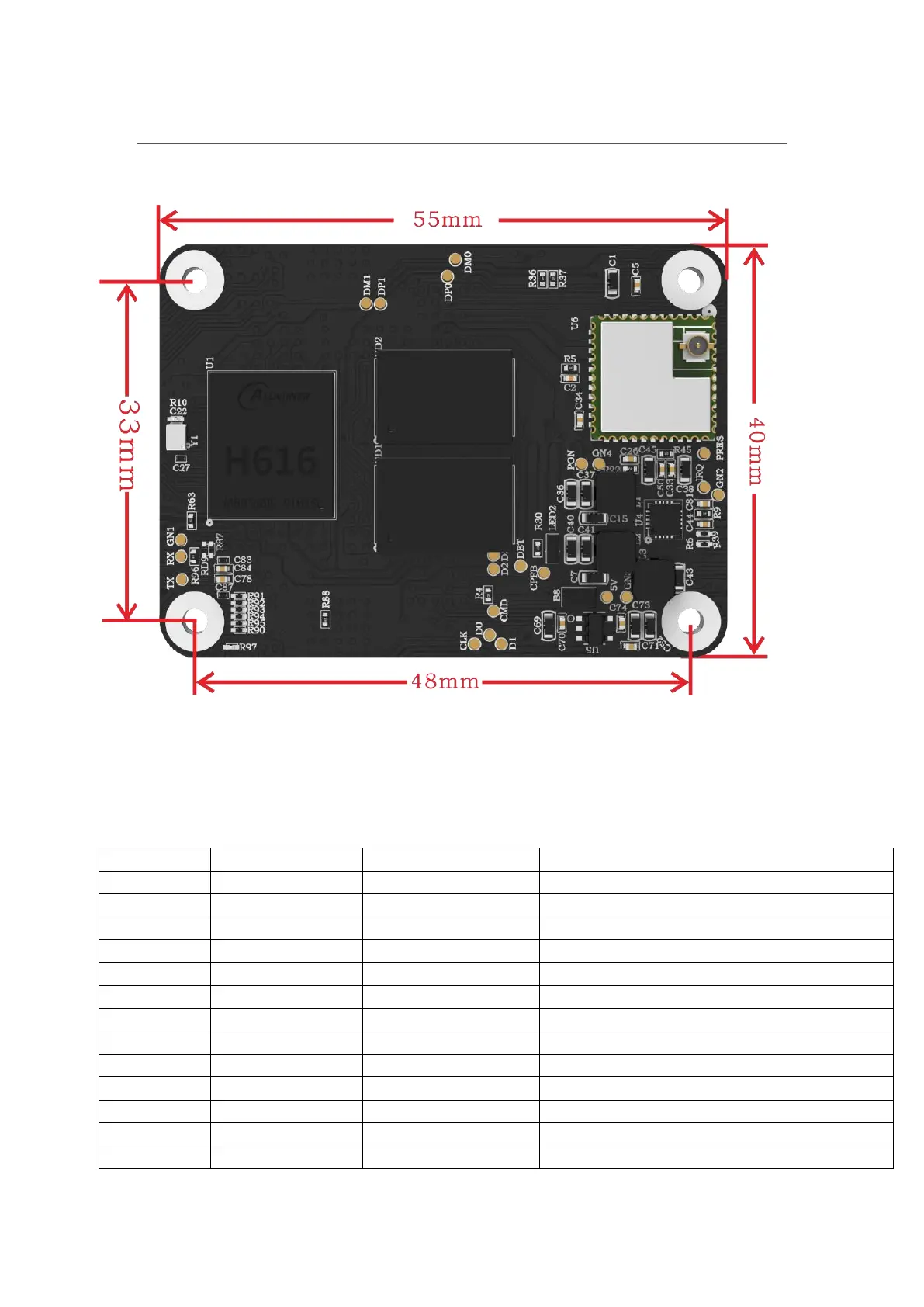

1.3 Dimensions
2 Peripheral Port
2.1 Pin
PIN
Connector
Signal
Description
1
A connector_01
GND
2
A connector_02
GND
3
A connector_03
NC
4
A connector_04
EPHY-TXP
Ethernet TX Positive
5
A connector_05
NC
6
A connector_06
EPHY-TXN
Ethernet TX Negative
7
A connector_07
GND
8
A connector_08
GND
9
A connector_09
NC
10
A connector_10
EPHY-RXP
Ethernet RX Positive
11
A connector_11
NC
12
A connector_12
EPHY-RXN
Ethernet RX Negative
13
A connector_13
GND
