2.4 POWER LOSS RECOVERY MODULE WIRING

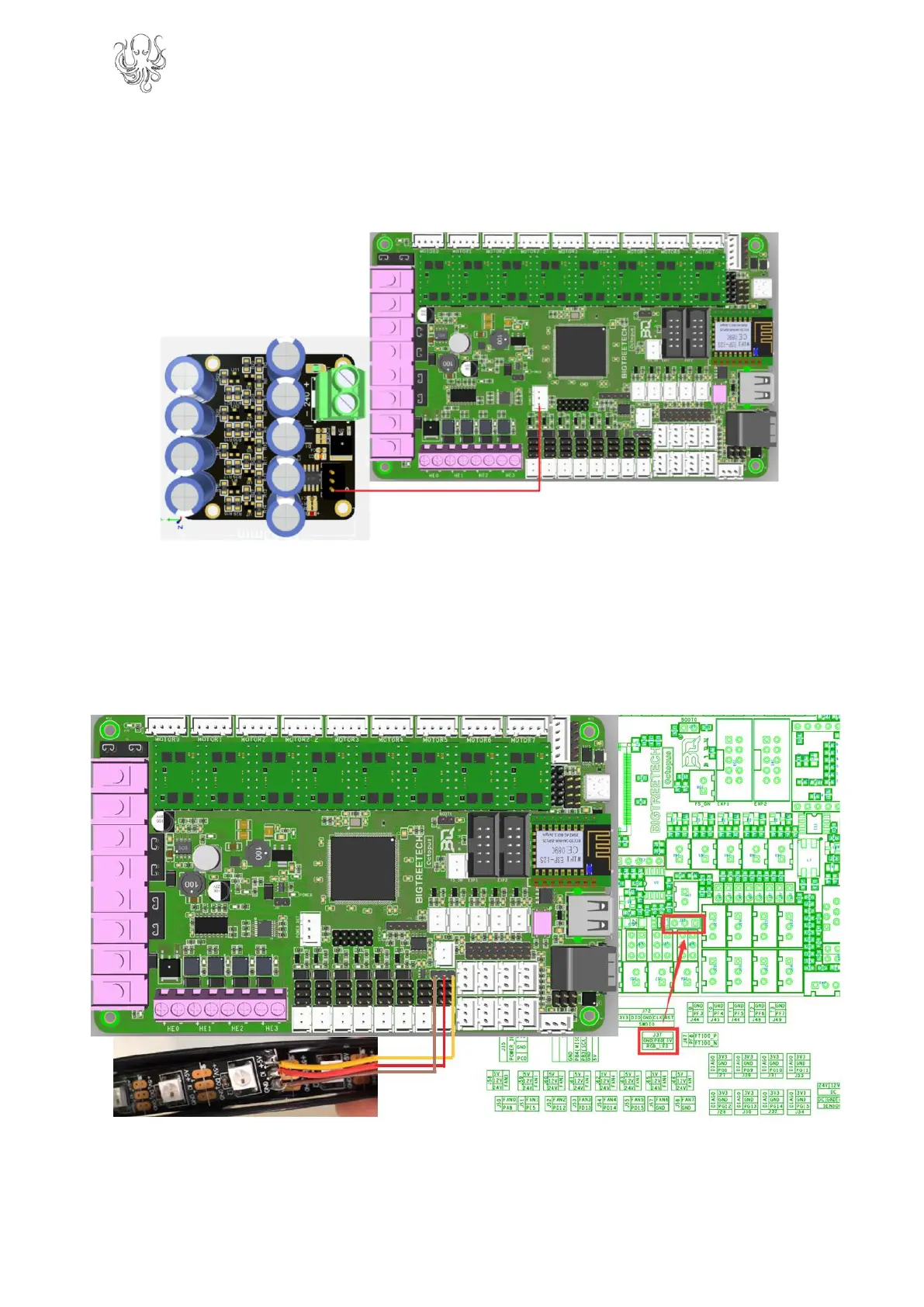

When using the BIGTREETECH mini UPS, wire it to the motherboard as shown in the
figure below. As always, never perform any work on the motherboard with power applied.
2.5 RGB LED WIRING
When using the motherboard with RGB LEDs you should wire them as shown in the image
below. The exact pinout of the connector can be found on the silkscreen on the underside
of the motherboard.
