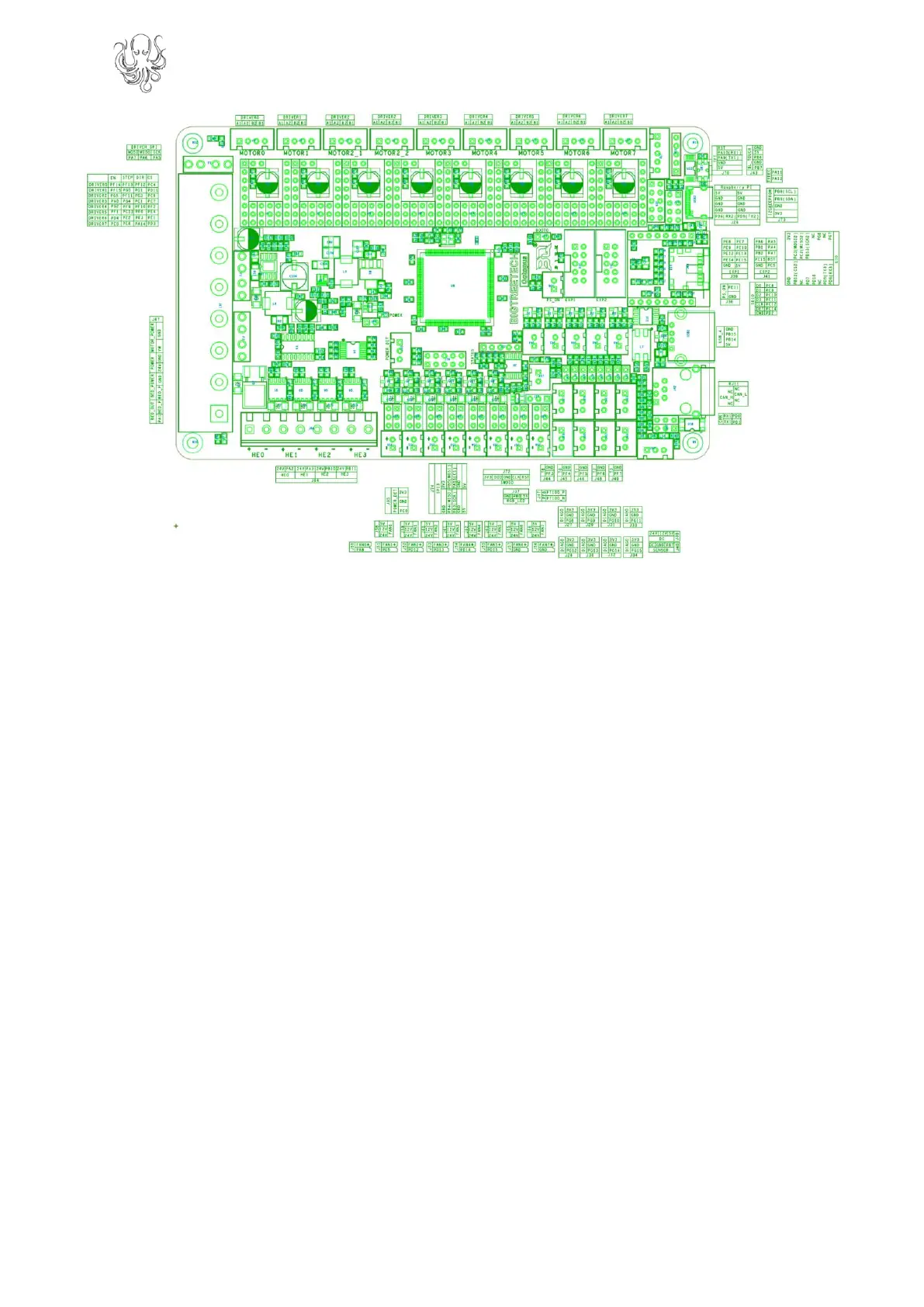

5.4 SPECIAL NOTE ON EXPANSION INTERFACES

Expansion interfaces are provided for SPI, UART and I2C. In the very first

production run of the Octopus the silkscreen on the underside of the PCB had

two pins that were mislabeled on the SPI3 interface and two on the Raspberry

Pi UART interface. To be sure that you are connecting your peripheral

correctly, please refer to the PINS.pdf document if using the SPI or UART

interface.

Questions and Answers:

Need help?

Do you have a question about the BIGTREETECH OCTOPUS and is the answer not in the manual?

General

Flash Memory	512 KB
RAM	128 KB
Input Voltage	12V-24V DC
Operating Voltage	3.3V
Clock Speed	180 MHz
PC Communication Interface	USB
Supported File Format	G-code
Ethernet	No
Wi-Fi	No
Bluetooth	No
Processor	ARM Cortex-M4 STM32F446ZET6
Stepper Driver Support	Up to 8 stepper drivers
Connectivity	USB, UART, SPI, I2C
Expansion Interface	UART, SPI, I2C
Temperature Sensor Interface	Supports thermistors
Digital I/O Pins	Available, quantity varies depending on configuration
Analog Input Pins	Available, quantity varies depending on configuration
