BIGTREETECH OCTOPUS User Manual

Produced by BIGTREETECH
Page 23 of 25
APPENDICES

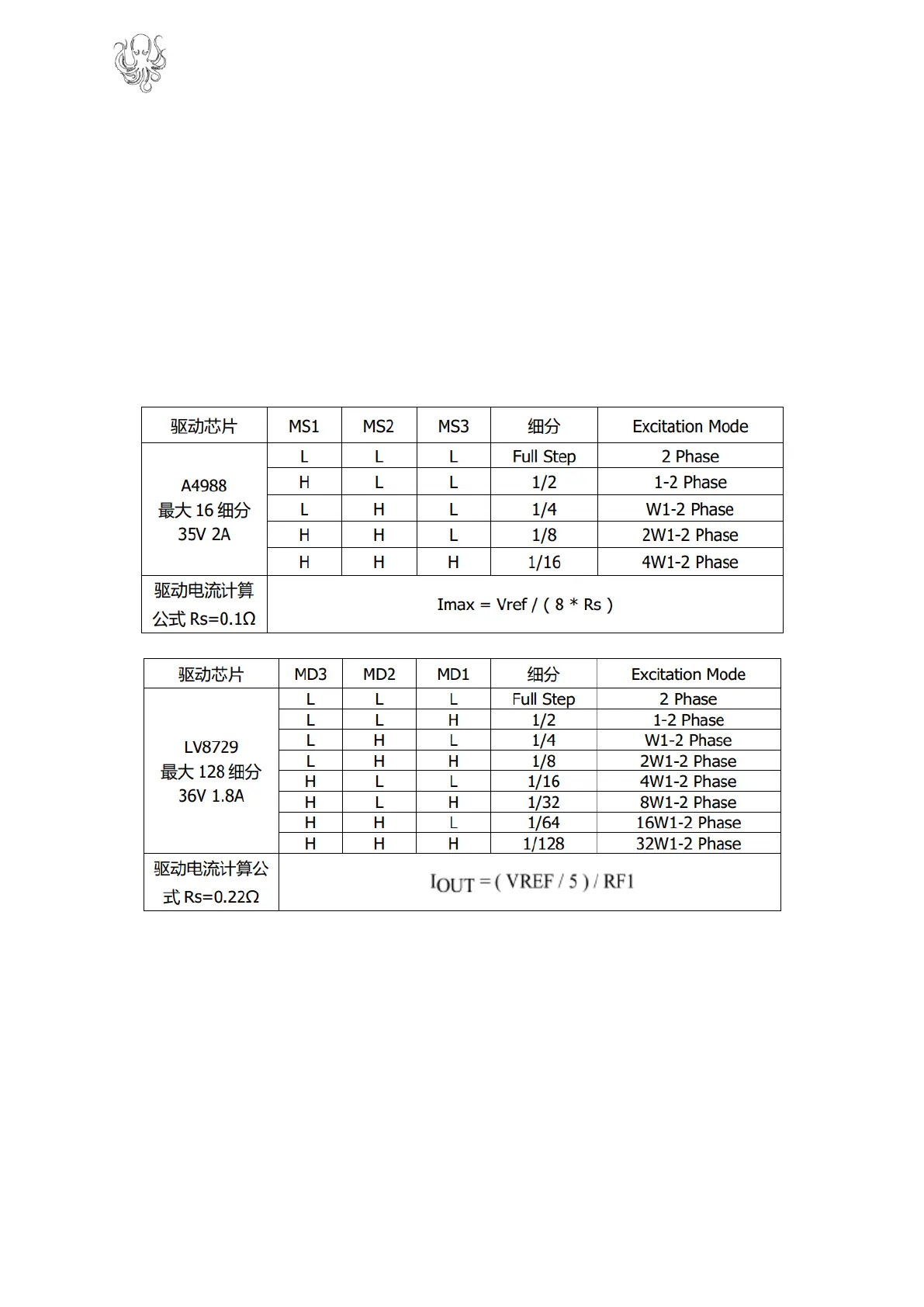

A1. COMMON DRIVER JUMPER TABLES
These tables are provided as a convenience to the user. Since we cannot speak on behalf
of the manufacturer of your drivers it is recommended that you still find the datasheet for
your drivers and reference the pin settings required for the microstepping factor that you
desire. Note that the pin naming and ordering in the tables below is not consistent but the
lowest number pin will always map to the pin named MS1 on the octopus and the
numbering follows from there.

BIGTREETECH OCTOPUS Specifications

General

Flash Memory	512 KB
RAM	128 KB
Input Voltage	12V-24V DC
Operating Voltage	3.3V
Clock Speed	180 MHz
PC Communication Interface	USB
Supported File Format	G-code
Ethernet	No
Wi-Fi	No
Bluetooth	No
Processor	ARM Cortex-M4 STM32F446ZET6
Stepper Driver Support	Up to 8 stepper drivers
Connectivity	USB, UART, SPI, I2C
Expansion Interface	UART, SPI, I2C
Temperature Sensor Interface	Supports thermistors
Digital I/O Pins	Available, quantity varies depending on configuration
Analog Input Pins	Available, quantity varies depending on configuration
