4. Mainboard power wiring method

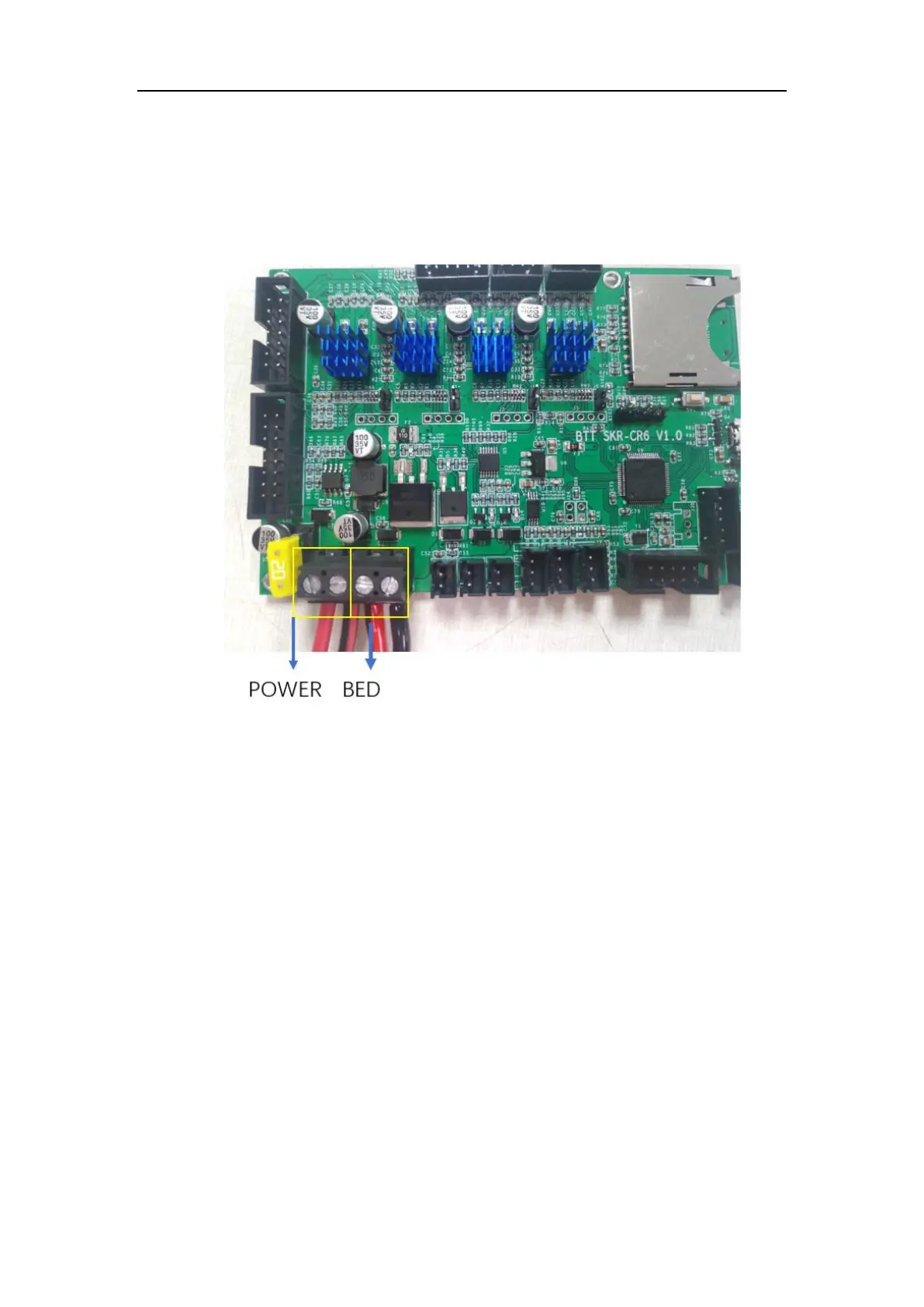

The main board uses switching power supply for power supply, the wiring method is
shown in the figure below.
The two wires on the left are the main input power wires, and the two wires on the
right are the hotbed wires. Pay attention to the positive and negative poles of the
power supply. The red wire is the positive pole and the black wire is the negative pole.
When wiring, be sure to disconnect the 220V power supply and distinguish the
positive and negative poles (the red positive and the black negative in the picture
above) to avoid burning the motherboard.
5. Motherboard and computer communication
After the motherboard is connected to the computer via a USB cable, the computer
will automatically install the driver. After the driver is installed, the motherboard can
