QoS example for your Network

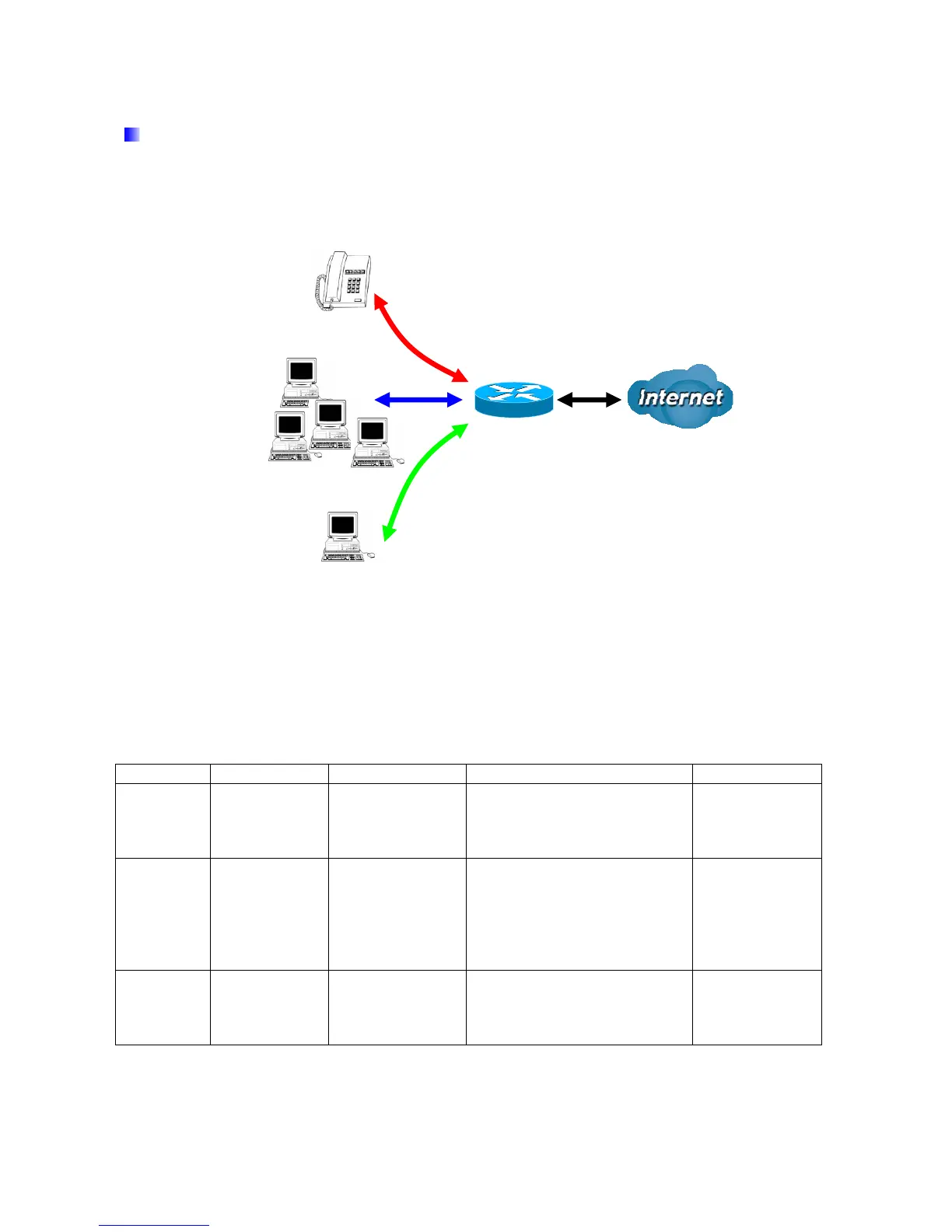

Connection Diagram
ADSL Subscription Rate
Upstream: 256 kbps
Downstream: 2048 Mbps
Example QoS Plan
Application IP or Ports Control Flow Data Rate Time Schedule
VoIP User 192.168.1.1 Outgoing Minimal 20% with high priority
for non-used bandwidth with
DSCP marking Class 1 Gold
Service.
Always
FTP Sever 192.168.1.100 Incoming and
Outgoing
outgoing: minimal 30%. Data
rate.
incoming: minimal 30%. Data
rate.
Both with low priority for
non-used bandwidth.
Only Working
Hours 9:00 to
17:00 Monday
to Friday.
HTTP web
browsing
users
80 Incoming and
Outgoing
outgoing: limited 20%. Data
rate.
incoming: limited 30%. Data
rate.
Always
HTTP web
browsing users
Restricted PC
Normal PCs
V
oIP
