Biltek SL600ACL - Adjustment; Circuit Board Diagram

14

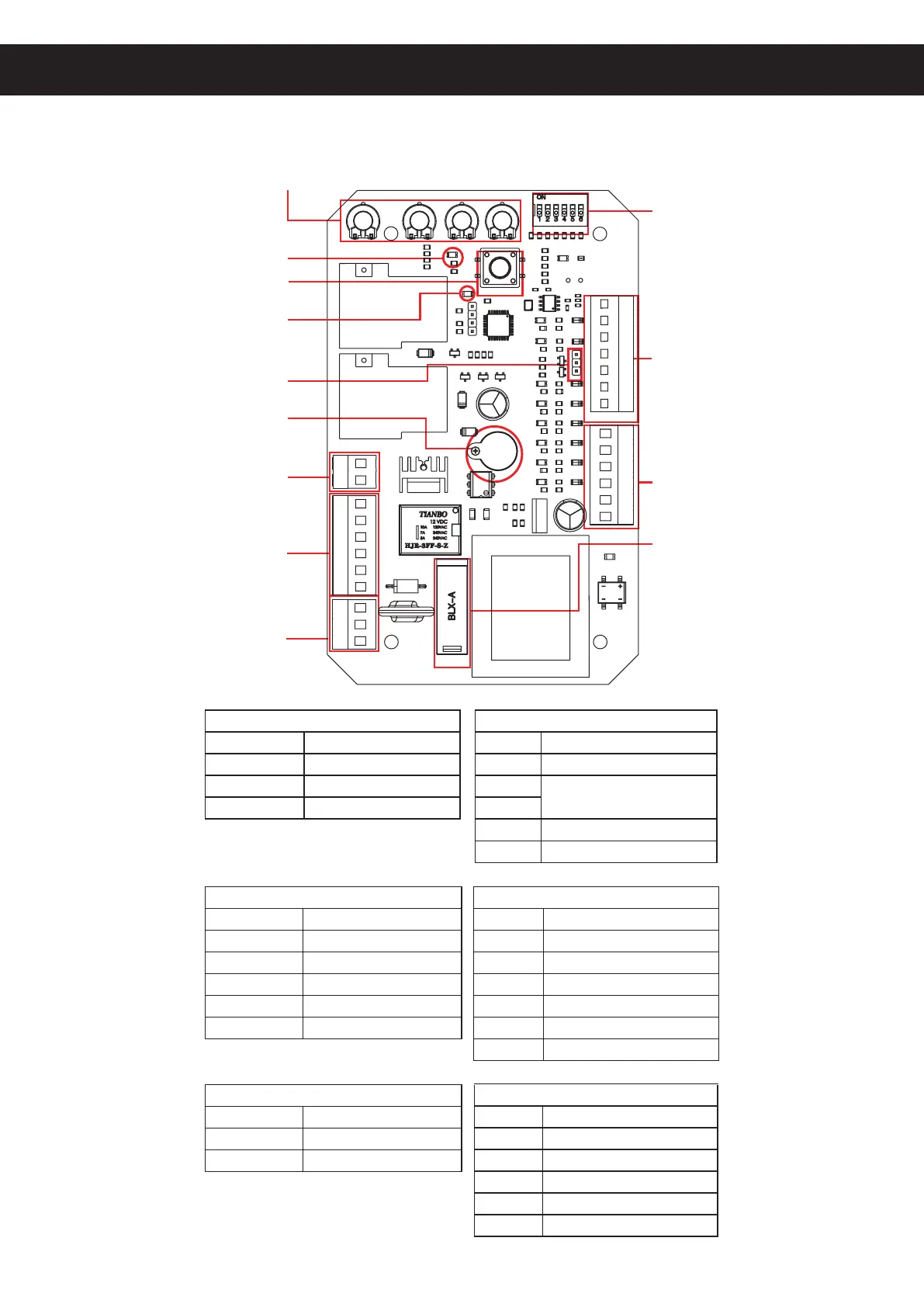

Circuit Board Diagram
Adjustment
Adjustment Knobs
Power Indicator
Pairing Indicator
DIP Switches
J5 Terminal
J2 Terminal
10A Fuse
Pairing Button
Alarm Switch
Alarm
J6 Terminal
J4 Terminal
J3 Terminal
Adjustment Knobs
VR1
Obstruction Sensitivity
VR2
Braking Force
VR3
Slow Stop Distance
VR4
Starting Force
DIP Switches
1
Deactivate Slow Start
2
Reverse Direction
3
Autoclose Time
4
5
Deactivate Collision Close
6
Remote Operation Mode
J4 Terminal
MOT1
Live Motor Pin
MOT2
Neutral Motor Pin
MCOM
Common Motor Pin
LAMPL
Live Alarm Light Pin
LAMPN
Neutral Light Pin
PE
Ground Pin
J5 Terminal
13
Open Limit Pin
12
Common Limit Pin
11
Close Limit Pin
10
Sensor Signal Pin
9
IR Ground Pin
8
IR NC Signal Pin
7
IR 15V Supply Pin
J2 Terminal
6
Pedestrian Signal Pin
5
Cyclical Signal Pin
4
Common Signal Pin
3
Stop Signal Pin
2
Open Signal Pin
1
Close Signal Pin
J3 Terminal
PE
Mains Ground Pin
L
Mains Live Pin
N
Mains Neutral Pin
