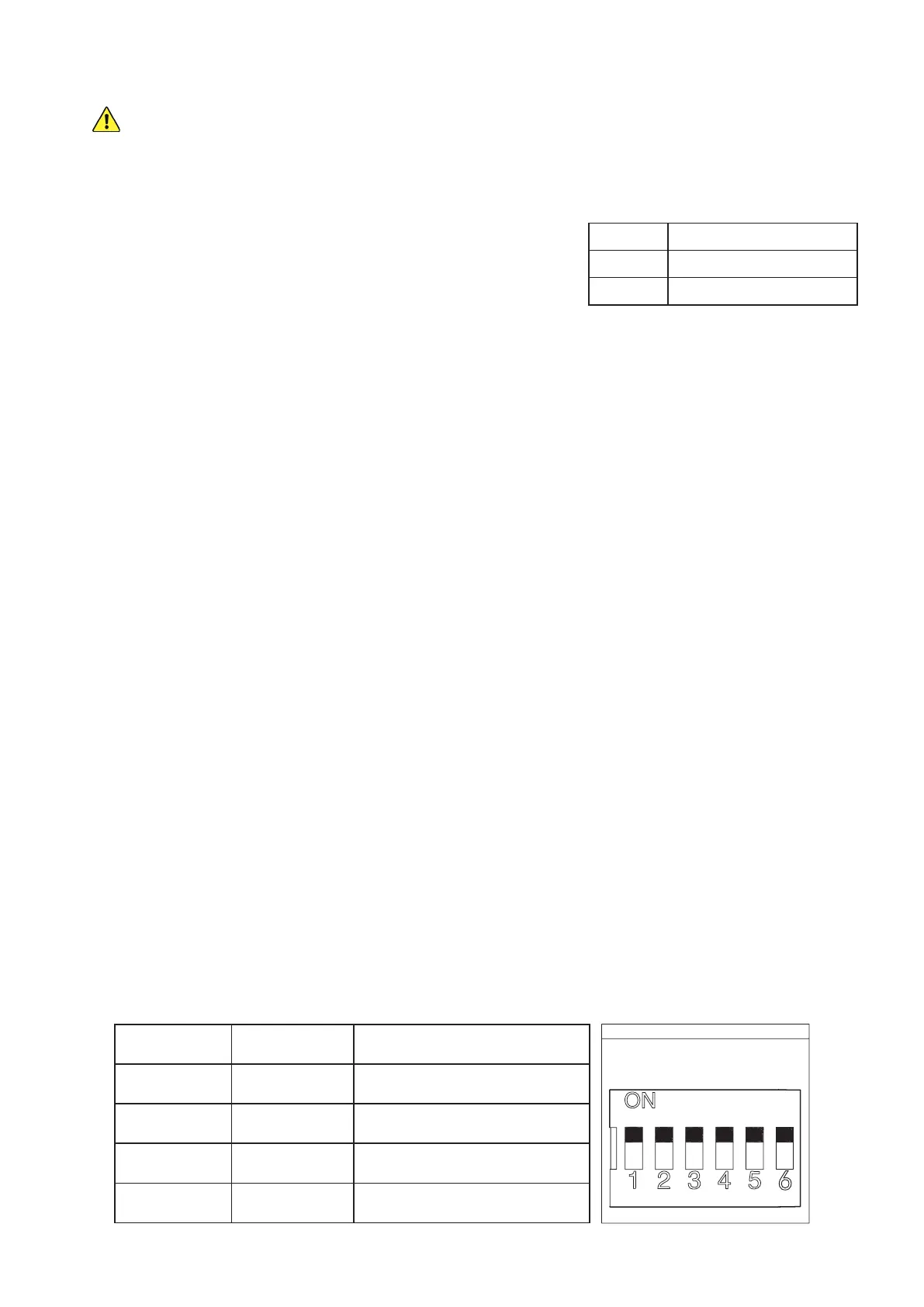

Biltek SL600ACL - Reversing Direction; Changing Command Modes; Toggling the Movement Alarm; Activating Autoclose

15
NEVER adjust any wiring or board setting while the gate is connected to power unless
specicallydirectedotherwise.Disconnectthecircuitfrompower,makeyouradjustment,
andthenrestorepowertotestthee󰀨ect.
DIP2 E󰀨ect
UP Right Side Operation
DOWN Left Side Operation
Reversing Direction
The default placement for this system is on the right side
of sliding gates when looking out from the property. This
is controlled by the up position of DIP Switch 2. If you are
installing your system on the left side of your gate, make sure
thatthisswitchisippeddownawayfromthewordON before
connecting the gate to power.
Changing Command Modes
The default command mode for this system is single-button operation. Pressing a single button on
theremotewillcyclethroughthecommandsOPEN→STOP→CLOSE→STOP.Thisiscontrolled
by the down position of DIP Switch 6.Ifyouprefertousefourseparatebuttonsforthedi󰀨erent
commands,makesurethatthisswitchisippeduptowardsthewordON before connecting the
gate to power. Be aware that this setting makes accidents and excessive wear from contradictory
commands more likely and is not recommended.
Toggling the Movement Alarm
By default, the circuit board produces an alarm or buzzing noise when the motor is active. This is
controlled by the position of the small wire connecting Pins 1 and 2 on the Alarm Switch terminal.
If you prefer to deactivate this safety feature, move the wire to connect Pins 2 and 3 on the
Alarm Switch terminal instead. Be aware that this can make accidents more likely and is not
recommended.
Activating Autoclose
Bydefault,thegateremainsopenindenitelyuntilitreceivesacommandtoclose.Thisiscontrolled
by the joint down position of DIP Switches 3 and 4. To set the gate to close 12 seconds after
reachingitsmaximumopen position,ipswitch 4 up towards the word ON. To set the gate to
close 24 seconds after reaching its maximum open position, ip switch 3 up but leave switch
4 down. To set the gate to autoclose after 36 seconds, ip both switches up. Because ofthe
additional risk involved in the gate moving without direct instruction and supervision, be sure that
the gate’s obstruction sensitivity, stop speed, and similar setting are working as intended. Using
the movement alarm, infrared sensor, and other safety equipment is also highly recommended
while autoclose is active. (DIP Switch 5canbeippeduptodisabletheautomaticclosurethat
occurs when a collision is detected, but this is not recommended for most users.)
DIP3 DIP4 E󰀨ect
UP UP 36 Second Delay
UP DOWN 24 Second Delay
DOWN UP 12 Second Delay
DOWN DOWN Manual Closure
