Binary B-660-MTRX-4X4 User Manual

22

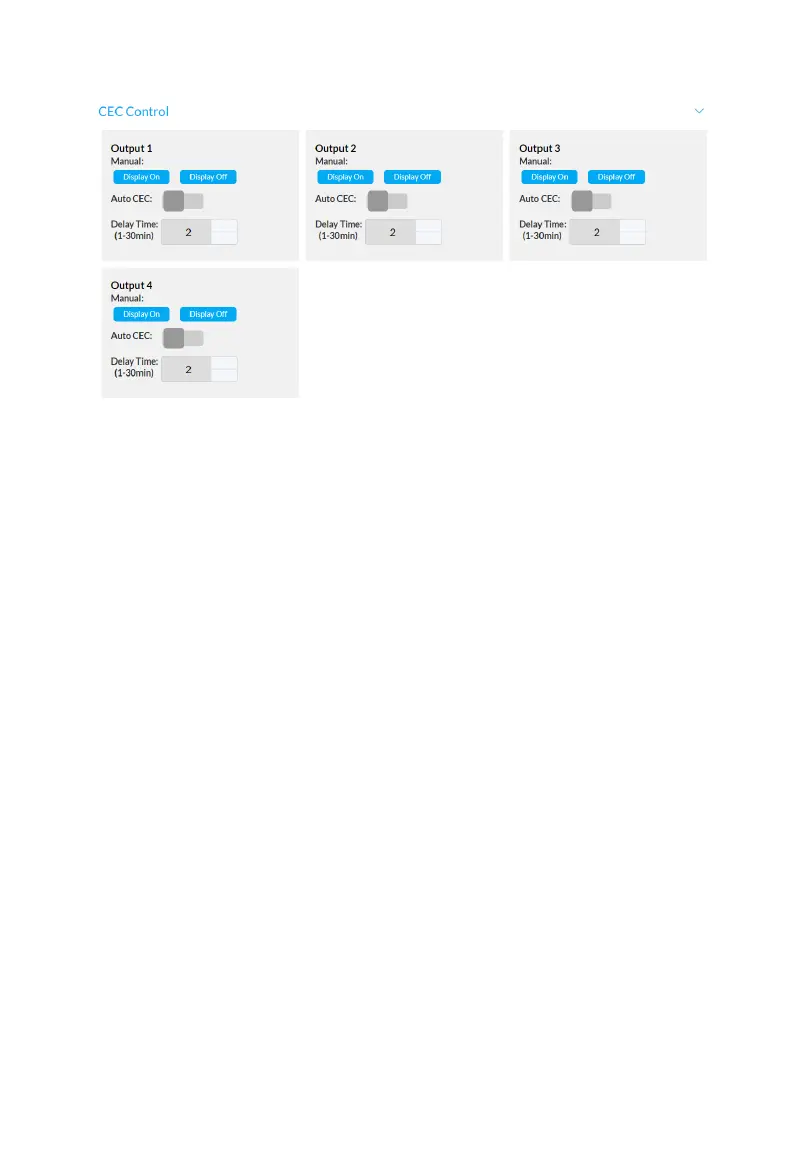

3. CEC Control
Note:
• The following commands require that the display is CEC-enabled.
• Auto CEC within the matrix is disabled by default, enable if auto CEC power is
required.
Display On: Click to power On a connected CEC-enabled display.
Display O: Click to power O a connected the CEC-enabled display.
Auto CEC Slider:
Auto: Select to have the matrix send a power On command to the connected display when
the output senses a video signal and send a power O command once the output senses a
loss of video signal. Power on commands are sent within 10secs of detecon of signal and
delay me for power O can be set from 1~30mins by changing the values in the Delay
Time selector box.
Manual: Select when manual control of the display will be handled through an outside
method such as an IR, RS-232, or IP control system. When manual is selected automac
sensing to send power commands to the display is disabled. Note that there might be a
5~10sec delay for the display to respond when sending the commands manually.
Delay Time (1~30min): Use the up/down arrows to select a delay me from 1~30mins for
powering o the display aer loss of video signal is detected. Note that this seng has no
funcon when the slider is set to Manual.
