Binder AB 01 - Word Message Panel Structure; Type Plate

AB 01 01/2009 page 7/26
1.2.4 Word message panel structure
Type / cause of hazard.
Possible consequences.
∅ Instruction how to avoid the hazard: prohibition.
¾ Instruction how to avoid the hazard: mandatory action.
Observe all other notes and information not necessarily emphasized in the same way, in order to avoid
disruptions which could result in direct or indirect injury or property damage.
1.3 Type plate

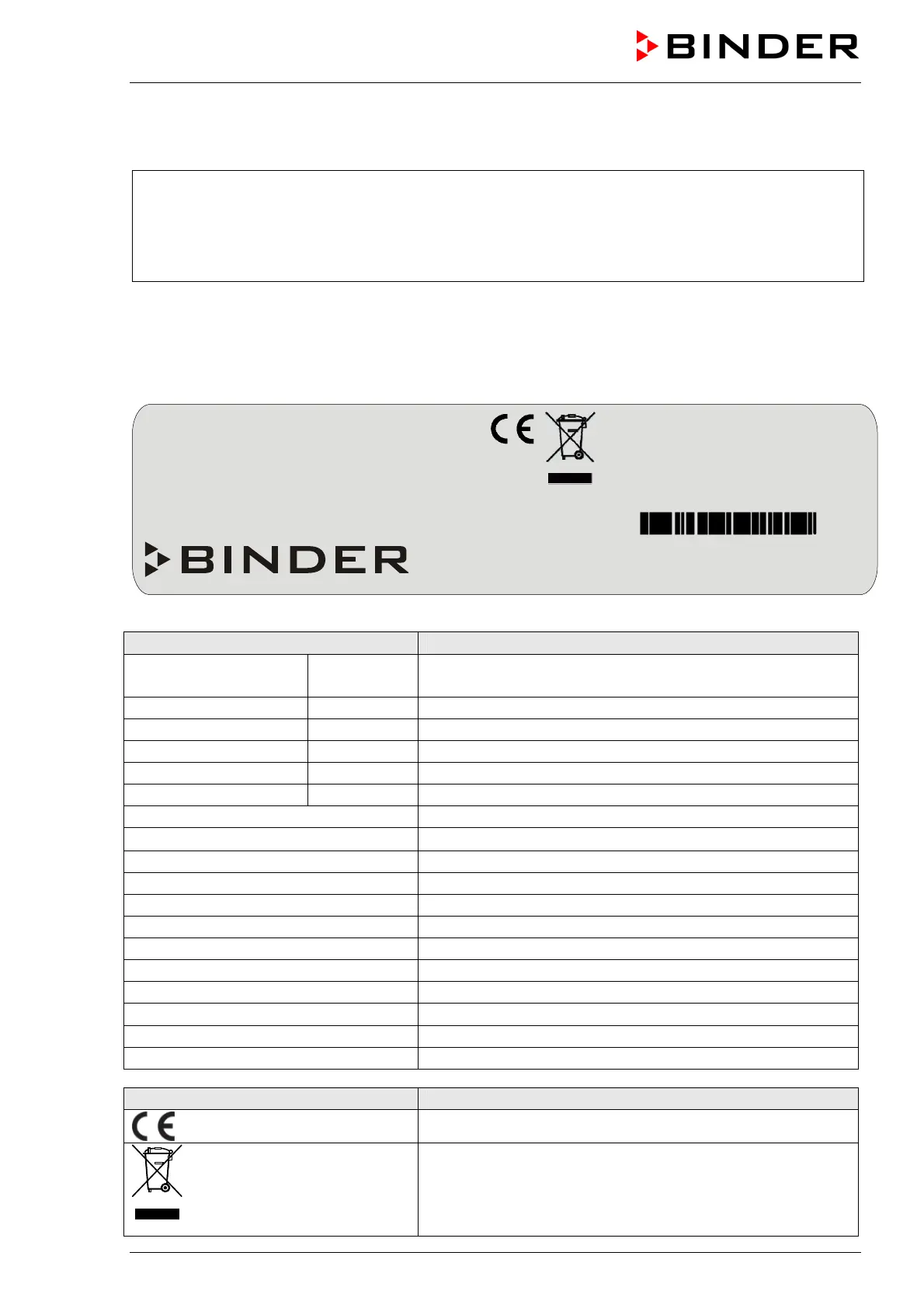

Figure 1: Type plate AB 01
Indications of the type plate Information
Nominal temperature --- °C
--- °F
Nominal temperature
Enclosure protection IP 20 IP type of protection 20 acc. to EN 60529
Temp. safety device DIN 12880 Temperature safety device acc. to standard DIN 12880
Class --- Temperature safety device
Art. No. 9052-0008 Art. No. 9052-0008
Project No. E2 (Stage and project no.)
0,02 kW Nominal power 0.02 kW
230 V 1 N ~
Nominal voltage 230 V ± 10%, single-phase unit
0,1 A Nominal current 0.1 Amp
50/60 Hz Power frequency 50/60 Hz
Green switch: unit on-off Green switch: unit on-off
Black switch: buzzer off Black switch: buzzer off
Red pilot lamp: alarm Red pilot lamp: alarm
Unit fuse 10 A semi-time lag Unit fuse 10 Amp semi-time lag
DIN socket max. 24 V AC/DC - 2,5 A DIN socket max. load: 24 V AC/DC - 2.5 Amp
Interface RS 422 Interface RS 422
AB 01 Model AB 01
Serial No. 00-00000 Serial No. 00-00000
Symbol on the type plate Information
CE conformity marking
Electrical and electronic equipment manufactured / placed on
the market in the EC after 13 August 2005 and to be
disposed of in separate collection according to directive
2002/96/EC on waste electrical and electronic equipment
(WEEE).
Nominal temperature --- °C 0,02 kW Green switch: unit on-off
--- °F 230 V 1 N ~
Black switch: buzzer off
Enclosure protection
Temp. safety device
IP 20
DIN 12880
0,1 A
50/60 Hz
Red pilot lamp: alarm
Unit fuse 10 semi-time lag
Class ---
DIN socket max. 24 V AC/DC - 2,5 A
Art. No. 9052-0008 US PATS 4585923 / 5222612 / 5309981 Interface RS 422
Project No. E2 5405194 / 5601143 / 5773287 / 6079403
D 78532 Tuttlingen / Germany
Tel. + 49 (0) 7462/ 2005-0
Internet: www.binder-world.com
AB 01 Serial No. 00-00000
Made in Germany
