AB 01 01/2009 page 9/26
2. Unit description
The Alarm Box AB 01 has been developed for the transmission of alarm messages released by the
communication software APT-COM™ 3 DataControlSystem from BINDER, to an already existing alarm
facility of the customer, or by use of the telephone dialing device TWG 01 from BINDER via telephone
line.
The Alarm Box AB 01 is equipped with a serial interface RS 422 for connection to the communication
software APT-COM™ 3 DataControlSystem from BINDER.
2.1 Equipment overview
(3) (2) (1)

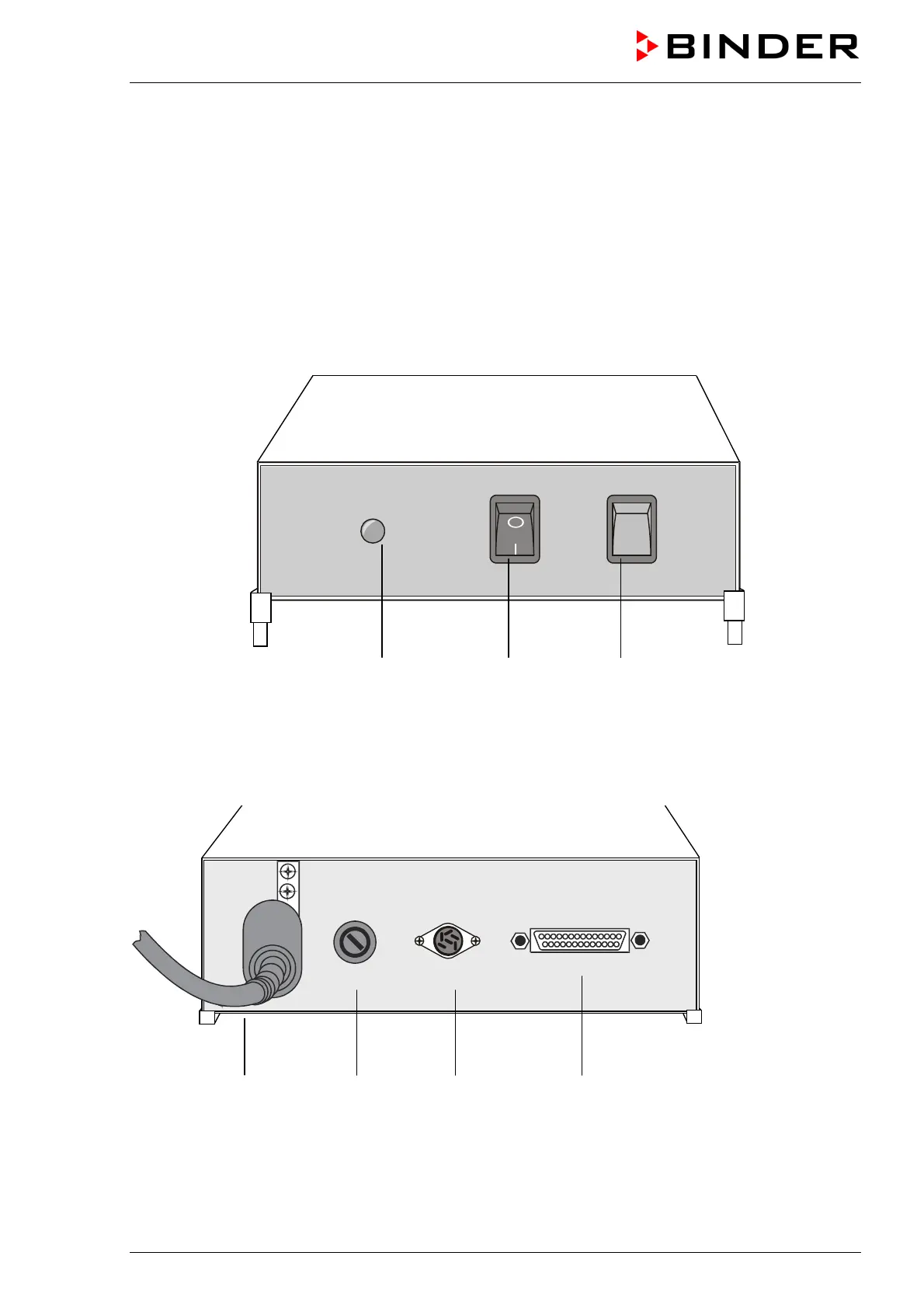

Figure 2: Front view of Alarm Box AB 01
(1) Main switch ON-OFF (lit = ON)
(2) Switch alarm buzzer (0 = mute)
(3) Alarm pilot lamp red (lit = alarm state)
(4) (5) (6) (7)
Figure 3: Rear view of Alarm Box AB 01
(4) Power cable
(5) Fuse holder
(6) DIN socket for zero-voltage relay alarm output
(7) Interface RS 422
