Chapter 2: Hardware installaon | 11
B560MX-E PRO | B560MH-E PRO

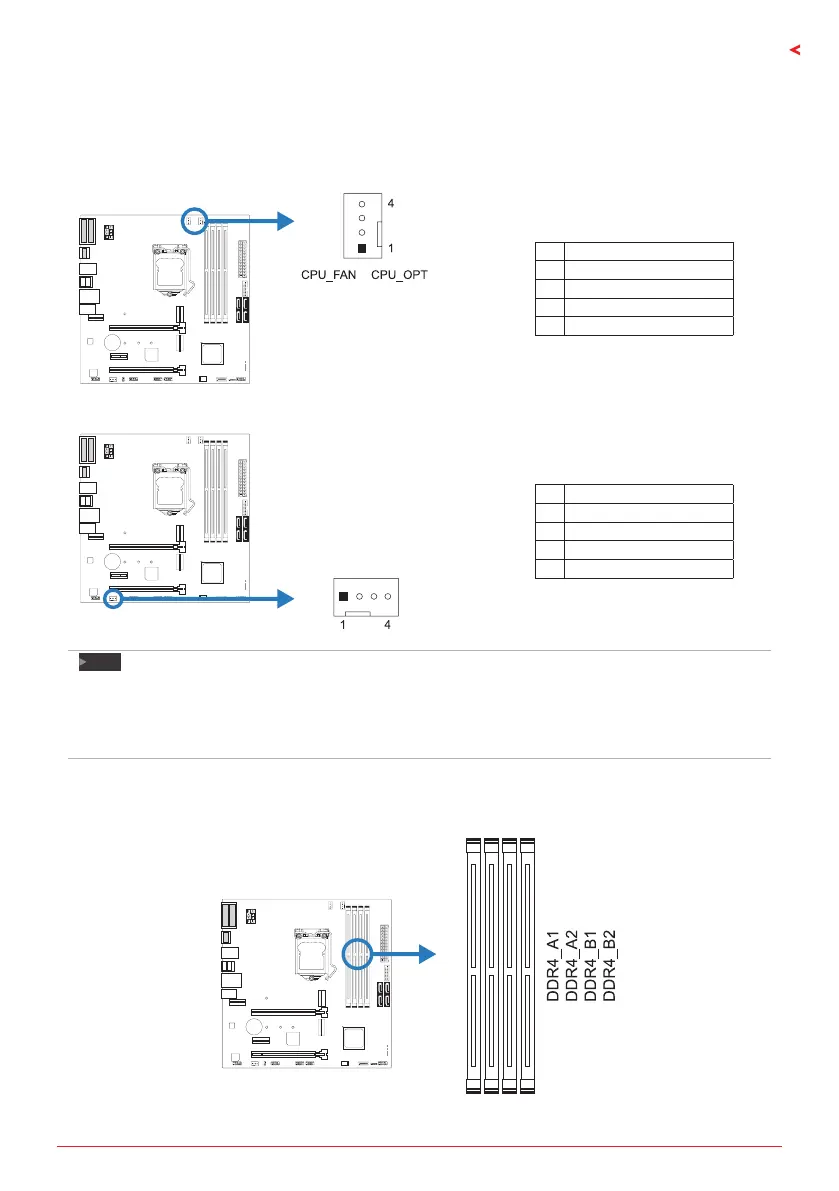

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN/ CPU_OPT: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
Note
»
  CPU_FAN,CPU_OPT,SYS_FAN1support4-pinand3-pinheadconnectors.Whenconnecngwith
wiresontoconnectors,pleasenotethattheredwireistheposiveandshouldbeconnectedto
pin#2,andtheblackwireisGroundandshouldbeconnectedtopin#1(GND).
 
»
CPUFanHeader(CPU_OPT):SupportwatercoolingfanandCPUfan.
2.4 Install System Memory
DDR4 Modules

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar B560MX-E PRO and is the answer not in the manual?

Biostar B560MX-E PRO Specifications

General IconGeneral
PCI Express x16 slots2
PCI Express x1 (Gen 3.x) slots1
Memory channelsDual-channel
Memory slots typeDIMM
Unbuffered memoryYes
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds2133, 2400, 2666, 2933, 3200, 3600, 3733, 3800, 3866 MHz
Audio chipRealtek ALC897
Component forPC
Motherboard chipsetIntel B560
PC health monitoringFAN, Temperature, Voltage
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64
Processor socketLGA 1200 (Socket H5)
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Wi-FiNo
LAN controllerRealtek RTL8111H
Ethernet interface typeGigabit Ethernet
HDMI version1.4
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
Cables includedSATA
Bundled softwareBullGuard
BIOS type-
DirectX version12.0
Parallel processing technology supportNot supported
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Width244 mm
