Biostar B560MX-E PRO User Manual

Глава 2: Установка оборудования | 11
B560MX-E PRO | B560MH-E PRO

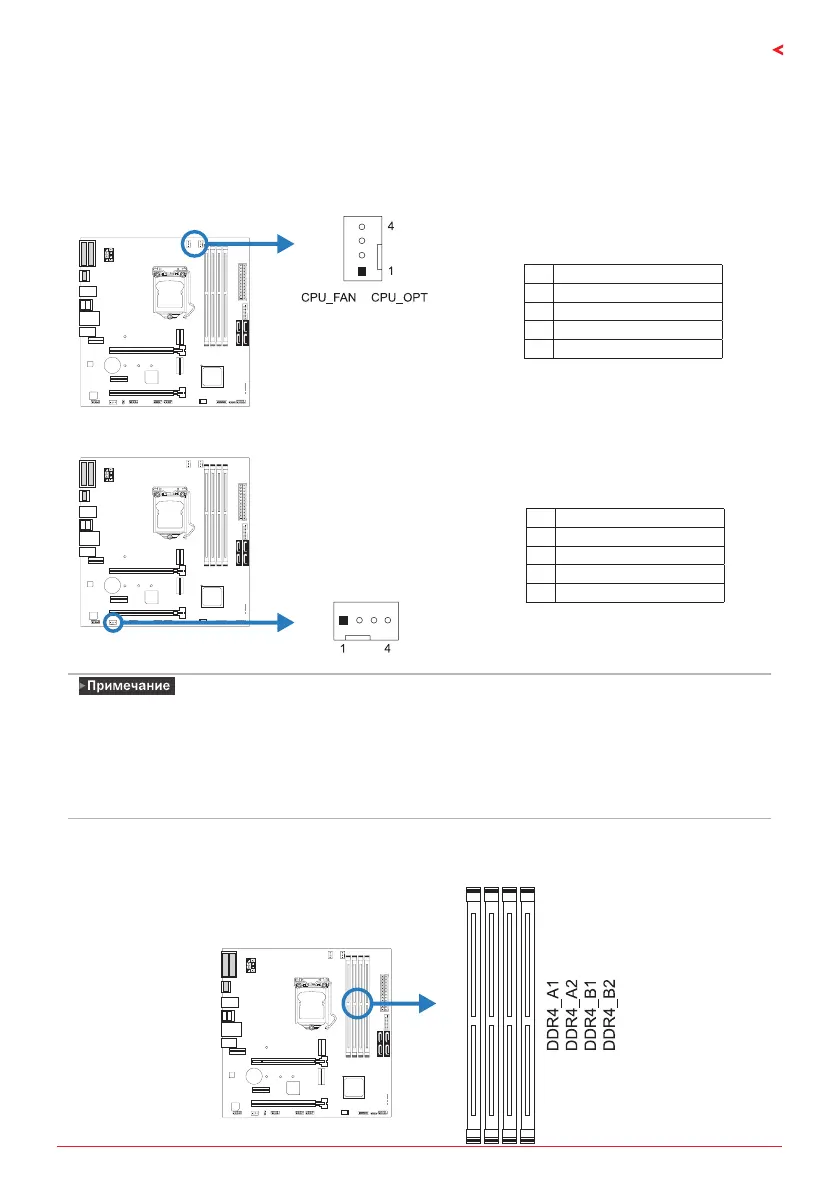

2�3 Подключение охлаждающих вентиляторов
Следующие штыревые соединители предназначены для охлаждающих вентиляторов,
встроенных в компьютер. Кабель и разъем вентилятора могут отличаться в зависимости
от производителя вентилятора.
CPU_FAN/ CPU_OPT: Штыревой соединитель вентилятора ЦП
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1: Штыревой соединитель вентилятора системы
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control

»





»


2�4 Установка системной памяти
Модули DDR4

Biostar B560MX-E PRO Specifications

General

PCI Express x16 slots	2
PCI Express x1 (Gen 3.x) slots	1
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3200, 3600, 3733, 3800, 3866 MHz
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel B560
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Cables included	SATA
Bundled software	BullGuard
BIOS type	-
DirectX version	12.0
Parallel processing technology support	Not supported
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
