Biostar B760MZ-E PRO User Manual

Chapter 2: Hardware installaon | 25
B760MZ-E PRO | B760MX-E PRO | B760MH-E PRO | B760MP-E PRO

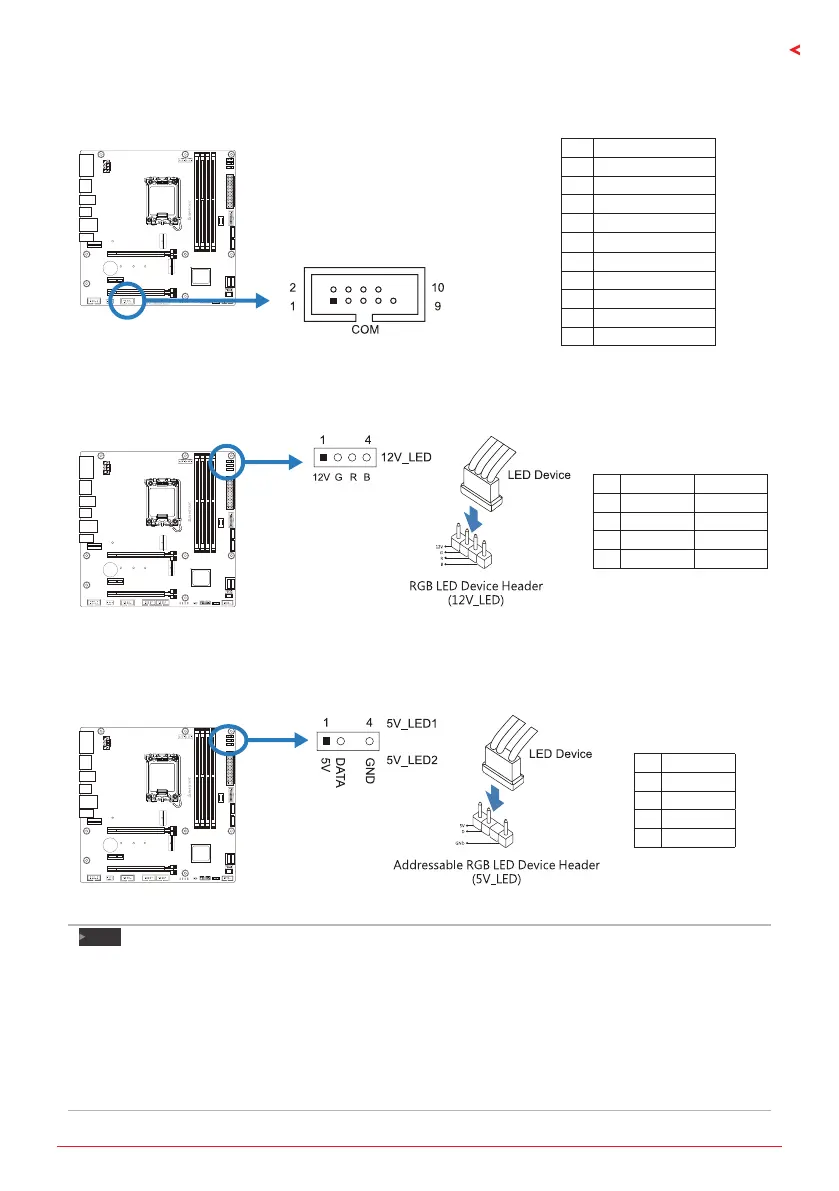

COM: Serial Port Header
The motherboard has a serial port header for connecng RS-232 Port.
Pin Assignment
1 Carrier detect
2 Received data
3 Transmied data
4 Data terminal ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
10 Key
12V_LED: RGB LED Device (5050 SMD) Header
This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).
Pin Cable Color Assignment
1 12V (Black) VCC12
2 G (Green) LED_GREEN
3 R (Red) LED_RED
4 B (Blue) LED_BLUE
5V_LED1/ 5V_LED2: Addressable RGB LED Device (WS2818B) Header
This header providers 5V power and Data control pins for RGB LED Device (WS2818B).
Pin Assignment
1 VCC5
2 Data
3 N/A
4 GND
Note
»
»
Ensure proper pin connecng to your LED device, wrong connecon may damage your LED device or
motherboard.
»
»
The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rang of 3A
(12V).
»
»
The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips
with the maximum power rang of 3A (5V).
»
»
Please use the Vivid LED DJ soware to control the LEDs. For detailed soware seng informaon,
refer to chapter 3.3 .

Biostar B760MZ-E PRO Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	5000, 5200, 5400, 5600, 5800, 6000 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
EPS power connector (8-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel B760
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Cables included	SATA

Weight and Dimensions

Width	244 mm
