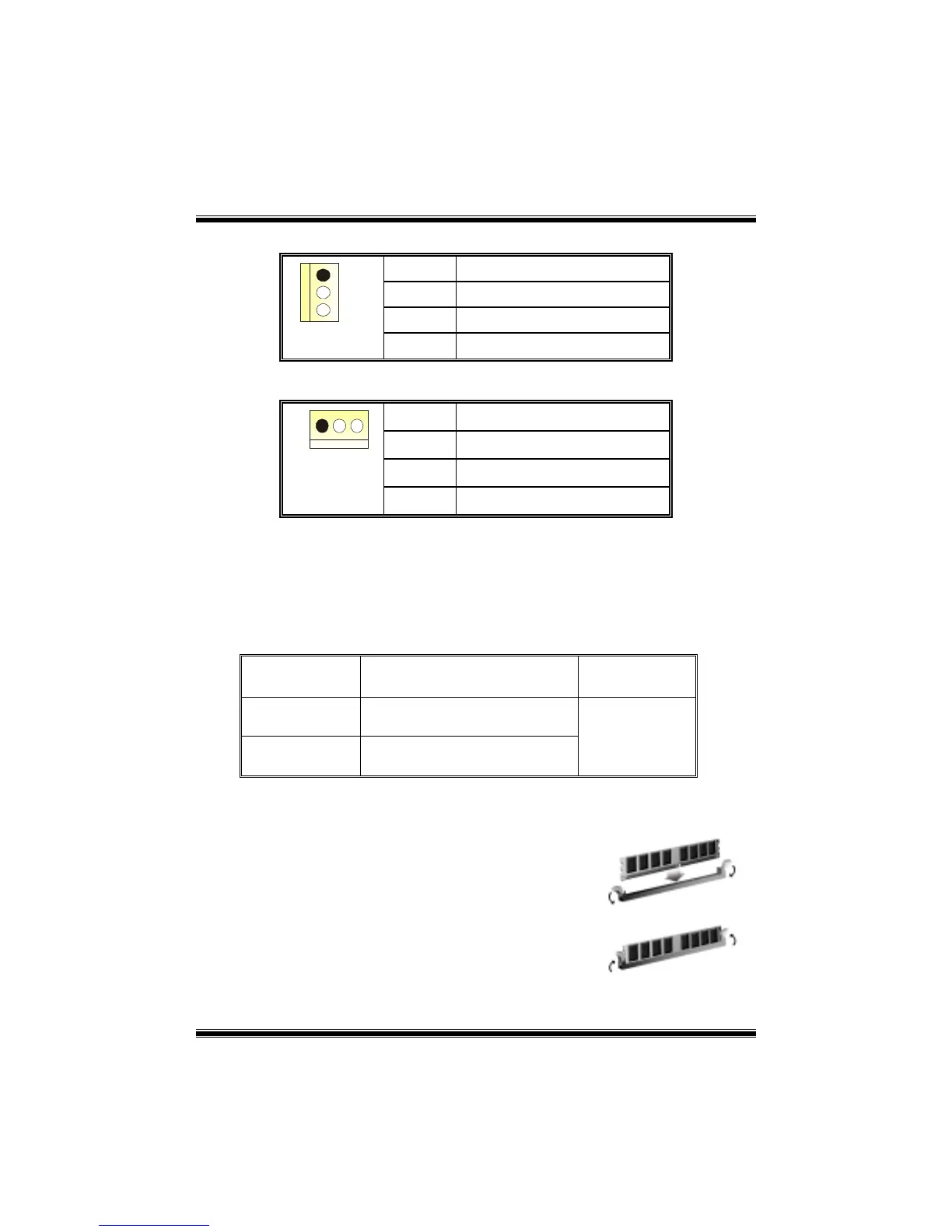

CPU Fan Header: JCFAN1
Pin Assignment
1
Ground
2
+12V
1
JCFAN1
3
FAN RPM rate Sense
System Fan Header: JSFAN1
Pin Assignment
1
Ground
2
+12V
1
JSFAN1
3
FAN RPM rate Sense
DDR DIMM Modules: DDR1, DDR2
DRAM Access Time: 2.5V Unbuffered/ Registered DDR 200 MHz (PC1600)/
DDR 266 MHz (PC2100)/ DDR 333 MHz (PC2700) Type required.
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)
DIMM Socket
Location
DDR Module Total Memory
Size (MB)
DDR 1 64MB/128MB/256MB/512MB/1GB
*1
DDR 2 64MB/128MB/256MB/512MB/1GB
*1
Max is
2GB
***Only for reference***
Installing DDR Module
1. Unlock a DIMM slot by pressing the retaining clips
outward. Align a DIMM on the slot such that the
notch on the DIMM matches the break on the slot.
2. Insert the DIMM vertically and firmly into the slot
until the retaining chip snap back in place and the
DIMM is properly seated.
