Biostar TPower I45 User Manual

Motherboard Manual
12
PEX16_1: PCI-Express Gen2 x16(x16/CrossFire x8 Speed) Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 8GB/s(4GB/s CrossFire)
simultaneously per direction, for an aggregate of 16GB/s(8GB/s CrossFire)
totally.
- PEX16_1 slot is reserved for graphics or video cards. The design of this
motherboard supports dual PCI-Express graphics cards using CrossFire
technology with multiple displays. When using CrossFire, this slot is master
and runs with x8 speed.
- To configure for CrossFire, please refer to the instructions of configuring
JPE1~JPE9.
PEX16_2: PCI-Express Gen2 x16(NC/CrossFire x8 Speed) Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
- PEX16_2 slot is reserved for graphics or video cards. The design of this
motherboard supports dual PCI-Express graphics cards using CrossFire
technology with multiple displays. This slot is slave when using CrossFire. If
PEX16_1 is set to x16 speed, then PEX16_2 would not be functional.
PEX1_1/PEX1_2: PCI-Express x1 Slots
- PCI-Express 1.0a compliant.
- Data transfer bandwidth up to 250MB/s per direction; 500MB/s in total.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
- 2X bandwidth over the traditional PCI architecture.

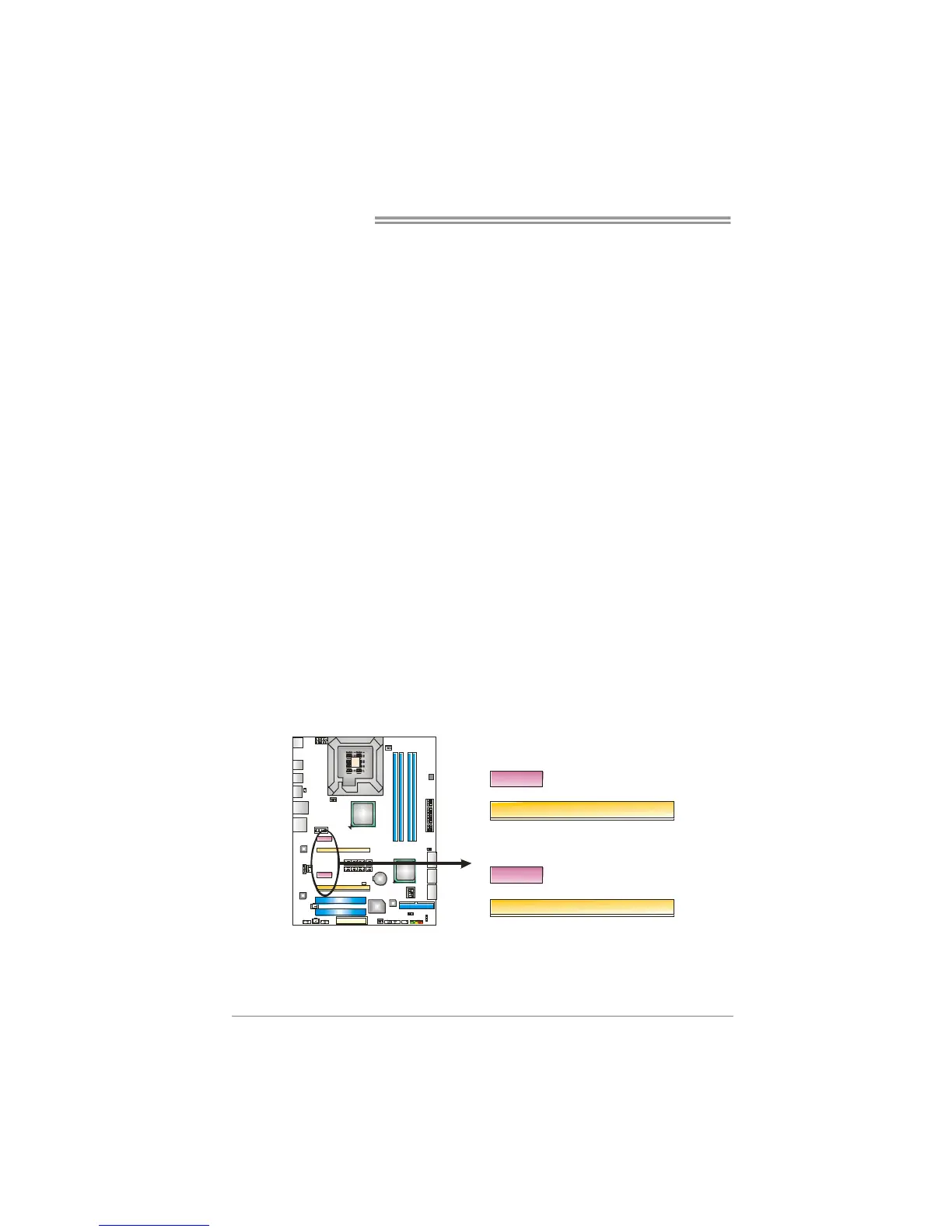

PEX16_1
PEX1_1
PEX1_2
PEX16_2

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
