Biostar TPower I45 User Manual

TPower I45
3
SPEC
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out connector x2 Supports digital audio out function
S/PDIF in connector x1 Supports digital audio-in function
CPU Fan header x1 CPU Fan power supply (with Smart Fan function)
System Fan header x2 System Fan Power supply
Clear CMOS header x1 Restore CMOS data to factory default
USB connector x3 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (8pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
LAN port x1
USB Port x6
Audio Jack x6
eSATA Port x2
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Connect to SATA devices
Board Size 244 (W) x 305 (L) mm ATX
OS Support
Windows 2000 / XP / VISTA
Biostar Reserves the right to add or remove support for
any OS with or without notice

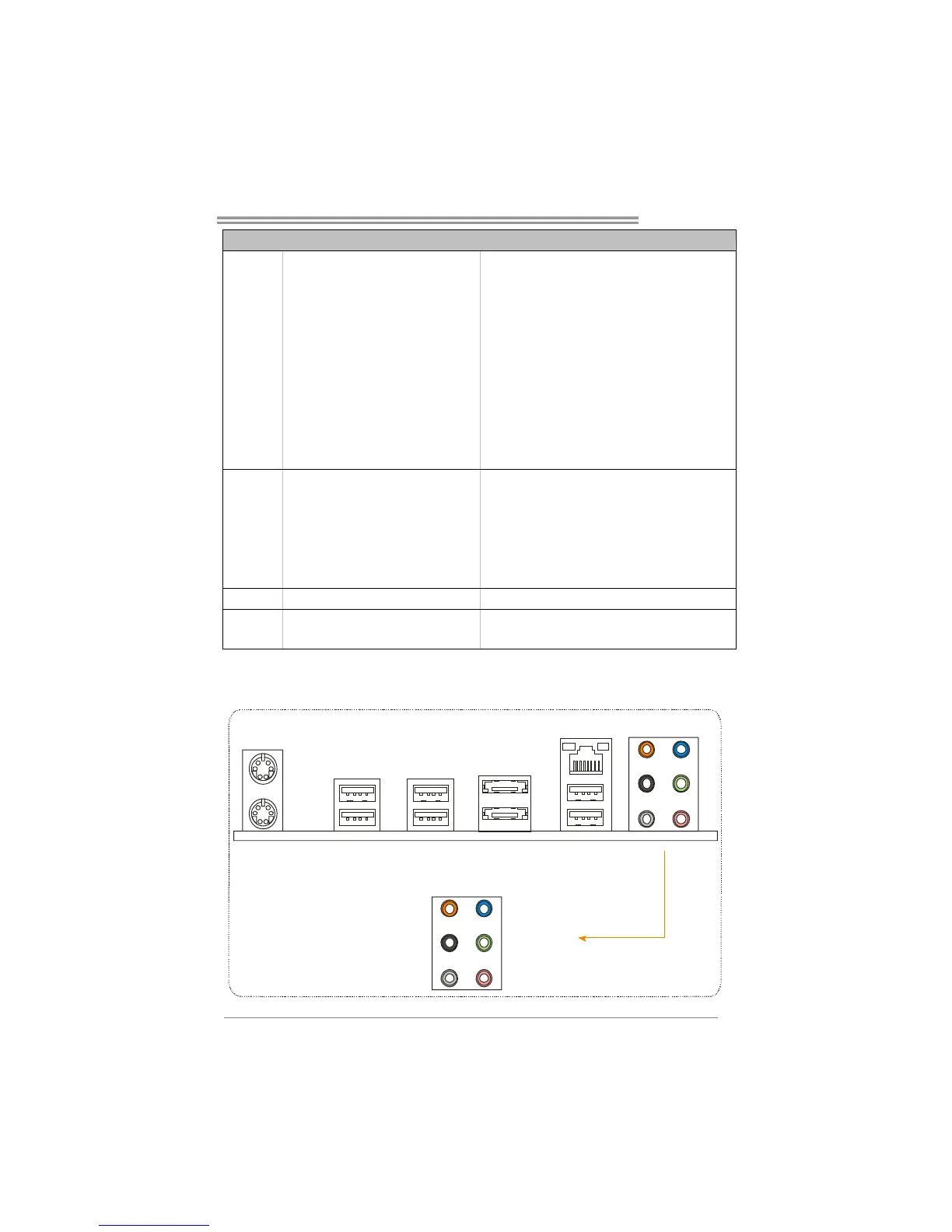

1.4 REAR PANEL CONNECTORS
Line In
Line Out
Mic In
Center
Rear
Side
PS/2
Mouse
PS/2
Keyboard
USBX2
ESATAX2USB X2
USBX2
LA N

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
