CHAPTER 5: RAID FUNCTIONS
5.1 O
PERATION SYSTEM
Supports Windows 2000 Professional, Windows XP, and Windows VISTA.
5.2 RAID ARRAYS
RAID supports the following types of RAID arrays:
RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for
many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 1+0 (Onboard): RAID 1+0 combines the techniques used in RAID 0 and RAID 1.
RAID 5 (Onboard): RAID 5 provides fault tolerance and better utilization of disk capacity.
5.3 HOW RAID WORKS
RAID 0:
The controller “stripes” data across multiple drives in a RAID 0 array system. It breaks
up a large file into smaller blocks and performs disk reads and writes across multip le
drives in parallel. The size of each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and offers high bandwidth.
Features and Benefits
 Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the
platform.
 Uses: Intended for non-critical data requiring high data throughput, or any
environment that does not require fault tolerance.
 Benefits: provides increased data throughput, especially for large files. No
capacity loss penalty for parity.
 Drawbacks: Does not deliver any fault tolerance. If any drive in the array
fails, all data is lost.
 Fault Tolerance: No.

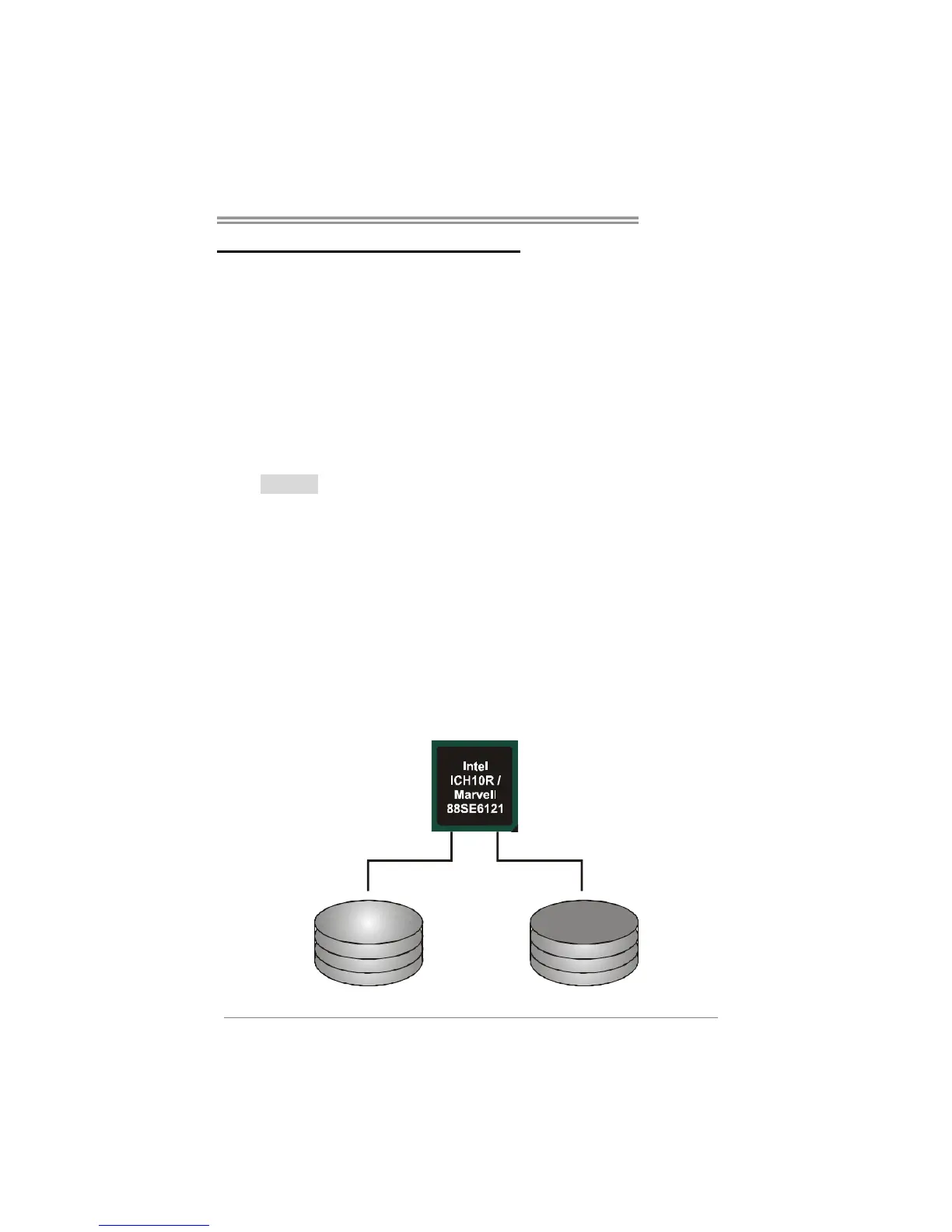

Block 1
Block 3
Block 5
Block 2
Block 4
Block 6

Biostar TPower I45 Specifications

General

Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron Dual-Core, Intel Pentium Dual-Core
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	-
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard form factor	ATX
Compatible operating systems	Windows 2000/XP/Vista
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
